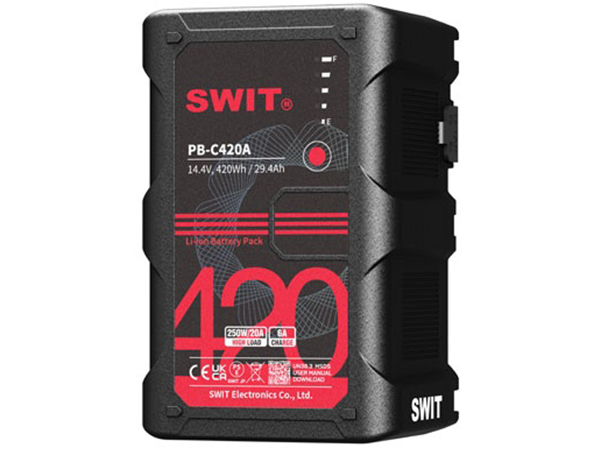

SWIT PB-C420A 420Wh Large Capacity Gold Mount Battery

Code: SWI/PB-C420A
$1,010.00

The PB-C420A reaches the world’s largest capacity: 420Wh of handheld V-mount battery, long time power supply for cameras, monitors, lights and many power hungry devices of broadcast and film industry.

Add to Cart

This item is already in your cart, click here to update quantities.

ENQUIRE NOW

Got a question about this product?
Send us a message

Low Stock

Limited Stock - Call for availability

The PB-C420A offers an industry-leading 420Wh capacity in a handheld V-mount battery, providing long-lasting power for cameras, monitors, lights, and other power-hungry devices used in the broadcast and film industry.

14.4V | 420Wh | Dual D-Tap Outputs

The PB-C420A is built with 24 high-quality Li-ion cells, delivering a 14.4V nominal voltage, 420Wh capacity, and 29.4Ah of power. It features two D-Tap outputs, conveniently located on both the left and right sides, allowing seamless power distribution to camera-top accessories.

250W Constant High Load

Designed for demanding cinema applications, the PB-C420A supports a continuous high load of 250W/20A, even at just 1% remaining capacity (with a peak load of up to 305W). This ensures stable power delivery for high-wattage cine cameras and on-camera devices. Additionally, the use of high-load cells enhances battery longevity compared to standard batteries when operating under full-load conditions.

100W / 6A Fast Charging

The PB-C420A supports 100W / 6A fast charging, reducing charging time by over 50%. It can be charged from 0% to 80% in just 3.9 hours and fully charged within 5.3 hours.

Reliable SWIT Quality & Advanced Protection

Built with SWIT’s trusted battery management system, the PB-C420A incorporates multiple safety protections, actively detecting and preventing potential issues such as:

  • Overload
  • Overcharging & over-discharging
  • High temperature
  • Short circuit

With SWIT's proven reliability, the PB-C420A is a trusted power solution for professional filmmakers and broadcasters.

Specifications
Nominal Voltage 14.4V
Capacity 420Wh/29.4Ah
Power Load 250W / 20A constant, 305W peak
Charging DC 16.8V, 6A
D-tap 2x D-tap 150W/10A in total
Mount Type Gold mount
Charging Temperature 0-40°C
Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
Net weight Net 2.07kg; With package2.15kg
Dimensions 155×101×83mm
