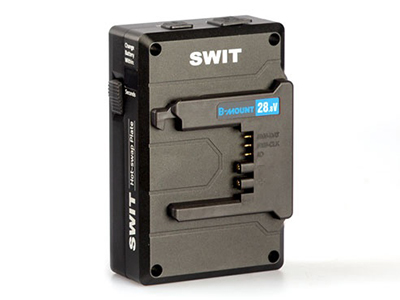

SWIT KA-B30B B-Mount To B-Mount Hotswap Plate

Code: SWI/KA-B30B
$1,155.00

The Swit KA-B30B is a B-mount is an extended plate with battery cells inside, and when changing batteries, the plate will take over the power supply until a new battery is mounted.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when SWIT KA-B30B B-Mount To B-Mount Hotswap Plate is back in stock.

B-mount Hot-swap Plate

The Swit KA-B30B is a B-mount is an extended plate with battery cells inside, and when changing batteries, the plate will take over the power supply until a new battery is mounted.

120 Seconds Countdown Display

The hotswap plate provides an LCD screen to display countdown seconds when changing battery. When battery is removed, the screen will countdown from 120s. You just need to put on a new battery before it count down to 0. The new battery will charge the hotswap plate as well. You can see the countdown seconds will go back to 120s after a period of time. The inner cells will ensure at least 120 seconds at 200W high load even after 500 times cycle.

32Wh, 28V, 200W High Load

KA-B30B has 32Wh battery cells inside, provide 200W constant high load for cine cameras and all camera-top devices. The plate supports 22-33.6V B-mount battery, and power camera at 22-33.6V. When B-mount battery is removed, the inner cells provide regulated 28V to power camera.

Power Interfaces

KA-B30B provides: 1x 2-pin LEMO Reg. 14V 5A 70W out 2x D-tap Reg. 14V 5A 70W (each) out 1x USB-A 5V/2A output 1x 8-pin 22-33.6V DC input (For power station hotswap)

ARRI ALEXA35 Match

KA-B30B matches with ARRI ALEXA35 perfectly to provide uninterrupted power, and will work with all the future ARRI cameras/lights with B-mount battery plate.

Key Features

  • 22-33.6V B-mount battery hotswap
  • 28V, 32Wh 3Ah battery cells inside
  • 200W constant high load
  • At least 2 minutes run time
  • 120 seconds countdown display
  • 2x D-tap regulated 14V output
  • 1x 2-pin LEMO regulated 14V output
  • USB 5V/2A x1 power output
  • 22-33.6V 8-pin input for power station hotswap
  • Aluminum CNC unibody housing
  • Multiple circuit protections
  • Specifications
    Inner battery voltage 28V regulated
    Inner battery capacity 32Wh/3Ah
    Power load 200W constant high load
    B-mount power out Attach battery: 22-33.6V to camera Remove battery: 28V / 200W to camera
    D-tap output x2 14V regulated, 70W
    2-pin LEMO output 14V regulated, 70W
    USB-A output 5V, 10W/2A
    8-pin LEMO input 22-33.6V
    Dimensions 93×143×50.2mm
    Net weight 749.6g
