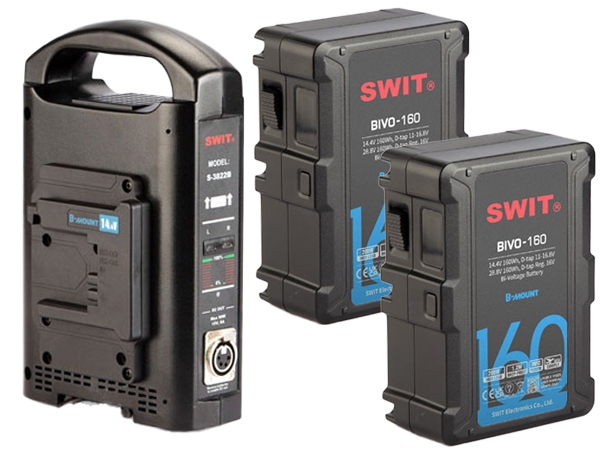

SWIT BIVO-160 160Wh Bi-voltage B-mount Fast Charge Battery Bundle

Code: BUN/SBB24

On Sale!

$1,500.00
$1,570.00
12% Savings

The BIVO-160 is a bi-voltage B-mount battery designed for ARRI cameras and various other compatible regular voltage cameras and cine gear.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when SWIT BIVO-160 160Wh Bi-voltage B-mount Fast Charge Battery Bundle is back in stock.

What's In The Box?

  • 2x SWI/BIVO-160 160Wh Batteries
  • 1x SWI/S-3822B Charger
  • The BIVO-160 is a bi-voltage B-mount battery designed for ARRI cameras and various other compatible regular voltage cameras and cine gear. It offers 14.4V (10.8-16.8V) and 28.8V (22-33.6V) bi-voltage, and recognizes the ID pin resistor value of the B-mount plate to output 14.4V or 28.8V, without any misuse risks.

    160Wh Capacity, 200W Load

    The BIVO-160 battery has a 160Wh large capacity and can run for nearly 2 hours on the ARRI ALEXA 35 camera. Each passenger is allowed to carry up to 2 pieces to board an airplane. The battery can provide at least 200W constant high load for cine cameras and devices.

    2x D-tap Power Output

    The BIVO-160 provides 2x D-tap power sockets. When the battery works at 14.4V voltage, the D-tap outputs 11-16.8V. When the battery works at 28.8V voltage, the D-tap output is regulated at 16V, to power all kinds of camera-top devices.

    BIVO Series Family

    The BIVO series bi-voltage B-mount battery family has 98Wh, 160Wh, 196Wh, 290Wh in different sizes and capacities, for stabilizer handheld lightweight or long time power selection.

    OLED Power Info Display

    The BIVO-160 battery provides an OLED screen to display battery status and power information, including output voltage, power percentage, remaining running time, and protection warning code if any abnormality is detected.

    100W Super Fast Charging

    You can charge 4x BIVO-160 batteries simultaneously on the SWIT PC-P461B B-mount charger at 33.6V 3A, with 100W super-fast charging. The charger will take approximately 2 hours and 40 minutes to fully charge 4x BIVO-160 batteries.

    LED Torch

    You can double-press the Power Check button to switch on the LED torch on the rear side of the battery to help you find the B-mount plate in a dark production environment. Double-press the Power Check button again to switch the light off, and it will be automatically switched off after 30 seconds.

    1.2 Meters Drop-off Proof

    The BIVO-160 battery can survive a 1.2-meter drop-off at any angle, making it strong and reliable for filmmakers.

    SWIT S-3822B 2ch B-Mount Simultaneous Fast Charger

    The S-3822B is a portable 2-ch simultaneous charger for B-mount batteries. The charging output is DC 16.8V, 3A, 50W each channel.


    Key Features

    • 2-ch simultaneous charging
    • DC 16.8V 3A 50W per channel
    • Charge B-mount batteries with 14.4V mode
    • Charge SWIT BIVO B-mount batteries
    • Charge Bebob and Core B-mount batteries
    • Support AC to 4-pin XLR output
    • Light weight and portable

    14.4V Charging Mode

    The S-3822B charges B-mount batteries at DC16.8V, compatible with the B-mount batteries that support 14.4V nominal voltage mode, like SWIT BIVO series, Bebob and CoreSWX Bi-voltage series.


    LED Charging Indicators

    S-3822B has LED charging indicators on the front panel, indicates the real time capacity of each channel by different colors:

    Red:

    the battery is under charging status

    Green:

    the battery is fully charged

    Red flash:

    Charging error, please check the battery


    AC-DC Adapting Output

    S-3822B has a 4-pin XLR female connector on the front panel. Connected with SWIT S-7102 4-pin XLR female to male cable (optional purchase), you can use the charger as AC-DC adaptor of DC 15V, 6A, 90W output.

    Battery
    Voltage 28.8V (21.6-33.6V) & 14.4V (10.8-16.8V)
    Capacity 160Wh
    Constant load (28.8V) 200W, 8A; (14.4V) 200W, 16A
    Charging 33.6V 100W fast charging
    Mount Type B-mount
    D-tap ×2 14.4V status: 10.8-16.8V out, 200W load
    28.8V status: 16V regulated out, 50W load
    Charging Temperature 0-40°C
    Discharging Temperature -20°C-50°C (Capacity and Max Load may decrease when operating below 0°)
    Net weight Net 1.1kg; With package1.15kg
    Dimensions 144×100×54mm
    Charger
    Input 100~240VA, 50/60Hz
    Power consumption Max 136W
    Charging output DC 16.8V, 3A×2-ch
    Adapting output DC 15V, 6A
    Working tmperature 0°C~+40°C
    Working humidity 10%~90%
    Dimensions 228mm×140mm×120mm
    Net weight Net 1.0kg; With package 1.45k
