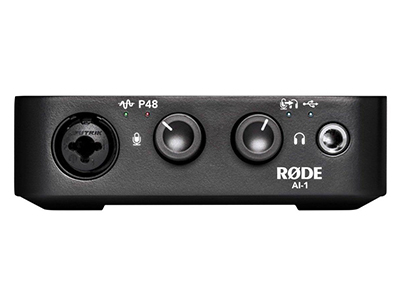

Rode Ai-1 USB Audio Interface

Item Code: ROD/AI1

Single channel Audio Interface with combo XLR/instrument input, headphone amp and balanced 1/4" outputs.

RRP: 180.9100   Save:

For purchasing information

The perfect first step into home recording

RØDE’s AI-1 Audio Interface is stacked with incredible technology to ensure recording on your computer is easy, versatile and sounds superb. The Complete Studio Kit comes with the AI-1, RØDE’s peerless NT1 large diaphragm condenser microphone, a shock mount and all cables.

Superior Headphone Amplifier onboard

Not only does the AI-1 deliver crystal clear audio to your computer software, but headphones have never sounded sweeter thanks to the discrete studio-quality headphone output and level control.

Inputs

The AI-1’s single input is a Neutrik Combo Jack, which takes both a 3-pole XLR (common to most microphones) and a quarter-inch jack common to most electric instruments like guitar, bass et al. Layering tracks is as easy as plug in, set level and go.

No cords barred

The Complete Studio Kit comes with the RØDE NT1 studio condenser microphone, a shock mount, pop-shield, RØDE XLR cable and USB-C/A cables to transfer data from your AI-1 to your computer, and power – including 48V phantom power to your AI-1.

Specifications

Computer Connectivity USB
Form Factor Desktop
Simultaneous I/O 1 x 2
Number of Preamps 1
Phantom Power Yes
Bit Depth 24-bit
Sample Rates 44.1 kHz
48 kHz
88.2 kHz
96 kHz
Analog Inputs 1 x  Neutrik XLR-1/4” combo
Analog Outputs 2 x 1/4” (impedance balanced)
1 x 1/4” (headphones)
Direct Monitor Yes
USB 1 x USB Type C
Bus Powered Yes
OS Requirements Mac OS 10.10 or later
Windows 7 or later
Power USB bus-powered
Depth 100mm total (with knobs)
chassis: 88mm
Width 124mm
Height 38mm
Weight 1lb 3.7oz
560g

XLR/MIC INPUT

Dynamic Range 104dBA
Equivalent Input Noise @ Maximum Gain (Source Impedance 150 ohms, 20Hz-20kHz, A-weighted) –128dBA
Frequency Response (Measured after ADC) 20Hz – 20kHz better than ±1dB
Gain Range 0dB – >45dB
Input Impedance 1.3k Ohms

INSTRUMENT INPUT

Dynamic Range 99dBA
Frequency Response (Measured after ADC) 20Hz – 20kHz better than ±1dB
Gain Range 0dB – >45dB
Input Impedance 900k Ohms

MONITOR OUTPUTS

Maximum Output Level -6dBu
Frequency Response 20Hz – 20kHz better than ±1dB

HEADPHONE

Max output power at 1% THD 32Ohms – >210mW
300Ohms – >390mW
