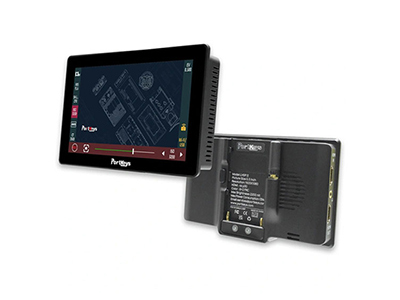

PortKeys LH5P II 5.5-inch 4K HDMI Touchscreen Monitor w/ Camera Control

Name: PortKeys LH5P II 5.5-inch 4K HDMI Touchscreen Monitor w/ Camera Control
Brand: Portkeys
SKU: BLO/PK-LH5P-II
Price: 690.9090 AUD
Availability: OutOfStock

Code: BLO/PK-LH5P-II

$760.00

The Portkeys LH5P II is the most affordable 5.5-inch Wide Color Gamut on-camera monitor with a stunning maximum brightness of 2,200nits and wired/wireless camera control capabilities.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Special Order Item

Usually ships in 2-4 weeks

Request ETA

Overview
Specifications

What's In The Box?

1x LH5P II Monitor

1x Power Cord (Aviation Port to DC)

2x 2.4 Straight Head Antenna

1x LANC Control Cable

1x Type-C Control Cable

1x Warm Prompt Card

1x Safety Box

1x U Disk

1x After Sales Service Card

The Portkeys LH5P II is the most affordable 5.5-inch Wide Color Gamut on-camera monitor with a stunning maximum brightness of 2,200nits and wired/wireless camera control capabilities. This HDMI-only monitor features a rugged and durable design entirely made of aluminum with a complete set of professional monitoring tools ready for your next creative adventures.

Key features

5.5-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
Daylight-viewable with a maximum brightness of 2,200nits.
1 x HDMI input, 1 x HDMI output, 1 x 3.5mm audio output.
Maximum input resolution: 4K DCI at 24p or 4K UHD at 30p.
Professional monitoring tools: Waveform, Vectorscope, Peaking, ARRI False Color.
3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
Wireless camera control for most Sony and Blackmagic Design cameras.
Touchscreen autofocus (wireless) feature is available for select Sony cameras, including the FX3, a7S III, and A7C.
Wired camera control for Sony, Canon, Panasonic, BMD, and ZCAM E2.
TILTA Nucleus N/M wireless follow focus wired control.
Built-in Sony NP-F style battery plate.
5-pin 7.4V-24V power input for external power .
Lightweight and rugged aluminum housing: only 285g/10.05oz.

Specifications
Screen Size	5.5″
Dimension	1449030.8mm
Viewing Angle	178°H/178°V
Brightness	2200nit
Resolution	1920*1080
Contrast Ratio	1000:1
Weight	285g
Color Depth	10bit(8+2 FRC)
Maximum Power	13W
Material	Aluminum alloy + Toughened glass
Input Voltage	DC 7-24V
Output Voltage	4pin Aviation Connector OUT 7.4V(NPF)
Video Signal Input	4K HDMI
Video Signal Output	4K HDMI
Support Barrery Model	SONY NP-F970/F960/F750/F550
5pin Aviation Power Input	Available 7-24V power supply or NPF
5pin Aviation Power Output	Can output 5V1A voltage to power other devices
Audio Output	3.5mm Headphone Jack
USB-A	Firmware Update / 3D LUT
Fan	Yes
