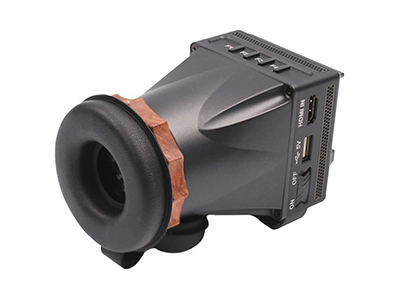

PortKeys LEYE-SDI Electonic Viewfinder w/ SDI - 2.4-inch screen

Code: BLO/PK-LEYE-SDI
$1,085.00

The Portkeys LEYE is a versatile Electronic Viewfinder that features both 4K HDMI and FullHD 1080p 3G-SDI video inputs, all in a compact and lightweight package that can be powered externally or via a single Canon LP-E6 battery.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when PortKeys LEYE-SDI Electonic Viewfinder w/ SDI - 2.4-inch screen is back in stock.

What's In The Box?

  • 1x LEYE SDI
  • 1x U Disk
  • 1x D-TAP to 4-pin Aviation Power Cable
  • 1x Warm Prompt Card
  • 1x Round Eye Cushion
  • 1x After-sales Service Card
  • 1x HDMI Adaptor
  • The Portkeys LEYE is a versatile Electronic Viewfinder that features both 4K HDMI and FullHD 1080p 3G-SDI video inputs, all in a compact and lightweight package that can be powered externally or via a single Canon LP-E6 battery. This EVF features a 2.4″ LCD screen with a 1440 x 900 resolution, making it the perfect EVF for mirrorless cameras, while its SDI input makes it a versatile tool so that you can use it on a wide variety of other cameras.

    Key features

    • Compact size: 125 x 70 x 78mm / 4.92 x 2.75 x 3.07in.
    • Lightweight and rugged housing: only 265g/9.34oz.
    • 2.4-inch, 8-bit panel with a 1440 x 900 resolution and 1100:1 contrast ratio.
    • Maximum brightness of 450nits.
    • 1 x 4K HDMI input, 1 x 3G-SDI input., 1 x 3.5mm audio output.
    • Adjustable Red Oak diopter ring with a -3 to +8 diopter range.
    • Professional monitoring tools: Waveform, Histogram, Vectorscope, Peaking, False Color.
    • 3D LUT monitoring. Monitoring tools can be set before or after the 3D LUT.
    • Built-in Canon LP-E6 battery plate.
    • 4-pin 7.4V-24V power input for external power (D-Tap cable included)
    • Low power draw: only 5W.
    • Multiple 1/4″-20 mounting points with locating pins and built-in NATO rail.
    Specifications
    Screen Size 125*70*78mm
    HDMI 4K30P
    3G-SDI 1080P
    Operating power 5W
    Weight 265g
