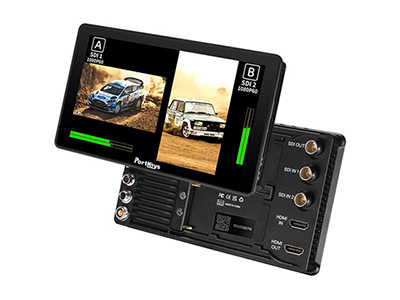

PortKeys BM7 II DS 7" Wireless Camera Control Monitor

Code: BLO/PK-BM7II-DS

On Sale!

$1,527.27

$1,512.00

The Portkeys BM7 II DS is a rugged 7-inch touchscreen monitor and an evolution based on the worldwide success of the BM5 III WR.

Add to Cart

Found this item cheaper elsewhere? Let us know

ENQUIRE NOW

Special Order Item

Usually ships in 2-4 weeks

Request ETA

Overview
Specifications

What's In The Box?

1x BM7 II DS Monitor

1x Screw-in DC Power Cable

1x Safety Box

1x Micro USB Flash Drive

1x Y-Type Wrench

The Portkeys BM7 II DS is a rugged 7-inch touchscreen monitor and an evolution based on the worldwide success of the BM5 III WR. This monitor features a maximum brightness of 2,200nits, HDMI input/output ports, two SDI inputs and one SDI output with HDMI cross conversion, and wired/wireless camera control capabilities.

Key features

7-inch, 10-bit panel with a resolution of 1920 x 1080 and a 1000:1 contrast ratio.
Daylight viewable with a maximum brightness of 2,200nits.
Factory color-calibrated: 100% coverage of Rec.709 and 85% coverage of DCI-P3.
2 x 3G-SDI input, 1 x HDMI input, 1 x HDMI output, 1 x 3G-SDI output with cross-conversion.
Split screen monitoring, you can monitor two video inputs simultaneously.
Professional monitoring tools: Waveform, Vectorscope, Anamorphic, Peaking, ARRI False Color.
3D LUT monitoring and 3D LUT SDI output capabilities.
RED Approved: wireless camera control for the RED Komodo and V-RAPTOR.
Wireless camera control for most Sony and Blackmagic Design cameras.
Wired camera control for RED, Sony, Canon, Panasonic, BMD, and ZCAM E2.
TILTA Nucleus N/M wireless follow focus wired control.
Built-in dual Sony NP-F style battery plates.
Industry-standard 2-pin LEMO and 5.5mm barrel connector 7.4V-24V power inputs for external power (D-Tap cable included).
Rugged all-aluminum housing: only 460g/16.2oz.
Custom JPG picture custom freeze frame.

Specifications
Screen Size	7″
Dimension	179.3106.831mm
Viewing Angle	85/85/85/85
Brightness	2200nit
Resolution	1920*1080
Contrast Ratio	1000:1
Weight	460g
Color Gamut	85% P3
Maximum Power	15W
Antenna	2.4G
Fan	Yes
Material	Aluminum Alloy
Video Signal Input	3G SDIx2、HDMI
Video Signal Output	3G SDI、HDMI
Signal Conversion	HDMI to SDI HD Output
Camera Control Port	Focus Puller / CAMERA REMOTE
Input Voltage	7-24V
Support Battery Model	SONY NP-F970/F960/F750/F550
USB-A	Firmware Update / 3D LUT
Power Input / Output	2 Pin LEMO/DC 5.5*2.1
Audio Output	3.5mm Headphone Jack
