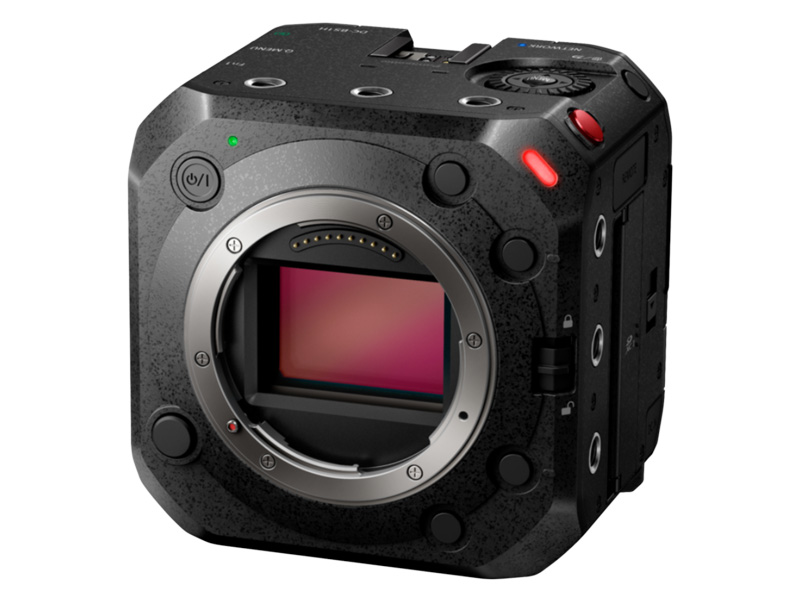

Panasonic Lumix DC-BS1H Full-Frame Box Camera (Body Only)

Code: GEC/DC-BS1H

Full-frame Box-Style Mirrorless Live & Cinema camera featuring compact body with 6K 24p / 5.9K 30p 10-bit unlimited video recording capability.

For purchasing information

Enquire Now

Box-Style Live & Cinema Full-frame Camera

A full-frame sensor and 6K 24p video recording performance condensed in a surprisingly compact box-style for everything from live streaming to multi-camera control and shooting using a gimbal or drone. A device that will innovate the video production workflow.

24.2MP full-frame sensor with Dual Native ISO technology

The 24.2-megapixel full-frame CMOS sensor delivers high sensitivity and top image quality in both still photos and videos. Dual Native ISO technology further enhances video performance.

6K video recording performance and multiple recording modes

Equipped with 6K 24p 4:2:0 10-bit (3:2) and 5.9K 30p/25p/24p 4:2:0 10-bit in addition to C4K/4K 60p/50p* 4:2:0 10-bit, C4K/4K 30p/25p/24p 4:2:2 10-bit and anamorphic 4K recording. Meets the diverse video production needs of professionals with a wide array of recording modes.

*In S35mm and PIXEL/PIXEL settings.

Heat management = unlimited recording

The LUMIX BS1H realizes unlimited video recording in all modes. The rise in the camera’s temperature can be suppressed with the cooling fan and can be used for an unlimited time within the guaranteed operating temperature range.

Flexible expandability with wired LAN connection

  • Remote control with LUMIX Tether for Multicam enabled by Ethernet cable.
  • Ethernet / PoE+ compatible camera
  • IP streaming with PC (RTP/RTSP protocol)
  • Simultaneous SDI/HDMI output
  • Genlock IN and Timecode IN/OUT

Simultaneous internal / external recording supported

Simultaneous 6K 24p 4:2:0 10-bit (3:2) / 5.9K 30p/25p/24p 4:2:0 10-bit (16:9) internal recording and 4K 4:2:2 10-bit HDMI Live Output external recording are supported.

RAW video data output

The LUMIX BS1H enables the output of maximum 29.97p 5.9K (5888x3312, 16:9) / 59.94p 4K (4128x2176, 17:9) and Anamorphic 3.5K (3536x2656, 4:3) 12-bit RAW video data over HDMI to save it as Apple ProRes RAW on the Atomos Ninja V 4K HDR monitor-recorder.* The Blackmagic RAW can also be recorded on Video Assist 12G HDR.**

*[Apple ProRes RAW] ï½¥Selectable recording mode depends on the firmware version of Atomos Ninja V. ï½¥Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V. ï½¥Software that supports Apple ProRes RAW is required to edit RAW video record ed with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ï½¥All functions may not be available depending on the situation.

**[Blackmagic RAW] ï½¥Selectable recording mode depends on the firmware version of Video Assist 12G HDR. ï½¥Please refer to the Blackmagic website for the information on the corresponding firmware version of the Video Assist 12G HDR. ï½¥DaVinci Resolve or DaVinci Resolve Studio is required to play back the Blackmagic RAW data. DaVinci Resolve Studio is required to edit the Blackmagic RAW data. ï½¥All functions may not be available depending on the situation.

**[Blackmagic RAW] ï½¥Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR. ï½¥Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR. ï½¥DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160. ï½¥All functions may not be available depending on the situation.

Imaging

Lens Mount Leica L
Interchangeable Lens Mount None
Lens Communication Yes
Sensor Resolution Effective: 24.2 Megapixel
Sensor Type 35.6 x 23.8 mm (Full-Frame) CMOS
Sensor Windowing 6K (5952 x 3968) in 3:2
5K (5888 x 3312) in 16:9
5K (5376 x 3584) in 3:2
4K (4096 x 2160) in 17:9
4K (3840 x 2160) in 16:9
1080p (1920 x 1080) in 16:9
Built-In ND Filter None
ISO Sensitivity 100 to 51,200 (Native)
80 to 204,800 (Expanded)
Shutter Type Rolling Shutter
Shutter Speed 1/16000 to 1/2 sec
Advertised Dynamic Range 14 Stops
White Balance 2500 to 10,000K

Internal Recording

Recording Modes H.265/H.265 Long GOP/MOV 4:2:2 10-Bit:
4096 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s)
3840 x 2160p at 23.98/25/29.97 fps (100 to 400 Mb/s)
3328 x 2496p at 23.98/24/25/29.97 fps (150 to 400 Mb/s)
1920 x 1080p at 23.98/29.97/59.94 fps (100 to 200 Mb/s)
1920 x 1080i at 50/59.94 fps (50 to 100 MB/s)
H.265/H.265 Long GOP/MOV 4:2:0 10-Bit:
5952 x 3968p at 23.98/24/25 fps (200 Mb/s)
5376 x 3584p at 25/29.97 fps (200 Mb/s)
5888 x 3312p at 23.98/25/29.97 fps (200 Mb/s)
4096 x 2160p at 23.98/24/29.97/48/50/59.94 fps (200 Mb/s)
H.265/H.265 Long GOP/MOV 4:2:0 10-Bit:
1920 x 1080p at 100/119.88 fps (150 Mb/s)
1920 x 1080p at 47.95/48 fps (100 Mb/s)
Variable Frame Rates DCI 4K: 2 to 60 fps
1080p: 2 to 180 fps
Gamma Curve Panasonic V-Gamut, Panasonic V-Log
Audio Recording MOV: 24-Bit 48 kHz LPCM Audio
MOV: 24-Bit 96 kHz LPCM Audio
MP4: 24-Bit 48 kHz LPCM Audio
MP4: 24-Bit 96 kHz LPCM Audio
Still Image Support None

External Recording

Video Output 4:2:2 10-Bit via HDMI:
4096 x 2160p at 24/25/30/50/60 fps
3840 x 2160p at 24/25/30/50/60 fps
3240 x 2160p at 24/25/30/50/60 fps
2880 x 2160p at 24/25/30/50/60 fps
1920 x 1080p at 24/25/30/50/60 fps
4:2:2 8-Bit via HDMI:
4096 x 2160p at 24/25/30/50/60 fps
3840 x 2160p at 24/25/30/50/60 fps
3240 x 2160p at 24/25/30/50/60 fps
2880 x 2160p at 24/25/30/50/60 fps
1920 x 2160p at 24/25/30/50/60 fps
4:2:2 10-Bit via SDI/BNC:
1920 x 1080p at 24/25/30/50/60 fps
1920 x 1012p at 24/25/30/50/60 fps
1620 x 1080p at 24/25/30/50/60 fps
1440 x 1080p at 24/25/30/50/60 fps
4:2:2 8-Bit via SDI/BNC:
1920 x 1080p at 24/25/30/50/60 fps
1920 x 1012p at 24/25/30/50/60 fps
1620 x 1080p at 24/25/30/50/60 fps
1440 x 1080p at 24/25/30/50/60 fps
Raw Output HDMI In Full Frame Mode:
5888 x 3312 12-Bit at 23.98/25/29.97 fps
HDMI In Super35 Mode:
4128 x 2176 12-Bit at 23.98/25/29.97/50/59.94 fps
3536 x 2656 12-Bit at 23.98/25/29.97/50 fps
IP Streaming RTP, RTSP: 1280 x 2160 to 3840 x 2160 at 25p, 29.97p, 50p, 59.94p (4.0 to 50.00 Mb/s)

Interface

Media/Memory Card Slot Dual Slot: SD/SDHC/SDXC (UHS-II) [V90 or Faster Recommended]
Video Connectors 1 x BNC (3G-SDI) Output
1 x HDMI (HDMI 2.0) Output
Audio Connectors 1 x 1/8" / 3.5 mm Stereo Mic/Line Level Input on Camera Body
1 x 1/8" / 3.5 mm Stereo Headphone Output on Camera Body
Built-In Microphone Type Stereo
Other I/O 1 x USB Type-C Camera Interface, USB 3.1 Gen 1 Data, Control, Video Input
1 x BNC Timecode Data Input/Output
1 x BNC Genlock Data Input/Output
1 x RJ45 LAN Control, Monitor, Video Input/Output
1 x 2.5 mm LANC Control Input
Wireless Interfaces 2.4 GHz Wi-Fi 4 (802.11n), Wi-Fi (802.11b/g), Bluetooth Video Output, Control
EVF Optional, Not Included

Power

Battery Type Panasonic AG-VBR Series
Power Connectors 1 x Weipu SF610/S2 (12 VDC) Input
PoE Support PoE+ 802.3at

Environmental

Operating Temperature 14 to 104°F / -10 to 40°C
Operating Humidity 10 to 80%

Physical

Tripod Mounting Thread 2 x 3/8"-16 Female (Bottom)
Material of Construction Aluminum
Accessory Mount 9 x 3/8"-16 Female
1 x Hot Shoe Mount
Dimensions 3.7 x 3.7 x 3.1" / 9.3 x 9.3 x 7.8 cm (Without Protrusions)
Weight 1.3 lb / 585 g
