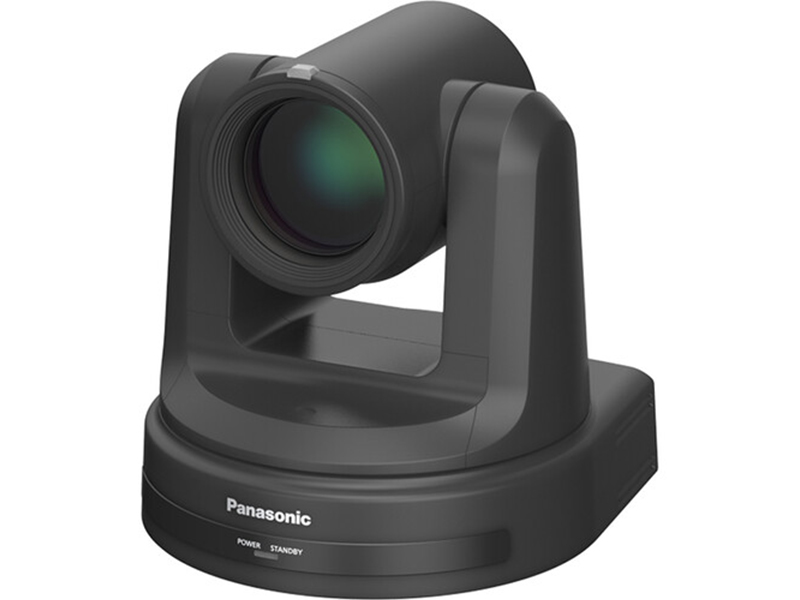

Panasonic AW-UE20 4K 3G-SDI/HDMI/IP/USB PTZ Camera w/ 12x Optical Zoom (Black)

Code: GEC/AW-UE20KE
$3,205.00

The black AW-UE20 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom from Panasonic provides a variety of options for your conference room, house of worship, or education locations that require high-quality 4K30 video output and recording.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 1-2 weeks

Request ETA

The black AW-UE20 3G-SDI/HDMI/IP/USB PTZ Camera with 12x Optical Zoom from Panasonic provides a variety of options for your conference room, house of worship, or education locations that require high-quality 4K30 video output and recording. The camera features a 1/2.8" MOS sensor, 4K30 HDMI and IP streaming output, 1080p 3G-SDI output, USB webcam output, mic/line audio input, and serial control. When connected to the Internet, this IP camera allows you to control PTZ actions and monitor the surveillance area from a remote location via a web browser.

Equipped with a 3.9 to 46.8mm zoom lens and 12x optical zoom, this PTZ camera enables you to zoom in on activity in the monitoring area for a closer look. Other features include auto white balance, RS-232/RS-422 serial control, LAN control, UVC communication via USB, 170° panning range, -30 to 90° tilt range, H.265/H.264/MJPEG video compression, and RTSP/RTMP streaming. The camera also supports mic and line audio input, allowing you to capture and embed audio within the video signal. It is also PoE+ compatible, allowing you to power the unit using only a single LAN cable rather than adding additional power adapter cables.

Key Features

  • 1/2.8" MOS sensor with 12x optical zoom
  • Video output up to 4K30 via HDMI and IP, and up to 1080p60 via 3G-SDI and USB for a reliable live video production workflow
  • Supports PoE+ (Power-over-Ethernet+) for lower installation costs
  • Can be used as a webcam via USB and UVC communication
  • Remote control and monitoring via web browser from PC, smartphone, or tablet
  • Audio input, embedding, encoding, and IP output via H.264/H.265/MJPEG
  • Compatible with existing FEC-40 wall mounts
Specifications
Image Sensor
1/2.8"-Type MOS
Sensor Resolution
Effective: 8.46 Megapixel
Shutter Speed
1/16000 to 1 Second
Optical Zoom Ratio
12x
Max Digital Zoom
4x
External Recording Modes
SDI/BNC / USB
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
4:4:4 8-Bit via HDMI
3840 x 2160 at 25/29.97 fps
1920 x 1080p at 25/29.97/50/59.94 fps
1920 x 1080i at 50/59.94 fps
1280 x 720 at 50/59.94 fps
Broadcast Output
NTSC/PAL
IP Streaming
H.264/MJPEG/H.265 via UDP/TCP/RTSP/RTP/RTMPS/RTMP
3840 x 2160 at 5.00p, 29.97p, 25p, 14.99p, 10p
640 x 360 to 1920 x 1080 at 5.00p, 29.97p, 25p, 59.94p, 14.99p, 50p, 10p
Supported Control Protocols
IP
RS-232
RS-422
PoE Support
PoE+ 802.3at
Mounting
4x M4 Female for Bracket/Ceiling
