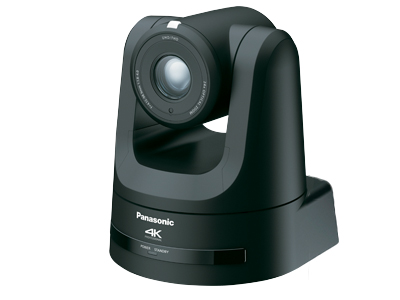

Panasonic AW-UE100 UHD Remote Camera with NDI

Code:

4K 60p/50p PTZ Camera that supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT

For purchasing information

Enquire Now

Overview
Specifications

First 4K 60p/50p PTZ Camera supporting NDI and SRT in the world

Supports high bandwidth NDI for low latency transmission of high-quality 4K 60p/50p video, and SRT for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production.

Supports a wide variety of IP transmission protocols, including NDI, NDI|HX, and SRT

THigh bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX is also included to enable video transmission at low bitrates. SRT is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.

Supports 4K 60p/50p shooting and 12G-SDI output

Supports 4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP.

Includes a wide-angle lens with a 74.1° field of view and 24x optical zoom

A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.

Supports FreeD for building AR/VR systems

FreeD command output enables connection with AR/VR systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.

Adopts new mechanical pan/tilt for improved responsiveness and quietness

The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.

General
Power Requirements	Main unit: DC 12 V±10% (10.8 V to 13.2 V), AC adaptor: AC 100 V to 240 V
PoE++	Complies with IEEE802.3bt: DC 42 V to 57 V (camera end) (supports software authentication (LLDP communication))
Current Consumption	Main unit: 3.0 A (DC jack input), 1.2 A (PoE++ power supply), AC adaptor (included): 3.0 A
Weight	Approx. 2.2 kg (4.85lbs) (excluding cable cover, direct ceiling mount bracket) Approx. 2.3 kg (5.07lbs) (excluding direct ceiling mount bracket)
Dimensions	169.2 mm x 170.6 mm x 204.6 mm (6.66 inches x 6.72 inches x 8.06 inches) (excluding protrusions, cable cover, and direct ceiling mount bracket)
Camera Unit
Image Sensor	1/2.5-type 4K MOS x 1
Lens	Electric powered 24x optical zoom F1.8 to F4.0 (f = 4.12 mm to 98.9 mm, converted to 35 mm: 25.0 mm to 600.0 mm) i.Zoom (UHD: 28x, FHD: 36x) (*switches from optical 24x i.Zoom digital zoom)
Field of View Range	Horizontal field of view: 74.1° (wide) to 3.3° (tele), vertical field of view: 46.0° (wide) to 1.9° (tele), diagonal field of view: 81.8° (wide) to 3.8° (tele)
Horizontal Resolution	1,400 TV lines Typ (center area)
Output Formats	[4K formats] 2160/59.94p, 2160/50p, 2160/29.97p (native), 2160/25p (native), 2160/24p (native), 2160/23.98p (native) [HD formats] 1080/59.94p, 1080/50p, 1080/29.97p (native), 1080/29.97PsF, 1080/25p (native), 1080/25PsF, 1080/23.98p over 59.94i, 1080/24p (native), 1080/23.98p (native), 1080/23.98PsF, 1080/59.94i, 1080/50i, 720/59.94p, 720/50p
Output
HDMI	HDMI 2.0 connector
HDMI	4:2:2/10 bit¹²
12G-SDI OUT	SMPTE2082-1, SMPTE292 compliant/75 Ω (BNC x 1)*³
3G-SDI OUT	SMPTE292/75 Ω (BNC x 1)*³
Input/Output
LAN	LAN for IP control and video transmission/PoE++ terminal (RJ-45)
RS-422	CONTROL IN RS422A (RJ-45)
Mic/Line Input	Supported (SDI/HDMI/IP), AAC compatible (IP only) Ø3.5 mm stereo mini jack ■ For mic input, input level: -40 dBV (0 dB = 1 V/Pa, 1 kHz) plug-in power compatible, supply voltage: 2.5 V ±0.5 V ■ For line input, input level: -10 dBV ■ Input volume variable range: -36 dB to 12 dB (3 dB step) ■ embedded audio output level: -12 dBFS ■ Sampling frequency: 48 kHz ■ Quantified bit count: 24bit (SDI, HDMI), 16bit (IP)
Pan Tilt Head Unit
Panning Range	±175°
Tilting Range	-30° to 210°*⁴
IP Streaming
Video Compression Format	JPEG (MJPEG), H.264, H.265, NDI\|HX, High bandwidth NDI
Resolution	3840 x 2160, 1920 x 1080, 1280 x 720, 640 x 360, 320 x 180
New Functions
NDI Support	NDI, NDI\|HX: Included as standard⁵⁶
Mechanical Pan/Tilt	Direct Drive system
