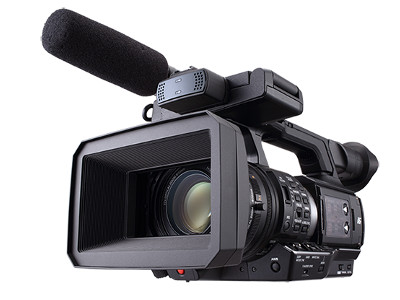

Panasonic AJ-PX270EN AVC-ULTRA Handheld Camcorder

Code: GEC/AJ-PX270EN

Product Replacement

Panasonic AG-CX350 4K Handheld Camcorder >>

NO LONGER AVAILABLE

The AJ-PX270 is the first P2 HD handheld camera recorder with AVC-ULTRA recording and built-in microP2 card slots. In addition to the established AVC-Intra100, it has AVC-LongG for extended recording and AVC-Intra200^*2for master level recording. AVC-LongG25 enables extended 1920 x 1080 10 bit 4:2:2 broadcast-quality recording (four times longer than AVC-Intra100). A newly designed, built-in, compact 22x zoom lens covers a wide range from 28 mm to 616 mm. Three lens rings (Cam-Type Zoom, Focus, Iris) provide comfortable manual control similar to interchangeable lenses. The newly developed high-sensitivity and low-noise 1/3 type 3MOS sensors produce superb image, even in dim light.

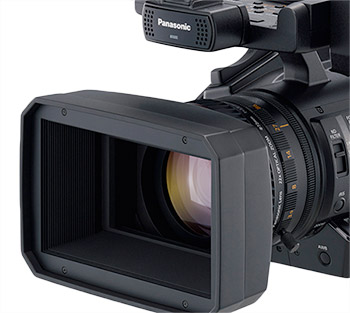

New 22x Zoom Lens and 3MOS Image Sensors

A newly designed*, compact, 22x zoom lens covers from wide 28 mm to tele 616 mm (35mm equivalent); three manual operation lens rings — zoom, focus and iris; new 1/3 type 3MOS image sensors achieve high sensitivity, low noise and 1920 x 1080 Full-HD resolution.
^{*Specifications and design are subject to change without notice.}

Wide Range of Recording Bit Rates

AVC-LongG50/25 and AVC-Intra100/50 codecs are provided as standard features. AVC-LongG50/25 codecs achieve 10 bit/4:2:2 image quality at a data rate of approximately 50/25 Mbps; optional AVC-Intra200 codec for visually lossless images that approach uncompressed master quality; low-bit-rate AVC-Proxy^*1 for network use.^{*1: Option}

Two microP2 Card Slots

Two microP2 card slots enable the ultimate cost-effective operation. The microP2 card, with the same reliability as the P2 card, can be used without an adapter; simultaneous recording enables safe, secure backup recording onto two media cards.

Network Function with Wireless Connection^*3

The network function speeds up the broadcasting workflow from shooting to on-air transmission; an optional wireless module allows wireless LAN connection for tablet*⁴ or smartphone*⁴ linking; a 3G/4G/LTE dongle is scheduled for use in the near future.
^{*3: Option

*4: For the latest information, see "Service and Support" on the Panasonic Professional AV website.}

Video

Specifications

General	Safety items	Power	DC 7.2 V (when the battery is used) DC 12 V (when the AC adaptor is used)
	Safety items	Power consumption	19.5 W (when the LCD monitor is used)
	Ambient operating temperature		0°C - 40°C (32°F - 104°F)
	Ambient operating humidity		10% - 80% (no condensation)
	Weight		Approx. 2.2 k] (4.9 lbs.) (body only, excluding lens hood, battery, and accessories) Approx. 2.6 k] (5.7 lbs.) (including lens hood, supplied battery, and microphone holder)
	Dimensions (W×H×D)		Body only 176 mm×171 mm×329 mm (6-15/16 inches×6-23/32 inches×12-15/16 inches) (excluding protrusion)
Camera unit		Pickup device	1/3-type 2.2 million pixels, MOS solid state image sensor ×3
		Lens	Optical image stabilizer lens, optical 22x motorized zoom F1.6 - F3.2 (f=3.9 mm - 86 mm) 35 mm conversion: 28 mm - 616 mm (16:9)
		Filter diameter	72 mm
		Color separation optical system	Prism system
		ND filter	OFF, 1/4, 1/16, 1/64
		Shortest shooting distance (M.O.D)	1.1 m from the lens
		Gain setting	L/M/H selector switch −3 dB – 18 dB (in 1 dB steps) (Negative value of gain is only in [HIGH SENS.] mode.) (When assigning [S.GAIN] to the USER button: Switching between 24 dB, 30 dB, and 36 dB)
		Color temperature setting	[ATW], [ATW LOCK], [Ach], [Bch], preset 3200 K/preset 5600 K/VAR (2000 K to 15000 K)
		Shutter speed	When [SYSTEM MODE] = 59.94 Hz • 60i/60p mode: 1/60 (shutter off), 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec. • 30p mode: 1/30, 1/50 (shutter off), 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec. • 24p mode: 1/24, 1/50 (shutter off), 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec. When [SYSTEM MODE] = 50 Hz • 50i/50p mode: 1/50 (shutter off), 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec. • 25p mode: 1/25, 1/50 (shutter off), 1/60, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec.
		Slow shutter speed	Setting is possible when [VFR]=[OFF] When [SYSTEM MODE] = 59.94 Hz • 60i/60p mode: 1/1, 1/2, 1/4, 1/6, 1/15, 1/30 sec. • 30p mode: 1/1, 1/2, 1/4, 1/6, 1/15 sec. • 24p mode: 1/1, 1/2, 1/4, 1/6, 1/12 sec. When [SYSTEM MODE] = 50 Hz • 50i/50p mode: 1/1, 1/2, 1/4, 1/6, 1/12, 1/25 sec. • 25p mode: 1/1, 1/2, 1/4, 1/6, 1/12 sec.
		Synchro scan shutter	• When [SYSTEM MODE] = 59.94 Hz and [SYNC SCAN TYPE] = [sec] • 60i/60p mode: 1/60.0 – 1/249.8 sec. • 30p mode: 1/30.0 – 1/249.8 sec. • 24p mode: 1/24.0 – 1/249.8 sec. When [SYSTEM MODE] = 50 Hz and [SYNC SCAN TYPE] = [sec] • 50i/50p mode: 1/50.0 – 1/250.0 sec. • 25p mode: 1/25.0 – 1/250.0 sec.
		Shutter open angle	3.0 deg – 180.0 deg – 360.0 deg (in 0.5 deg steps, angle display)
		VFR recording frame rate	• 1080/59.94p: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 24, 25, 26, 27, 28, 30, 32, 34, 36, 40, 44, 48, 54, and 60 (frames per second) • 1080/50p: 1, 2, 4, 6, 9, 12, 15, 18, 20, 21, 22, 23, 24, 25, 26, 27, 28, 30, 32, 34, 37, 42, 45, 48, and 50 (frames per second)
		Sensitivity	• [HIGH SENS.] mode F11 (2000 lx, 3200 K, 89.9% reflection, 1080/59.94i) F12 (2000 lx, 3200 K, 89.9% reflection, 1080/50i)
		Minimum subject illumination	0.02 lx (F1.6, gain 18 dB, [1S.EXP.], [HIGH SENS.] mode)
		Digital zoom	x2/x5/x10
		Lens hood	Hood with lens cover
Memory card recorder		Recording media	microP2 memory card, P2 memory card
		Recording slot	microP2 memory card slot ×2, P2 memory card slot ×1
		System format	1080/59.94p, 1080/59.94i, 720/59.94p, 480/59.94i 1080/50p, 1080/50i, 750/50p, 576/50i
		Recording format	AVC‑Intra 100/AVC‑Intra 50 AVC‑LongG 50/AVC‑LongG 25/AVC‑LongG 12 Switching DVCPRO HD/DVCPRO50/DVCPRO/DV formats
		Recording video signal	1080/59.94p, 1080/59.94i, 1080/29.97pN, 1080/23.98pN 720/59.94p 480/59.94i, 480/29.97p 1080/50p, 1080/50i, 1080/25pN 720/50p 576/50i, 576/25p
		Recording and playback time	• AVC‑Intra 100/DVCPRO HD 16 GB×1 approx. 16 min 32 GB×1 approx. 32 min 64 GB×1 approx. 64 min • AVC‑Intra 50/AVC‑LongG 50/DVCPRO50 16 GB×1 approx. 32 min 32 GB×1 approx. 64 min 64 GB×1 approx. 128 min • AVC‑LongG 25/DVCPRO/DV 16 GB×1 approx. 64 min 32 GB×1 approx. 128 min 64 GB×1 approx. 256 min • AVC‑LongG 12 16 GB×1 approx. 120 min 32 GB×1 approx. 240 min 64 GB×1 approx. 480 min Figures are for continuous recording as one clip. Depending on the number of clips, the overall recording time may be shorter than the above.
Digital video		Sampling frequency	• AVC‑Intra 100/AVC‑Intra 50/AVC‑LongG 50/AVC‑LongG 25/AVC‑LongG 12/DVCPRO HD Y: 74.1758 MHz, P_B/P_R: 37.0879 MHz (59.94 Hz) Y: 74.2500 MHz, P_B/P_R: 37.1250 MHz (50 Hz) • DVCPRO50 Y: 13.5 MHz, P_B/P_R: 6.75 MHz • DVCPRO Y: 13.5 MHz, P_B/P_R: 3.375 MHz
		Quantizing	• AVC‑Intra 100/AVC‑Intra 50/AVC‑LongG 50/AVC‑LongG 25: 10 bits • AVC‑LongG 12/DVCPRO HD/DVCPRO50/DVCPRO/DV: 8 bits
		Video compression format	• AVC‑Intra 100/AVC‑Intra 50: MPEG-4 AVC/H.264 Intra Profile • AVC‑LongG 50/AVC‑LongG 25/AVC‑LongG 12: MPEG-4 AVC/H.264 • DVCPRO HD: DV-Based Compression (SMPTE 370M) • DVCPRO50/DVCPRO: DV-Based Compression (SMPTE 314M) • DV: DV Compression (IEC 61834-2)
Digital audio		Recording audio signal	• AVC‑Intra 100/ AVC‑Intra 50: 48 kHz/16 bits, 4CH and 48 kHz/24 bits, 4CH switch • AVC‑LongG 50/AVC‑LongG 25: 48 kHz/24 bits, 4CH • AVC‑LongG 12/DVCPRO HD/DVCPRO50: 48 kHz/16 bits, 4CH • DVCPRO/DV: 48 kHz/16 bits, 4CH
Digital audio		Headroom	12 dB/18 dB/20 dB switchable menu
AVC proxy		File format	MOV
		Video compression format	H.264/AVC Baseline Profile H.264/AVC High Profile
		Audio compression format	AAC‑LC Linear PCM
		Approximate recording time (1 GB)	• AVC-G6 2CH MOV: Approx. 13 min • SHQ 2CH MOV: Approx. 25 min • HQ 2CH MOV: Approx. 78 min • LOW 2CH MOV: Approx. 135 min These are reference values for continuous recording using the Panasonic products. The recording time may differ depending on the scene or the number of clips.
Video input/output		SDI OUT terminal	BNC×1 HD (3G/1.5G), SD: 0.8 V [p-p], 75 Ω
		VIDEO OUT terminal	BNC×1 Also used as the GENLOCK IN terminal, IN/OUT switch selection Composite: 1.0 V [p-p], 75 Ω
		HDMI OUT terminal	HDMI×1 (HDMI type A terminal, not compatible with VIERA Link)
Audio input		Built-in microphone	Supports stereo microphone
Audio input		AUDIO INPUT 1 AUDIO INPUT 2 terminal	XLR×2, 3-pin Input high impedance, LINE/MIC switch selection • LINE: 4/0 dBu (selectable menu) • MIC: −40/−50/−60 dBu (selectable menu), +48V on/off (switch selection)
Audio output		AUDIO OUT terminal	3.5 mm diameter stereo mini jack ×1 Output level: 600 Ω, 316 mV
		Headphones terminal	3.5 mm diameter stereo mini jack ×1 100 Ω, −16 dBV (32 Ω load, at maximum output level)
		Speaker	20 mm diameter, round ×1
Other input/output		CAM REMOTE terminal	2.5 mm diameter super mini jack ×1 3.5 mm diameter mini jack ×1
		GENLOCK IN terminal	BNC×1, also used as the VIDEO OUT terminal, IN/OUT switch selection, 1.0 V [p-p], 75 Ω
		TC IN/OUT terminal	BNC×1 Used as the input and output terminals, IN/OUT switch selection • Input: 1.0 V - 4.0 V [p-p], 10 kΩ • Output: 2.0 V±0.5 V [p-p], low impedance
		LAN terminal	100BASE‑TX/10BASE‑T
		USB2.0 DEVICE terminal (device)	Type miniB connector, 4-pin
		USB3.0 HOST terminal (host)	Type A connector, 9-pin
		USB2.0 HOST terminal (sub-host)	Type A connector, 4-pin (exclusively for wireless module AJ‑WM30)
		DC IN 12V terminal	DC 12 V (DC 10.5 V - 13.5 V), EIAJ type 4
Monitor		LCD monitor	3.5-type QHD color monitor (Approx. 1560000 dots)
Monitor		Viewfinder	0.5-type OLED (organic EL display) (Approx. 2360000 dots, video display area: approx. 1770000 dots)
AC adaptor		Power source	AC 100 V - 240 V, 50 H_z/60 H_z 42 W
		Power output	DC 12 V, 2.5 A
		Ambient operating temperature	0°C - 40°C (32°F - 104°F)
		Ambient operating humidity	10% - 80% (no condensation)
		Weight	Approx. 210 ] (0.46 lbs.)
		Dimensions (W×H×D)	115 mm×37 mm×57 mm (4-17/32 inches×1-15/32 inches×2-1/4 inches)
Battery charger		Power source	AC 100 V - 240 V, 50 H_z/60 H_z 0.4 A
		Power output	DC 8.4 V, 1.2 A
		Ambient operating temperature	0°C - 40°C (32°F - 104°F)
		Ambient operating humidity	10% - 80% (no condensation)
		Weight	Approx. 160 ] (0.35 lbs.)
		Dimensions (W×H×D)	70 mm×44.5 mm×116 mm (2-3/4 inches×1-3/4 inches×4-9/16 inches)
