Ovide Smart Assist

Code:

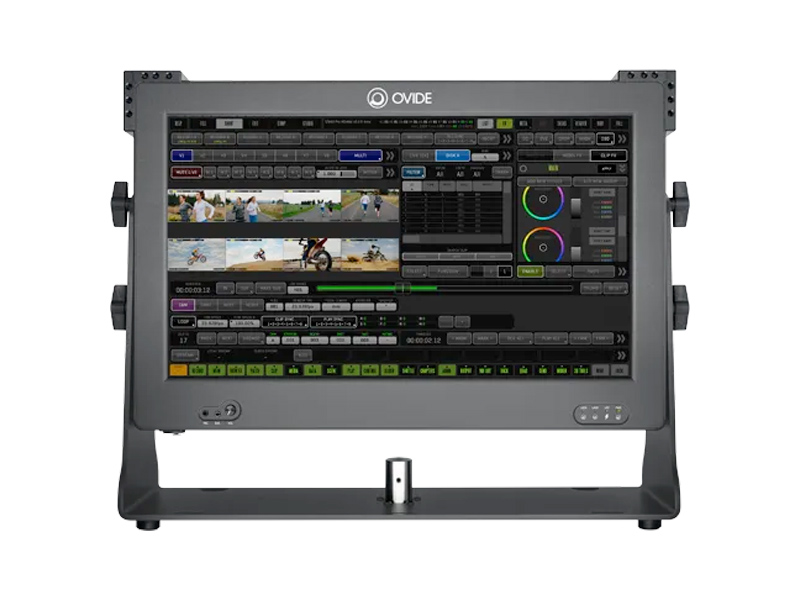

The Smart Assist M200 Octo from OVIDE is a versatile 22" monitor with a capacitive touchscreen display. Boasting 500 cd/m² brightness and DCI 4K screen resolution, the M200 offers eight SDI inputs and 24 SDI outputs for video and two 3-pin XLR inputs and two outputs for analog audio. Two removable 2TB drives are included with the monitor.

For purchasing information

Enquire Now

Overview
Specifications

Choose your model

Dual	Quad	Octo

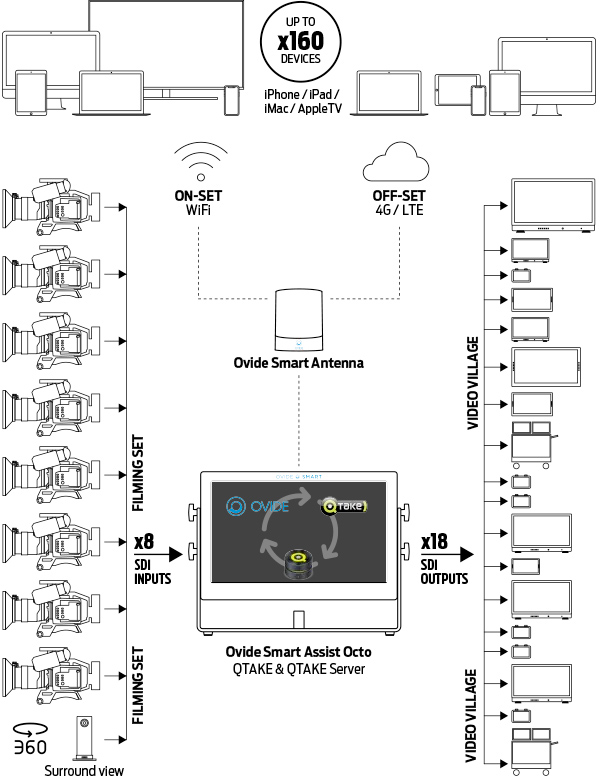

2 SDI inputs for up to 2 HD cameras 6 SDI outputs	One 4K camera or 4 HD cameras 12 SDI outputs Tagged routed outputs on mini OLED displays	24 SDI outputs Tagged routed outputs on mini OLED displays Massive CPU and GPU performance Two 4K cameras or 8 HD cameras

Removable SSD

The SSD video drive can be easily removed and swapped

Touchscreen

Rock-solid, sharp, super bright (500 nits) and true colour 22” 4K DCI P3 touchscreen

Sunhood

A sunhood is perfect for exterior sunny locations

Suitcase

Checked luggage: Size & weight of the transport case is IATA approved

Reading lamp

Choose between a white light or a red light for dimmed light sets

All in one

Everything you need is inside: touchscreen, electronics, SSD, UPS…

The value of here & now

Fast-moving and easy set-up system

Silent

Fan speed can be controlled from the software to adapt to your environment

Cooling

Cooling system carefully designed to avoid overheating

Rock solid

Solid touchscreen, tough construction materials and high-end connectors

Power sources

Works with mains, block and camera batteries, and has hot swap capabilities and a 2-minute UPS

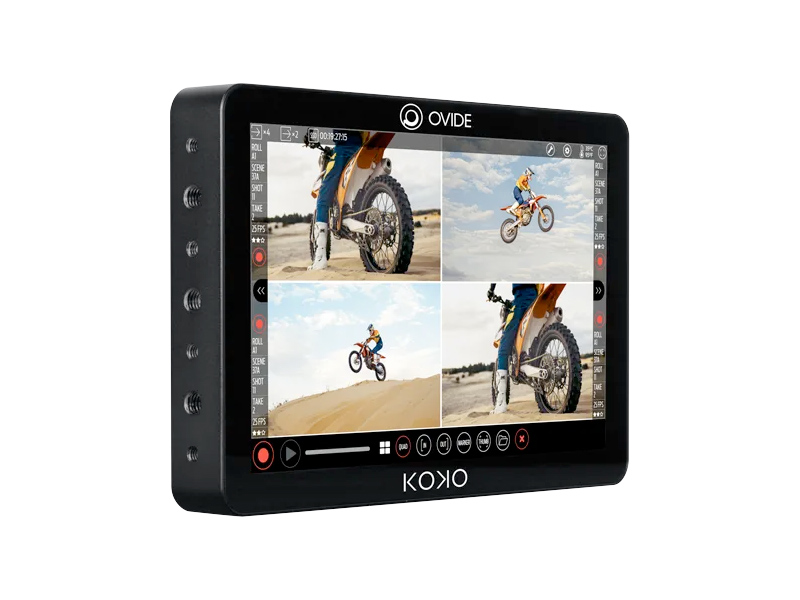

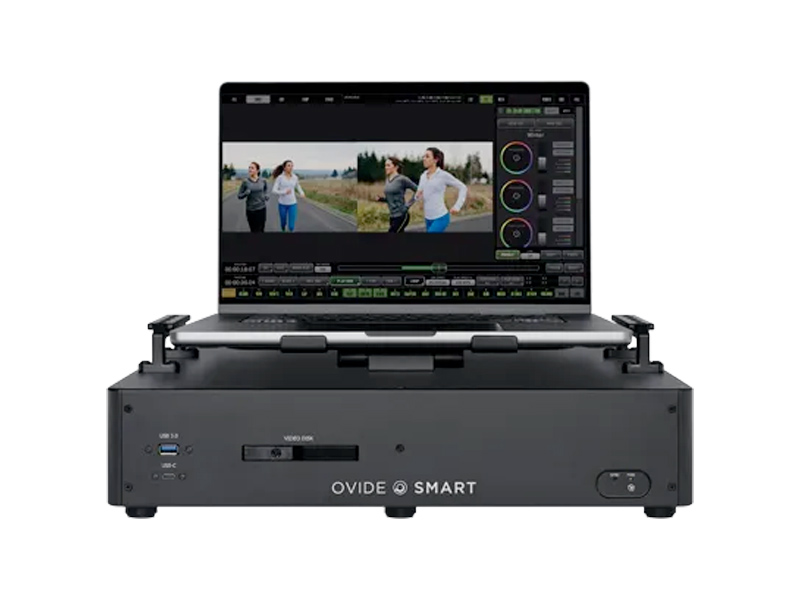

	Smart Assist M200 Octo	Smart Assist M200 Quad	Smart Assist M200 Dual	Smart Dock Dual	Koko
Display type	TFT LCD	TFT LCD	TFT LCD	-	TFT LCD
Touchscreen	Capacitive	Capacitive	Capacitive	-	Capacitive
Display siize	22”	22”	22”	-	10.1”
Display resolution	DCI-P3 / 4096×2304px / 10 bit / 16.7M colors	DCI-P3 / 4096×2304px / 10 bit / 16.7M colors	DCI-P3 / 4096×2304px / 10 bit / 16.7M colors	-	1920×1200px / 8 bits / 16.7M colors
Display brightness	500 nits	500 nits	500 nits	-	1000 nits
Display contrast	1200:01:00	1200:01:00	1200:01:00	-	900:01:00
Recording	Apple ProRes / h264 / h265	Apple ProRes / h264 / h265	Apple ProRes / h264 / h265	Apple ProRes / h264 / h265	Apple ProRes
Recording media	2× 2TB Removable SSD disk	2× 2TB Removable SSD disk	2× 2TB Removable SSD disk	1TB Removable SSD disk	Removable SSD disk (7mm thick)
Video inputs	8× SDI	4× SDI	2× SDI	2× SDI	4× 12G-SDI*
Video outputs	24× SDI	12× SDI	6× SDI	6× SDI	4× 12G-SDI*
TC	BNC-LTC input, SDI embeded i/o	BNC-LTC input, SDI embeded i/o	BNC-LTC input, SDI embeded i/o	SDI embedded i/o	SDI embedded i/o
Connect up to	8× 2K cameras or 2× 4K cameras	4× 2K cameras or 1× 4K camera	2× 2K cameras	2× 2K cameras	4× 2K cameras or 1× 4K camera
Audio inputs	2× XLR with impedance selector	2× XLR with impedance selector	2× XLR with impedance selector	2× XLR-3	SDI or analog XLR via break-out cable
Audio outputs	2× XLR-3	2× XLR-3	2× XLR-3	2× XLR-3	SDI or analog XLR via break-out cable
USB	2× USB-C / 2× USB 3.0	2× USB-C / 2× USB 3.0	2× USB-C / 2× USB 3.0	1× USB-C / 2× USB 3.0 / 1× USB 2.0	USB-C
LAN	10 Gigabit Ethernet	10 Gigabit Ethernet	10 Gigabit Ethernet	Gigabit Ethernet	Ethernet
Wifi	SMA connectors	SMA connectors	SMA connectors	Using your Apple computer	-
Bluetooth	Yes	Yes	Yes	Using your Apple computer	-
Battery mount	Bebob or Anton Bauer mount	Bebob or Anton Bauer mount	IDX or Anton Bauer mount	IDX mount	V-Lock / Gold / B
Power	18-30vdc	18-30vdc	18-30vdc	18-30vdc	12-17vdc
Consumption	180W max	120W max	100w max	175w max (while charging the computer)	25W
Battery hot swap	Yes	Yes	Yes	Yes	-
UPS	Internal, 2 minutes	Internal, 2 minutes	Internal, 2 minutes	-	-
AC Power connection	Fischer (Arri type) connector	Fischer (Arri type) connector	Fischer (Arri type) connector	Fischer (Arri type) connector	Lemo 2 Pin
Temperature range	32-104°F / 0-40°C	32-104°F / 0-40°C	32-104°F / 0-40°C	32-104°F / 0-40°C	32-104°F / 0-40°C
Dimensions	22×18×6” / 610×460×159mm (with yoke)	24×16×6” / 610×415×150mm (with yoke)	24×16×6.2” / 610×415×150mm (with yoke)	17x13x5” / 440x340x140mm	250×169×33mm
Weight	35.27 lb / 16 Kg	32.8 lb / 14.9 Kg	32.8 lb / 14.9 Kg	16.86 lb / 7.65 Kg	2.8 lb / 1.3 Kg
Support	Female C-Stand Pin ø1.2×2” / ø30×50mm	Female C-Stand Pin ø1.2×2” / ø30×50mm	Female C-Stand Pin ø1.2×2” / ø30×50mm	-	-
