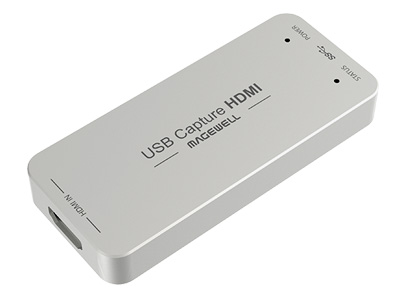

Magewell USB Capture HDMI Gen 2

Code: COR/32060
$650.00

Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1200p60. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up- or down-covert the input signal to the set resolution.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

Record or stream an HDMI signal via USB 3.0 with the Magewell USB Capture HDMI Gen 2. With its HDMI v1.4a input, this capture device will accept resolutions up to 1920 x 1200p60. If you need to stream or record at a certain resolution, the USB Capture HDMI will internally up- or down-covert the input signal to the set resolution. It can also perform frame rate conversion and deinterlacing in real time with its own hardware, taking the processing load off your computer's CPU.

Because the USB Capture HDMI uses the existing drivers on your computer, the capture device will work with any software that supports those drivers. If you don't have a USB 3.0 port available, the USB Capture HDMI will work with a USB 2.0 port, although the resolution and frame rate capabilities will be reduced due to the restricted bandwidth.

No drivers needed for Windows, Mac, or Linux

Automatically determines input video format and converts it to the specified output size and frame rate

Automatically converts input audio formats to 48 kHz PCM stereo audio

64MB of DDR2 onboard memory to control frame buffer and avoid interruption or dropped frames when USB bandwidth is occupied

Specifications

Host Connection USB Type-A (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)

Input

Video Input Connectors 1 x HDMI (HDMI 1.4a / DVI) Female
Input Video Format HDMI (8/10/12-Bit 4:4:4/4:2:2 RGB, YCC)
2048 x 2160
1080p: 60/75 fps
Audio Input Connectors None
Embedded Audio Input HDMI: 2-Channel

Hardware

OS Compatibility Windows 7 or Later
macOS 10.9 or Later
Linux
Chrome OS

Power

Power Connector None
Power Consumption 5 VDC at 0.5 A (2.5 W)

Environmental

Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -4 to 158°F / -20 to 70°C
Operating Humidity 5 to 90%

General

Dimensions 3.63 x 1.58 x 0.48" / 92.2 x 40.2 x 12.3 mm
Warranty Length Limited 1-Year Warranty
