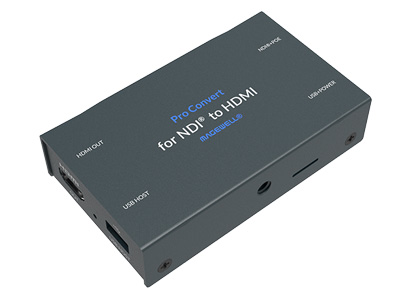

Magewell Pro Convert for NDI to HDMI

Code: COR/64104
$880.00

Use the Pro Convert NDI to HDMI Decoder from Magewell to convert an NDI stream with embedded audio to an HDMI signal output. It supports resolutions up to 4K60 over NDI input, and decodes NDI streams up to 2K60 and DCI 4K at 15 fps over HDMI output.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

Use the Pro Convert NDI to HDMI Decoder from Magewell to convert an NDI stream with embedded audio to an HDMI signal output. It supports resolutions up to 4K60 over NDI input, and decodes NDI streams up to 2K60 and DCI 4K at 15 fps over HDMI output. The device can be powered via an included USB power adapter or over PoE using the RJ45 port.

A companion Web UI allows web configuration from a wide variety of web browsers, such as the device name, source name, NDI and EDID identifiers, and other settings. It features a 1/4"-20 thread for camera mounting and can be used in the studio or in the field thanks to a compact and durable design.

HDMI Specific Features

  • Decode NDI, RTSP, HTTP, RTMP Pull/Push, and TS streams over UDP/SRT/RTP
  • H.264 and H.265 format support
  • Customized EDID support
  • Up to 2K60 NDI input stream
  • Up to DCI 4K HDMI output signals
  • NDI decoder converts from 2K to 2K60 output; from 4K to 4K15 output
  • 96 kHz, 16-bit, 8-channel audio streams

Supported Web Browsers

  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above

Video Decoding Features

  • 150 megapixel decoding
  • Tally indicators
  • Audio meter and audio meter scale
  • Audio gain, sample rate, and channel settings
  • Center marker
  • Safe area
  • Video scaling, frame rate, and aspect ratio conversion
  • Video color format conversion with YUV BT.601, YUV BT.709 color format support
  • Auto or manual selection of input color format
  • Remote control passthrough for PTZ camera
  • Video frame rate conversion
  • Video vertical and mirror flip

Supported Software

  • Pro Convert encoder
  • Magewell Bridge for NDI
  • NewTek Connect
  • NDI Studio Monitor
  • OBS Studio
  • vMix
  • VLC
  • IP Camera
  • Haivision

Specifications

Input

Video Input Connectors1 x RJ45 (NDI) Female
Input Video FormatRJ45 (4:4:4/4:2:2 RGB, YUV)
DCI 4K: 60 fps
DCI 2K: 60 fps
Embedded Audio InputRJ45: 8-Channel (per Input)

Output

Video Output Connectors1 x HDMI (HDMI 1.4 / HDMI 2.0 / DVI) Female
Output Video FormatHDMI
DCI 4K: 15 fps
DCI 2K: 60 fps
Embedded Audio OutputHDMI: 8-Channel (per Output)

Standards

EDID SupportManual Control

Connectivity

Other I/O1 x USB Type-B Control Input (Shared Power)
1 x USB Type-A Control Input

Hardware

Tally LightYes

Power

Power Connector1 x USB Type-B (5 VDC at 2.1 A) Input
PoE SupportPoE 802.3af
Power ConsumptionDevice: 1.1 A5 W

Environmental

Operating Temperature32 to 113°F / 0 to 45°C
Storage Temperature-4 to 158°F / -20 to 70°C
Operating Humidity5 to 90%

General

Dimensions3.98 x 2.36 x 0.91" / 10.1 x 6 x 2.3 cm
Warranty LengthLimited 2-Year Warranty
