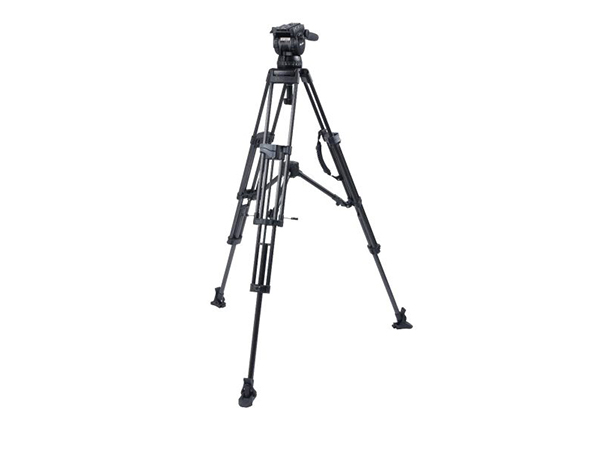

Miller CX14 Head with Sprinter II 2-Stage CF Legs Mid Spreader

Code: MIL/3783

$6,770.00

The 3783 CX14 Sprinter II 2-stage (carbon fibre) tripod system combines the 1576 Sprinter II tripod and CX14 fluid head for fast and easy set-ups.

Add to Cart

Usually ships in 1-2 weeks

What's In The Box?

1097 CX14 fluid head

1576 Sprinter II 2-stage tripod (carbon fibre)

993 Mid-level spreader

475 Rubber feet (set of 3)

679 Pan handle - fixed with clamp

3502 Arrowx softcase 2-stage

The 3783 CX14 Sprinter II 2-stage (carbon fibre) tripod system combines the 1576 Sprinter II tripod and CX14 fluid head for fast and easy set-ups.

Payload Range	0-14.0 kg (0 - 30.9 lbs)
Weight	7.2kg (15.9lbs)
Height Range	603-1693mm (23.7-66.6")
Transport Length	853mm (33.6")
Counterbalance Positions	16 selectable positions (15+0)
Pan Tilt Drag	5 selectable fluid drag positions + 0
Pan Tilt Locks	Positive lock calliper brake system
Tilt Range	+90° / -75°
Pan Range	360°
Camera Platform	Quick release, side load camera plate
Sliding Range	60mm (2.4”)
Mounting Base	Ø100mm (3.9") ball levelling
Height Above Bowl	150mm (6.0")
Illuminated Controls	Bubble level
Pan Handle	Fixed 390 mm (15.4”)
Temperature Range	-40° to +65°C (-40° to +150°F)
Leg Extension	1-stage
Lock Type	HS dual action
Leg Material	Carbon fibre
