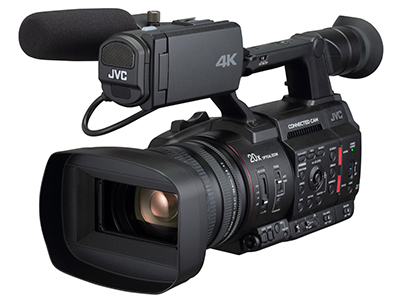

JVC GY-HC500E

Code:
4K handheld camcorder for ENG, production, and sports. Shoot 4K ultra-HD with HDR and record to SSD (solid state drive) media in a wide variety of formats, including 10-bit ProRes 422 at 4K resolution and 50/60p frame rates

For purchasing information

Enquire Now

1" 4K handheld camcorder for ENG, production, and sports. The GY-HC500 is a handheld 4K production camcorder that offers uncompromised live and recorded image quality, and connectivity you won't find in any competitor's product. Shoot 4K ultra-HD with HDR and record to SSD (solid state drive) media in a wide variety of formats, including 10-bit ProRes 422 at 4K resolution and 50/60p frame rates,

Main features

  • 4K UHD 60p/50p Apple ProRes 422 10-bit recording to SSD*
  • 4K UHD 30p/25p/24p up to 4:2:2 10-bit recording to SDHC/SDXC card
  • 1" (effective) CMOS sensor with high picture quality
  • Newly-developed 4K lens with 20x zoom
  • HDR recording, HLG or J-Log1 (10-bit)
  • High performance 1080 60p/50p live streaming
    (4K Rec + HD streaming + 4K HDMI output)
  • Low latency and high-quality streaming up to 20Mbps
  • LAN terminal (Streaming/IFB/Remote) in addition to USB host (v3.0)
  • Return over IP (Return video and IFB)
  • Auto FTP to upload native video clips automatically
    • *with optional SSD media adapter by JVC
Imaging
Image Sensor 1-Chip 1" CMOS Sensor
Sensor Resolution 9.35 MP
Sensitivity f/11 at 2000 lux 89% Reflectance
Lens
Focal Length 9.4 to 188.6mm
35mm Equivalent Focal Length 28 to 560mm
Optical Zoom Ratio 20x
Maximum Aperture f/2.8 to 4.5
Filter Size 82 mm
Control Rings Focus
Zoom
Iris
Focus Control Autofocus
Manual Focus
Camera
Shutter Speed 1/6 to 1/10,000 sec
Built-In ND Filter Mechanical Filter Wheel with Clear, 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters
Built-In Microphone Type Stereo
Recording Media 2 x SDXC/SDHC UHS-I Card Slots (U3 / V30 or faster cards recommended)
Recording
Recording Modes ProRes 422HQ 4:2:2 10-Bit:
3840 x 2160p up to 50/60 fps
ProRes 422 4:2:2 10-Bit:
3840 x 2160p up to 50/60 fps
ProRes 422LT 4:2:2 10-Bit:
3840 x 2160p up to 50/60 fps
H.264 4:2:2 10-Bit:
3840 x 2160p at 24/25/30 fps (150 Mb/s)
H.264 4:2:0 8-Bit:
3840 x 2160p at 24/25/30 fps (70 Mb/s)
H.264 4:2:2 10-Bit:
1920 x 1080p (8 to 50 Mb/s)
H.264 4:2:0 8-Bit:
1280 x 720p (8 to 50 Mb/s)
H.264:
720 x 480p (8 Mb/s)
960 x 540p (1.2 to 3 Mb/s)
480 x 270p (1.2 to 3 Mb/s)
Audio Recording MOV:
MP4:
Proxy:
IP Streaming MPEG2, RTMP, RTP, RTSP, UDP, TCP: 640 x 360 to 1920 x 1080 at 50p, 59.94p (0.3 to 20.00 Mb/s)
General
Dimensions 7.68 x 9.06 x 17.52" / 195 x 230 x 445 mm
Weight 7.94 lb / 3.6 kg
