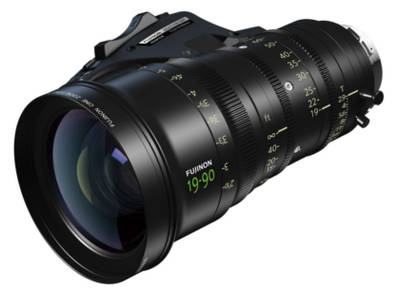

Fujinon ZK4.7x19 (19-90mm) Cabrio Lens

Code: FPF/ZK4.7X19BE
The PL 19-90 Cabrio (ZK4.7x19) features an exclusive detachable servo drive unit, making it suitable for use as a standard PL lens or as an ENG-Style lens.

For purchasing information

Enquire Now

The PL 19-90 Cabrio (ZK4.7x19) features an exclusive detachable servo drive unit, making it suitable for use as a standard PL lens or as an ENG-Style lens. The ZK4.7x19 also features flange focal distance adjustment, macro function, and is LDS (Lens Data System) and /i metadata compatible. With a 19-90mm focal range and weight of only 2.7kg including servo motors, this lens has the longest focal range available in a light weight zoom.

Videographers used to shooting video in a typical ENG-style will be very comfortable with the servo. Cinematographers will also be right at home with this lens. With the detachable drive removed, the lens is set to accept industry standard cine motors and matte boxes. Plus, the lens has all the lens data output that appeals to a Cine-style shooter. LDS and /i metadata compatibility is very useful when you want to record the position information of zoom, iris and focus for computer animation and other uses.

The digital servo on the PL 19-90 has 16-bit encoding, so operators can be assured that all lens data output is extremely accurate.

The PL 19-90 covers 31.5mm sensor size on a digital cinema style camera. While sensors on standard broadcast cameras are all the same size, sensors on digital cine cameras vary greatly. This new zoom ensures the image captured will cover large sensors for optimal, full-frame resolution. A nine-blade iris part of the design as well, creating the most natural-looking imagery possible.

Barrel markings are luminous for visibility in dark shooting situations. Distances are listed in feet or meters and can be changed in the field.

The PL 19-90 can be controlled using cinema industry standard wireless controllers, as well as existing Fujinon wired and wireless units. Whether you are from a film background or a video one, the Premier PL 19-90 offers uncompromising quality and unprecedented flexibility.

There is no media for this item.


Camera Format PL Mount
Focal length 19 - 90 mm
Zoom range 4.7 ×
Maximum Photometric Aperture T-No. 1 : 2.9
Iris Blades 9
Focus Rotation (degrees) 200
Zoom Rotation (degrees) 120
M.O.D. from image plane 0.85 m
Object dimensions at M.O.D.
16 : 9 Aspect ratio*
19 mm   915 × 515 mm
90 mm   193 × 109 mm
Angular field of view
16 : 9 Aspect ratio*
19 mm   71°41′ × 44°14′
90 mm   17°20′ × 9°48′
Macro Available
Filter thread M114
Diameter × Length 114 × 223 mm
Weight 2.7 kg
Features With Detachable Digital Drive Unit
Flange Focal Distance Adjustment
LDS & /i Compatible
* Sensor size: 27.45 x 15.44 mm
