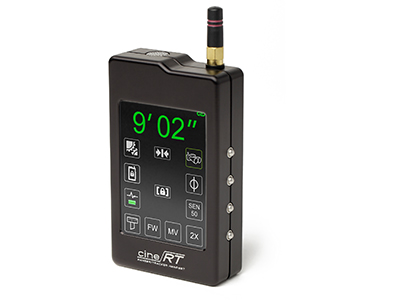

FocusBug Handset Control Unit HCU-100

Code:

The HCU 100 is a handset control unit for the FocusBug Cine RT System, featuring a touchscreen hub to access Live View display modes, operational tools and user settings. The Handset allows all adjustments to be made remotely without needing to be hands-on with the camera.

For purchasing information

Enquire Now

The HCU 100 is a handset control unit for the FocusBug Cine RT System, featuring a touchscreen hub to access Live View display modes, operational tools and user settings. The Handset allows all adjustments to be made remotely without needing to be hands-on with the camera.

The Handset also doubles as a discrete tape measure allowing up to eight marks to be quickly collected, stored and edited without pulling a tape or sighting a laser. Select the Focus Whisper or Marks View to hear or see your marks in relation to your target's movements in real time.

  • Remote control of all CINE RT system functionality via a robust Ultra Low Power 2.4 GHz RF link (up to 800' (240m) line-of-sight).
  • Advanced LIMITS and LOCKOUT features that allow quick and easy elimination of unwanted targets & reflections.
  • Advanced Digital Signal Processing (DSP) features for increased range and stability.
  • SONIC ANALYZER tool for real-time ultrasonic room reflection display.
  • One touch SYNC MODE ultrasonic timeslot synchronization allows two CINE RT systems to work in the same physical/acoustic space without crosstalk.
  • "CINE-TAP" MODE to enable compatibility with existing rangefinder systems.
  • Monitor two targets simultaneously in DUAL VIEW.
  • Integrated Ultrasonic Tape Measure with up to 120' (36.5m) range.
  • Mark collection, storage and manipulation via TAPE MODE and MARKS EDITOR screens.
  • MARKS VIEW offers real-time graphical monitoring of target movement in relation to stored marks.
  • Real-time audio “calling” of stored marks with the FOCUS WHISPER tool.
  • Powered by either a high-capacity internal rechargeable Lithium Polymer battery or external source.
  • Adjustable screen brightness, high contrast display mode and screen lock.
  • Interchangeable mounting options and genuine LEMO™ hardware.
Handset Control Unit HSU-100
Dimensions 10.5 cm x 6.2 cm x 2.5 cm (without antenna)
Weight 189 grams (6.7 oz)
Power 7 - 20V DC
RF Ultra low power, 2.4 GHz ISM band
Construction Milled aluminum
Ultrasonic Frequency 40kHz
Handset Tape Range 1' - 120' (0.3 - 36.5m)
Connectors Power: 2 pin LEMO (Arri Standard)
Audio: 1/8" stereo headphone jack
LCD Display Resistive Touch TFT LCD 3.2" (8.1cm)
