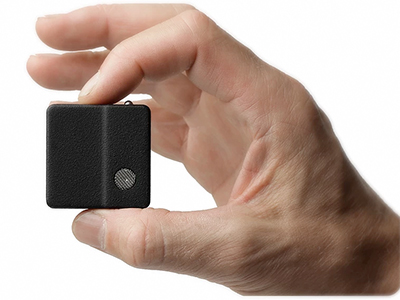

FocusBug Bug Miniature Ultrasonic Transmitter BUG-100

Code: FCB/BUG-100

Measuring 4 x 4 x 1cm and weighing less than 20g, the BUG-100 is a tiny, lightweight receiver for the FocusBug Cine RT System.

For purchasing information

Enquire Now

The miniature Ultrasonic Bug Transmitter is milled from rugged lightweight ABS, measures 1.6" x 1.6" x 0.4" (4 x 4 x 1 cm) and weighs less than 0.7oz (20g).

The Bug can be easily hidden and will transmit ultrasound through most fabrics with no RF emissions. Place them on your assistants, stand-ins or principal actors for fast continuous distance information. Track up to four Bug sources to distances of 120' (36.5m) line of sight from the BASE.

  • Ultra lightweight design and small form factor for easy concealment.
  • Works through most common fabrics and around many common on-set obstacles.
  • Line of sight operation to BASE unit receiver.
  • Easily programmable Offset function to compensate for BUG placement (e.g, car mounted BUG).
  • Fully ultrasonic design with no RF emissions.
  • Long lasting internal lithium polymer battery  (8 - 10 hours in standby).
  • Remote shutdown and ultrasonic level control via HANDSET.
  • Up to four BUG transmitters can be active at a time (with two sources simultaneously viewable).
  • Excellent compatibility with on set audio systems, microphones and wireless lavaliers.
Bug Miniature Ultrasonic Tx BUG-100
Dimensions 4.0 cm x 4.0 cm x 1.0 cm (1.6" x 1.6" x 0.4)
Weight 19.1 grams (0.7 oz)
Charge Power 5V DC (USB)
RF 2.4 GHz ISM band, receive only.
Construction Milled ABS thermoplastic
Ultrasonic Frequency 40 kHz
Bug Range (recommended) 1' - 120' (0.3 - 36.5m)
Connectors USB mini B (charge power)
