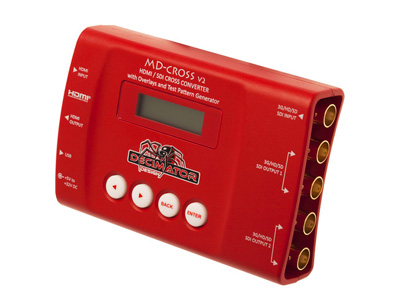

Decimator MD-Cross V2 Mini HDMI/SDI Cross Converter

Code: DEC/MD-CROSS2
$580.00

Combining SD, HD, and 3G test pattern generation with capabilities usually reserved for a computer controlled scaler/converter the DECIMATOR MD-Cross V2 Miniature HDMI/SDI Cross Converter is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Decimator MD-Cross V2 Mini HDMI/SDI Cross Converter is back in stock.

What's In The Box?

  • (3G/HD/SD)-SDI Active Loop-Through Output
  • Full 16-Channel Audio Metering Overlays
  • Adjustable Safe Title and Safe Action Overlays and static Center Cross
  • Text Overlays
  • USB port for control and firmware updates
  • New Metal Thread Locking DC Power Socket
  • Power Supply, HDMI Cable and USB Cable
  • The 12G-CROSS allows either of the HDMI or SDI outputs to be simultaneously sourced from either the HDMI or SDI input or the new 4K scaling engine.
  • Combining SD, HD, and 3G test pattern generation with capabilities usually reserved for a computer controlled scaler/converter the DECIMATOR MD-Cross V2 Miniature HDMI/SDI Cross Converter is a small independent device that features the same proven cross converter found in DECIMATOR's larger MD-DUCC. The DD-Cross features both an HDMI and a 3G-SDI input, and can cross convert either signal to the other. It features a built-in scaler and frame rate converter as well, allowing you to convert the input signal to your required output standard.

    The included test pattern generator of the MD-Cross supports 26 selectable output formats with 54 test patterns. It features one HDMI output, one loop through SDI output, and two pairs of 3G-SDI outputs, controllable via fourteen selectable conversion modes, providing you with a variety of modes to fit your needs. This converter does not require a computer or DIP switches to control as it incorporates a small LCD screen for menu functions, and four buttons for control. It comes with a power supply with locking power cable to prevent accidental power loss during use.

    Note: Firmware Release 2.0.6 adds 3G-SDI Level B support for 1080p60/59.94/50 for this model, as well as the ability to set the SDI output to 3G level A or B and convert between A and B. It also enables horizontal and vertical image flipping via the built-in scaler.

    14 Conversion Modes

    1. SDI In to HDMI and SDI Out
    2. SDI In to SDI Out and HDMI In to HDMI Out
    3. SDI In to SDI Out and Scaled SDI In to HDMI Out
    4. SDI In to SDI Out and Scaled HDMI In to HDMI Out
    5. HDMI In to SDI Out and SDI In to HDMI Out
    6. HDMI In to HDMI and SDI Out
    7. HDMI In to SDI Out and Scaled SDI In to HDMI Out
    8. HDMI In to SDI Out and Scaled HDMI In to HDMI Out
    9. Scaled SDI In to SDI Out and SDI In to HDMI Out
    10. Scaled SDI In to SDI Out and HDMI In to HDMI Out
    11. Scaled SDI In to HDMI and SDI Out
    12. Scaled HDMI In to SDI Out and SDI In to HDMI Out
    13. Scaled HDMI In to SDI Out and HDMI In to HDMI Out
    14. Scaled HDMI In to HDMI and SDI Out

    HDMI to SDI / SDI to HDMI

    • The HDMI or SDI input can be scaled and/or frame rate converted to the required standard.
    • The MD-Cross incorporates an LCD and button control system. This gives you access to features that have usually require a computer. Adjusting DIP switches or having access to a computer to change a simple setting are no needed with the MD-Cross.
    • The unit features adjustable Title Safe, Action Safe, and static center cross overlays. The unit also supports text overlays.
    • The unit supports 54 test patterns, including Luma and Chroma Zone-plates.
    • The unit supports 16 channels of audio level metering overlays.
    • The audio pairs in the SDI and HDMI outputs can be rearranged as required.
    • The unit incorporates a USB port for control and firmware updates.

    More Decimator Products

    For more information on the full Decimator Design range, click here

    Specifications

    InputsHDMI: 1 x Type A
    SD/HD.3G-SDI: 1 x BNC
    OutputsHDMI: 1
    SD/HD.3G-SDI: 3 x BNC (1 x Active Loop-Through, 2 x output)
    SDI Formats Supported3G: SMPTE 424M 2.97 and 2.967 Gb/s
    1080p: 60/59.94/50 Hz

    HD: SMPTE 292M/274M/296M 1.485 and 1.435 Gb/s
    1080i: 60/59.94/50 Hz
    1080p/psf: 30/29.97/25/24/23.98 Hz
    720p: 60/59.94/50/30/29.97/25/24/23.98 Hz

    SD: SMPTE 259M 270 Mb/s
    525i: 59.94
    625i: 50
    Control Buttons
    • SDI output source from HDMI IN, SDI IN, Test Pattern Generator (TPG), and Scaler
    • HDMI output type and source from HDMI IN, SDI IN, TPG or Scaler
    • Scaler source, format and Aspect Controls
    • Full control for Audio Meter Overlays
    • Full control for Safe Action, Safe Title and Centre Cross Overlays
    • Full control for Text Overlays
    • Full control for Format Status Overlays
    Power5 to 32 VDC
    Pin Positive
    Dimensions3.1 x 4.8 x 1.2" / 79.5 x 123 x 29.5 mm
