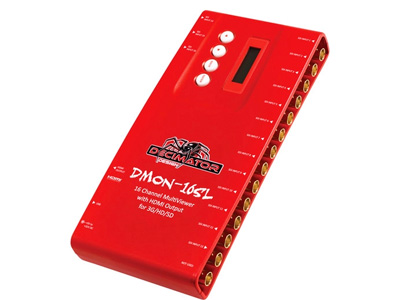

Decimator DMON-16SL 16-Channel SDI Multiviewer with HDMI

Code: DEC/DMON-16SL
$1,165.00

Make an HDMI screen an SDI multiview monitor with DECIMATOR's DMON-16SL 16-Channel SDI Multiveiwer. The DMON-16SL has a built-in interface so it can be controlled without needing a computer. Adjustments can also be made via a computer connected with the included USB cable.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Decimator DMON-16SL 16-Channel SDI Multiviewer with HDMI is back in stock.

What's In The Box?

  • DMON-16SL
  • Power Supply
  • HDMI Cable
  • USB Cable
  • Make an HDMI screen an SDI multiview monitor with DECIMATOR's DMON-16SL 16-Channel SDI Multiveiwer. The DMON-16SL has a built-in interface so it can be controlled without needing a computer. Adjustments can also be made via a computer connected with the included USB cable. Having both of these interfaces precludes the need for obscure LED status lights or complicated DIP switches.

    The DMON-16SL features 16 SDI inputs which support SD,HD, and 3G-SDI standards. Inputs have auto-detection so video streams are displayed correctly. Each input is separate from the others, allowing multiple video frame rates and resolutions to be displayed simultaneously when running as a multi-viewer. The on-screen layout can be changed to display the windows in the position and size of your choosing. A pass-through mode will show only a single input on the display at a time, scaling the video to match the resolution of your display.

    Note: Firmware Release 2.0.6 adds 3G-SDI Level B support for 1080p60/59.94/50 for this model, the ability to set the SDI output to 3G level A or B and convert between A and B, and custom UMDs.

    Features

    • Custom layouts with various standard layouts
    • Audio ID overlay
    • Load and restore custom layouts
    • Fast switching between inputs using Full-Screen scaling
    • Selectable output format in both Full-Screen and Multi-Viewer mode
    • Low latency buffering for each input allowing non-synchronous inputs
    • Variable aspect ratios per window

    More Decimator Products

    For more information on the full Decimator Design range, click here

    Specifications

    Interfaces

    Input Connectors16 x BNC (3G-SDI)
    Output Connectors1 x HDMI
    Other I/O1 x USB Type-A

    Standards

    Video Standard ComplianceSMPTE 259M/274M/292M/296M/424M

    Transmission

    Video FormatHDMI
    1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080i: 50/59.94/60 fps
    720p: 25/29.97/30/50/59.94/60 fps
    NTSC: 59.94 fps
    PAL: 50 fps
    SDI
    1080p: 23.98/24/25/29.97/30/50/59.94/60 fps
    1080PsF: 23.98/24/25/29.97/30 fps
    1080i: 50/59.94/60 fps
    720p: 23.98/24/25/29.97/30/50/59.94/60 fps
    PAL: 50 fps
    NTSC: 59.94 fps

    Power

    Power Connector1 x Barrel (5 to 35 VDC) Input

    General

    Dimensions8.7 x 4.1 x 1.2" / 220.0 x 103.7 x 29.5 mm
