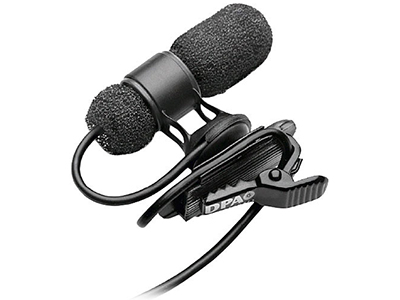

DPA d:screet 4080 Miniature Cardioid Mic with MicroDot Connector

Code: DPA/4080-DC-D-B00

While DPA's miniature omnidirectional mics are ideal for situations where a broad pickup pattern is essential and off-axis noise is not a problem, in some challenging acoustic environments a directional microphone is the better choice. The 4080 Cardioid Lavalier captures the human voice with an unusually high degree of definition. This mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field.

For purchasing information

Enquire Now

While DPA's miniature omnidirectional mics are ideal for situations where a broad pickup pattern is essential and off-axis noise is not a problem, in some challenging acoustic environments a directional microphone is the better choice. The 4080 Cardioid Lavalier captures the human voice with an unusually high degree of definition. This mic offers maximum side rejection and excellent sonic focus on the subject. It is designed for broadcast, conference and other live performances both in the studio and in the field.

It is acoustically pre-equalized, offering a 4 dB presence boost, which matches the mic’s chest placement perfectly. This makes the voice more distinguishable and improves speech intelligibility. Professionals will appreciate that it is lightweight and offers excellent speech reproduction.

This mic is delivered with a pre-mounted black pop filter in a holder with an integrated shock mount, fixed on a clip. An additional white pop filter is also included. Because of the flexible and practical mounting solution, the mic can easily be turned in all directions so it fits both left- and right-buttoned shirts.

Features

  • Excellent speech reproduction
  • Discreet, compact design
  • Fits both left and right buttoned shirts
  • Delivered with both black and white pop filters
  • Modular adapter system fits most professional wireless systems

Specifications

Directional pattern Cardioid
Principle of operation Pressure gradient
Cartridge type Pre-polarized condenser
Effective frequency response 20 Hz - 20 kHz
Frequency range, ±2 dB 250 Hz - 17 kHz with typ. 4 dB soft boost at 4 - 6 kHz (-5 dB at 100 Hz)
Sensitivity, nominal, ±3 dB at 1 kHz 20 mV/Pa; -34 dB re. 1 V/Pa
Equivalent noise level, A-weighted Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))
Distortion, THD < 1% - Legacy 120 dB SPL RMS, 123 dB SPL peak
Distortion, THD < 1% - CORE 126 dB SPL RMS, 129 dB SPL peak
Dynamic range Typ. 100 dB
Max. SPL, THD 10% 134 dB SPL peak
Rated output impedance 30 - 40 Ω
Cable drive capability Up to 300 m (984 ft)
Power supply (for full performance) Min. 5 V - max. 50 V through DPA adapter for wireless systems or 48 V phantom power ±4 V with DAD6001-BC XLR adapter
Connector MicroDot
Color Black
Weight 15 g (0.5 oz) incl. Cable and MicroDot connector
Microphone diameter 10 mm (0.4 in)
Capsule diameter 5.4 mm (0.21 in)
Microphone length 30 mm (1.2 in)
Cable length 1.2 m (3.9 ft)
Cable color Black
Cable diameter 1.6 mm (0.06 in)
Polarity Positively increasing sound pressure produces positive going voltage on MicroDot pin
Temperature range -40°C to 45°C (-40°F to 113°F)
Relative humidity (RH) Up to 90%
