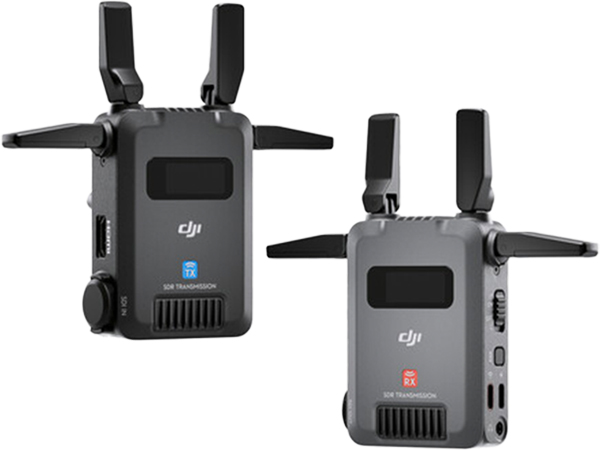

For stable, high-quality video transmission on a small-to-medium-sized shooting set, the SDR Transmission Transmitter from DJI is designed for long-range transmission of footage up to 1080p60 resolution using DJI's proprietary technology. SDR (Software Defined Radio) transmission uses a tri-bandwidth (DFS, 2.4 GHz, and 5.8 GHz) automatic frequency-hopping system, resulting in high penetration and distances up to 1.9 miles. The system is ideal for transmitting footage from a camera rig to an unlimited number of receivers or mobile devices, especially on crowded sets or around dense architecture that would otherwise overwhelm a conventional consumer Wi-Fi-based solution.

SDR Transmission, Stable & Anti-Interference

DJI SDR Transmission utilizes SDR technology to offer enhanced stability, interference resistance, and penetration capabilities. It also supports transmitting directly to smartphones or tablets via Wi-Fi.

Strong Penetration, Extended Transmission Distance

DJI SDR Transmission features a transmission distance of up to 3 km/10,000 ft, [1] suitable for wide-area mobile filming scenarios, and advanced penetration capabilities.

20Mbps High Bitrate, 1080p FHD Image Quality

DJI SDR Transmission supports 1080p/60fps video specifications with a transmission bitrate of up to 20 Mbps [2] and a minimal latency of just 35 ms. [3]

Innovative USB-C Monitoring Experience

DJI SDR Transmission introduces a USB-C output monitoring method. Users can now use a USB-C cable to connect the receiver to a smartphone or tablet.

Broadcast Mode, Unlimited Number of Receivers

In Broadcast mode, each transmitter can connect to an unlimited number of receivers, providing a high-quality monitoring experience.
