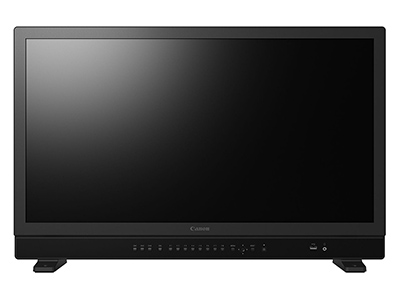

Canon DP-V3120 31" 4K HDR Reference Monitor

Code:
The Canon DP-V3120 is a 31-inch professional 4K HDR reference display that realises an industry-leading white luminance of up to 2,000 cd/m2 (without loading characteristics) and high contrast of 2000000:1. It is able to faithfully express gradation and accurately display original tones, making it ideal for HDR productions in both cinema and broadcast.

For purchasing information

Enquire Now

The Canon DP-V3120 is a 31-inch professional 4K HDR reference display that realises an industry-leading white luminance of up to 2,000 cd/m2 (without loading characteristics) and high contrast of 2000000:1. It is able to faithfully express gradation and accurately display original tones, making it ideal for HDR productions in both cinema and broadcast.

With 12G-SDI terminals (four IN and four OUT), DP-V3120 is able to support multi-viewing of different sources simultaneously in a variety of input formats. The HDR monitoring assist uses false color to help visualise luminance for easier monitoring of footage.

Features

Extraordinary HDR capability

Canon DP-V3120 is a 31-inch 4K HDR Professional Reference Display which provides industry leading 2,000 cd/m2 of full-screen brightness and 2,000,000:1 contrast ratio with exceptional accuracy and consistency, alongside extensive HDR monitoring assist functions. DP-V3120 is ideal for professional HDR production workflows.

Full-screen brightness at 2,000 cd/m2, 2,000,000:1 contrast ratio

Canon DP-V3120 provides an incredible 2,000 cd/m2 of full-screen brightness, giving you higher flexibility to create stunning High Dynamic Range content. With a Canon developed cutting-edge backlight system, precise LED control algorithm and advanced image processing, DP-V3120 is able to deliver a minimum black level of 0.001 cd/m2 and an outstanding 2,000,000:1 contrast ratio, ensuring accurate reproduction of shadow detail and brighter highlights.

Accurate image quality with flexibility for all production requirements Precise image reproduction is important for proper HDR monitoring. DP-V3120 can accurately achieve full range grey scale reproduction from low luminance to high luminance, as well as each R, G, B primaries delivering the appropriate luminance level. This level of accuracy offers greater confidence to manage HDR mastering workflows.

With support for conventional 2.2, 2.4, 2.6, and ITU BT.1886 gamma, as well as HDR Electro-Optical Transfer Functions (EOTF) SMPTE ST.2084 and ITU-R BT.2100 (HLG), DP-V3120 also supports BT.2020 and DCI-P3 wide colour spaces with faithful and consistent colour reproduction to meet both SDR and HDR production requirements.

Remote control

DP-V3120 can be remotely controlled by LAN connection using either a PC or tablet enabling access to the menu, as well as various display information.

View (initial screen)

Checking and zooming of the displayed image. Simple Channel and Function button operations.

Information

Access to display settings and signal information.

Control / Setting / Link

Access to full menu controls, settings and link to other monitors.

Extensive HDR monitoring functions

Canon DP-V3120 provides industry leading extensive HDR monitoring functions, these enable users to visualise HDR signal parameters such as HDR Reference white, signal levels, and image brightness for accurate signal optimisation.

  • HDR waveform monitor / Vector-scope
  • Pixel value checker
  • HDR histogram
  • HDR false colour
  • Frame luminance monitor
  • BT.2020 outside of gamut view
  • HDR over range check
  • HDR / SDR comparison

Reliable and quiet operation

Canon’s innovative backlight system, with highly efficient LEDs and newly designed cooling mechanism, enables and maintains a high continuous luminance level, even at 2,000 cd/m2. This newly designed cooling mechanism achieves quiet operation with high brightness, ideal for environments such as grading suites.

Additionally, Canon’s innovative backlight system uses a full screen sensor array to monitor the backlight performance, while using an intelligent auto correction technology to maintain and adjust image accuracy during operation.

Advanced interface and operability

DP-V3120 is equipped with a 12G-SDI interface to fit the latest 4K production environments, enabling a 4K signal over a single SDI cable. With four 12G-SDI interface terminals, the display can handle multiple 4K signals, providing a 4-screen split view, single 4K image, or single 8K image (displayed in 4K) is also possible.

DP-V3120 supports Payload ID to identify signal’s transfer characteristics, and the Auto Setting function enables automatic switching of the Display’s [Picture Mode] settings. Additionally, signal monitoring functions enable DP-V3120 to identify signal errors such as lack of or wrong order of 2SI signals and CRC errors.

Specifications

Panel

Panel type IPS LCD panel
Screen size 31.1 inch (79.0 cm)
Aspect Ratio 17:9
Resolution 4096×2160 (8.8 megapixels)
Active display area Approx. 698.0×368.1 mm
Pixel Pitch 170 μm/149 ppi

Image Quality

* Brightness values are standard values and not guaranteed values.
Brightness Standard
100 cd/m2
Peak, Full screen white
2,000 cd/m2
Viewing angle (Up, Down, Left, Right) 89° (contrast ratio 10 : 1 or higher)
Surface treatment Anti glare coating

General

Backlight type LED, Matrix Array
Power Rated voltage: AC 100 - 240 V
Rated frequency: 50/60 Hz
Power Consumption At maximum load (including change in brightness due to aging): Approx. 840W
At factory shipment: Approx. 175 W
Environmental Conditions Usage
Temperature and humidity: 5 - 35 ℃ (20 - 85% RH no condensation)
Recommended temperature and humidity: 15 - 30 ℃ (20 - 80% RH no condensation)
Pressure: 700 - 1060 hPa

Storage/Transporting
Temperature and humidity: -20 - 40 ℃ (10 - 85% RH no condensation)
41 - 60 ℃(10 - 30% RH no condensation)
Pressure: 700 - 1060 hPa
Dimensions (width x height x depth) Approx. 749×492×335 mm (including handle)
Approx. 749×470×295 mm (Display unit only, without protruding parts)
Weight Approx. 31 kg
Mounting Hole Pitch VESA standard 200×200 mm

Interface

Input 12G/6G/3G/HD/SD-SDI
4 (1 channel) BNC (75 Ω) Receptacle terminal
12G-SDI: SMPTE 2082 compliant
6G-SDI: SMPTE 2081 compliant
3G-SDI: SMPTE 2048-2/274M/296/372/425-5/425-3/425-1/428-19/428-9 compliant
HD-SDI: SMPTE 2048-2/274M/292-1/296/428-19/428-9 compliant
SD-SDI: SMPTE 259M compliant

HDMI
1 Type A
Copy protection: HDCP 2.2
Output 12G/6G/3G/HD-SDI
4 (Pass-through 1 channel)

Headphone
1 stereo mini-jack, supported impedance: 32 Ω - 64 Ω
Others USB
1 USB A receptacle terminal
Universal Serial Bus Specification Revision 2.0 compliant LS (Low Speed)/FS (Full Speed)/HS (High Speed) mode compatible
Enhanced Host Controller Interface Specification for Universal Serial Bus Revision 1.0 compliant

LAN
1 RJ-45 terminal
IEEE802.3 10BASE-TX / IEEE802.3u 100BASE-TX compliant

REMOTE
1 RJ-45 terminal, GPI 8 pin
