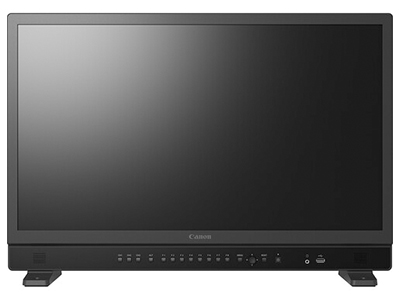

Canon DP-V2730 27" 4K HDR Professional Display

Code: CAN/DP-V2730

Utilize this DP-V2730 UHD 4K Reference Display from Canon on your next narrative feature set for a high-quality production monitor with both SDI and HDMI connectivity.

For purchasing information

Enquire Now

Utilize this DP-V2730 UHD 4K Reference Display from Canon on your next narrative feature set for a high-quality production monitor with both SDI and HDMI connectivity. The DP-V2730 features a 27" 3840 x 2160 TFT LCD screen with 100 cd/m² brightness and an 89° viewing angle for high visibility. Four 12G/3G/HD/SD-SDI inputs and one HDMI input allow for expanded video signal compatibility. A multifunctional SDI output can provide both dual- and quad-display arrays in multicamera applications.

Connectivity and Interface

Advanced HDR monitoring tools effectively display the differences between user LUTs and help aid in contrast adjustments, among other settings. A USB-A 3.0 port on the front panel can be used to upload custom LUTs. Two RJ45 ports, one for LAN and one for GPI connectivity, offer additional device compatibility like daisy chaining multiple displays together. Control over the monitor can be achieved remotely via Web UI software or using the onboard buttons on the front panel.

Key Features

  • Supports IRE, PQ, HLG, and Log signals from multiple manufacturers
  • View up to UHD 4K in a dual or quad array from both SDI and HDMI signals as well as individual picture profiles or user LUTs
  • Link to a computer, tablet, or smartphone via Remote Control Web UI
  • The software provides live image viewing, detailed signal information, and direct control over inputs, monitoring tools, and settings
  • Built-in four-way SDI input switching with multifunctional SDI output
  • LAN connection can daisy-chain multiple Canon display units
  • Onboard buttons and joystick control on the front panel
  • User-uploaded LUTS

Advanced HDR Monitoring Tools

  • Waveform and RGB parade
  • False color
  • Range check
  • Pixel value check and chromaticity diagram
  • Out of Gamut display
  • Histogram
  • Frame luminance
  • HDR/SDR comparison, multi-information view
Panel TypeTFT LCD
Display Size27.00" / 68.6 cm
Screen Area23.5 x 13.2" / 596.7 x 335.7 mm
Resolution3840 x 2160
Aspect Ratio16:9
Viewing Angle89°
Maximum Brightness100 cd/m2 (Sustained)
1000 cd/m2 (Peak)
Contrast Ratio1,000,000:1
HDR CompatibilityHybrid Log Gamma, Advanced HDR
Pixels Per Inch (ppi)163 ppi
FinishAnti-Glare / Matte
Image ControlsFalse Color, Histogram, Out-of-Gamut Display, RGB Parade
Inputs / Outputs
Video I/O4 x BNC (12G-SDI) Input
4 x BNC (12G-SDI) Output
1 x HDMI Input
1 x BNC Output
HDCP SupportYes, Version 2.3
Audio I/O2 x 1/8" / 3.5 mm Headphone Output
Built-In Speaker1 x 2 W
Power I/O1 x IEC Input
Other I/O1 x RJ45 (GPI) Input
1 x USB-A Input
1 x RJ45 (LAN) Input
Media/Memory Card SlotNone
Format Support
Video FormatHDMI/SDI (10-Bit 4:2:2)
UHD 4K: 60
HDMI/SDI (12-Bit 4:4:4)
UHD 4K: 30
Video Standard ComplianceSMPTE 259M/274M/296M/372M/425M/ST-2081/ST-2082
ITU -R BT.709
AC Input Power100 to 240 VAC, 50 / 60 Hz
Power Consumption525 W (Maximum)
0.5 W (Standby)
Mounting-Hole Pattern200 x 100 mm
Operating Temperature32 to 104°F / 0 to 40°C
Operating Humidity20 to 85% (Non-Condensing)
Storage Temperature-4 to 104°F / -20 to 40°C
Storage Humidity20 to 85% (Non-Condensing)
