Bright Tangerine Misfit Kick – 15mm LWS Support Kit (80-95mm & 100-114mm)

Code: BRI/B1235.0007
$585.00
Add 15mm rod support to your matte box when requiring extra rigidity or using rubber donuts.

ENQUIRE NOW

Got a question about this product?
Send us a message

Special Order Item

Usually ships in 4-6 weeks

Request ETA

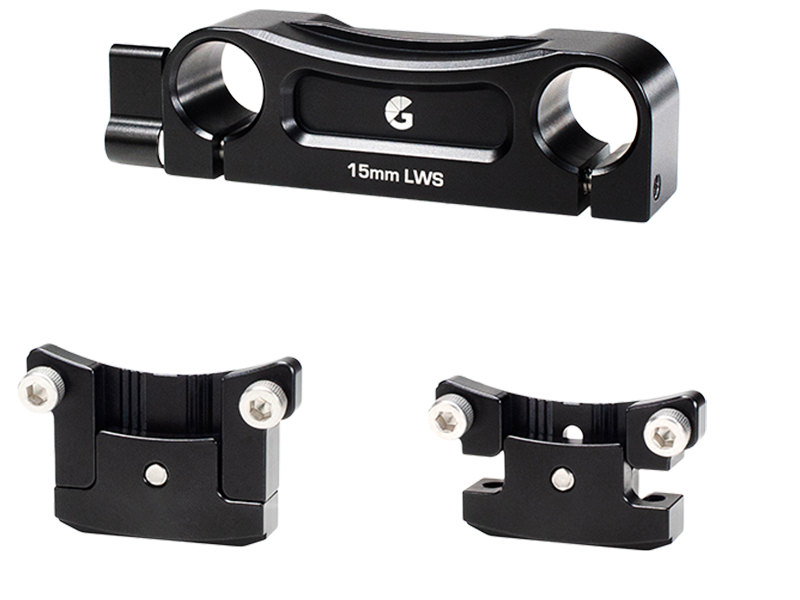

What's In The Box?

  • 15mm LWS Support Bracket (Misfit Kick)
  • 15mm LWS Support Extension (80 – 95mm clamps)
  • 15mm LWS Support Extension (100 – 114mm clamps)
  • Add 15mm rod support to your matte box when requiring extra rigidity or using rubber donuts.

    This kit includes the 15mm LWS bracket and extensions for smaller diameter clamp adapters.

    The support extensions are height adjustable and set on a guided track. Raising and lowering the extension sets the height position of the matte box and is secured using the set screw.

    80, 85, 87 & 95mm Clamp Adapters

    The taller support extension is designed for the 80, 85, 87 & 95mm Frame Safe Clamp Adapters.

    100, 104, 110, & 114mm Clamp Adapters

    The shorter support extension is designed for the 100, 104, 110, & 114mm Frame Safe Clamp Adapters.

    125, 134, 136 & 143mm Clamp Adapters

    When using the larger 125, 134, 136 & 143mm clamp adapters, no extension is required and the 15mm LWS Bracket can be mounted directly to the clamp adapters.

    15mm LWS Bracket

    The 15mm LWS Support Bracket (B1235.1002) attaches to the bottom of the extensions using the two captive screws on the support bracket.

    Compatible Matte Boxes

    The extension kit is compatible with a range of matte boxes including the Misfit Kick (Mk I & II), 360, Prodigy Air Deflector or ARRI LMB 4×5 when combined with our Frame Safe clamp adapters.

    Made in the UK

    It is built from precision cut and anodised from aluminium

    Key Features

  • Connect any frame safe clamp adapters to the 15mm LWS Bracket with this extension bracket kit.
  • Compatible with the Misfit Kick (Mk I & II), 360 & Prodigy Air Deflector or ARRI LMB 4×5 using our Frame Safe adapters.
  • This kit includes short & long extensions with the 15mm LWS bracket.
  • Adds 15mm LWS rod support when using any Frame Safe Clamp Adapter
  • Includes 100-114mm (B1235.1021) & 80-95mm (B1235.1022) extensions with 15mm LWS bracket (B1235.1002)
  • Compatible with Misfit Kick (Mk I & II), 360, Prodigy Air Deflector or ARRI LMB 4×5
  • Specifications
    Weight .01 kg
    Dimensions 10 × 10 × 10 cm
    Matte Box Compatibility

    Misfit Kick Mk II, Misfit Kick 360 Mk II, Misfit Kick Mk I, Misfit Kick 360 Mk I

    Rod Standard

    15mm LWS
