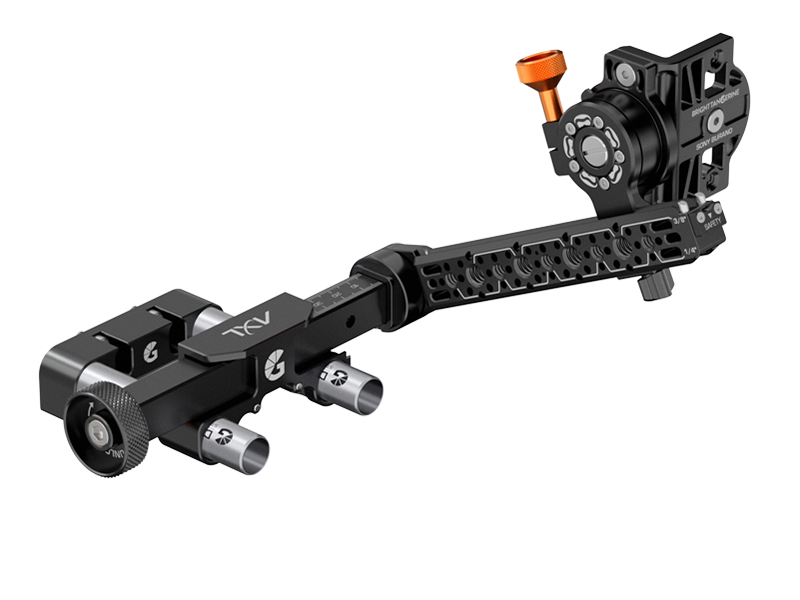

The Axl NATO Monitor Support System for Sony BURANO is changing the filmmaking industry. This is down to its precision and design. Monitoring shots on set is crucial and this makes it easier than ever before.

Quick and Easy Setup

Effortlessly adjust your monitor’s position using the single knob 3-axis locking system. This innovative design streamlines the process on set, saving you valuable time by enabling quick adjustments without the complexity of multiple locking mechanisms. The system tightens fore/aft on the rods, side to side, and enables NATO arm rotation.

Enhanced Stability and Flexibility

With a dual NATO rail offering 140mm of travel, this setup offers a sturdy and adaptable base for mounting your monitor. Its two-sided design provides flexibility in placement, guaranteeing excellent visibility and accessibility during shoots.

Axl Monitor Holder

Achieve smooth rotation and sag-free support with the Axl Monitor Holder. This holder provides sturdy mounting for your monitor in straight or 90-degree orientation. It guarantees zero flex, enabling secure mounting on any NATO rail for superior stability and reliability.

Square Crossbar

The square crossbar design guarantees your monitor remains securely in place, eliminating any risk of slipping or shifting from its position. Its lateral adjustment feature ensures a perfectly level horizon, enabling you to maintain ideal composition throughout your shoot.

User-Friendly Controls

With its sizeable knurled knob, winged levers, and convenient NATO safety button, this system is effortlessly operable in any setting or circumstance. Whether faced with challenging shooting conditions or time pressure, these intuitive controls guarantee seamless operation and enhanced efficiency.

Secure Rod Mounting

Included is the 15mm Rod Console that connects to the Sliding Top Plate. This rod mount securely grips the 15mm bars, creating a stable foundation for your Axl NATO mount, focus motors, and other accessories, ensuring stability and reliability in demanding shooting situations.

Compatibility

The Axl NATO Monitor Support System is designed to seamlessly integrate with a wide range of filmmaking equipment, providing versatile compatibility for various setups, mounting onto the included 15mm rod console or any other setup with 60mm spaced rods.

It is specifically engineered to support the Sony BURANO monitor, ensuring a perfect fit and stable mounting during filming.

Whether you’re using a shoulder rig, tripod, or gimbal system, the Axl NATO Monitor Support System offers compatibility and adaptability to suit your specific filming needs.

Installation

For the setup of the Axl NATO Monitor Support System, follow these steps. You will need 3mm and 4mm Hex keys to proceed.

Mounting the 15mm Rod Console & Axl NATO EVF Mount

Begin by installing the 15mm Rod Console onto B4004.1037 – Sliding Top Plate for Sony BURANO using a 4mm Hex key. Next, insert the two 15mm Drumstix rods and secure them by tightening the winged lever. For mounting the Axl NATO mount, loosen the knurled knob, slide it onto the bars, roughly position the pivoting NATO rail, and then tighten the knob.

Mounting the Monitor Bracket

Attach the monitor to the L-Bracket by securely fastening the two 1/4″ screws with a 3mm Hex key. Ensure they are tightened on the side and rear points of the monitor in an alternating pattern.

Mounting to the Axl NATO Clamp

To attach the monitor using the L-Bracket, start by loosening the drag knob. Rotate the Axl to ensure easy access to the mounting points. Align the mounting screws with the corresponding points on the L-bracket, opting for either a straight or 90-degree alignment. Use a 3mm Hex key to firmly secure the two 1/4″ screws in position. You are now ready to affix the NATO Monitor Holder onto the Axl NATO rail.

Part of the LeftField System

Consider enhancing your filmmaking setup with compatible accessories that seamlessly integrate with the Axl NATO Monitor Support System. Pair it with the LeftField 3 BUD baseplate for added stability and versatility, allowing you to easily transition between handheld and studio setups. For enhanced mobility, the D-Style Master Handle offers a comfortable grip and convenient carrying option.

Additionally, maximise your shooting capabilities with the KASBAH Ātman Shoulder Rig, perfect for documentary-style filming and extended shooting sessions. With these optional accessories, you can customise your setup to suit your specific filmmaking needs and elevate your production quality with ease.

Zero Compromises

There is so much on offer with the B4004.0051 – Axl NATO Monitor Support System for Sony BURANO and it is manufactured in the UK, ensuring it benefits from durability and functionality, making it perfect for any professional setup. At Bright Tangerine, we are on hand to provide customer support when you require it.
