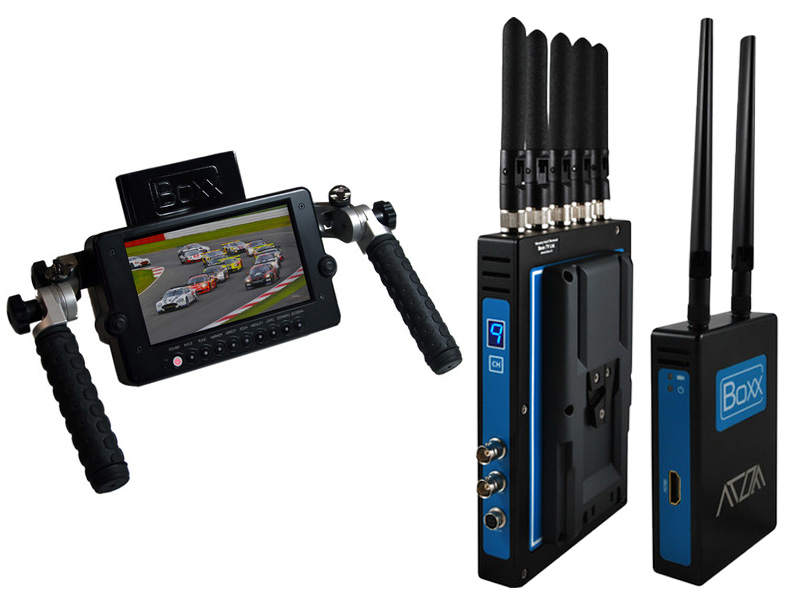

Boxx Atom Transmitter/Receiver System

Code: BOX/BOX-S-A

The Boxx Atom provides a zero delay microwave transmission solution for a host of Video Assist requirements in a small lightweight form factor.

For purchasing information

Enquire Now

Boxx TV Ltd. Atom Transmitter

The Boxx TV Ltd. Atom Transmitter works alongside the Atom receiver to transmit SD or HD signals up to 1080p60 up to 1968 feet. SDI and HDMI inputs ensure compatibility with both consumer and professional video sources. Use the included D-Tap cable to power the transmitter from a battery or other power source. One transmitter can broadcast to many receivers, so you can send video signals to a director, assistant director, focus puller, and more, without latency penalties or cables. Aside from setting the channel, the transmitter requires little setup and is ready to work out of the box.

Boxx TV Ltd. Atom Receiver (V-Mount)

The Boxx TV Inc. Atom Receiver works with an Atom transmitter to receive a video signal from up to 1968' away. HDMI and dual SDI outputs provide options for using consumer or professional video monitors, respectively. A separately available V-mount battery can power the receiver via the battery plate, and power can be passed through to a monitor with a V-mount plate while the receiver is sandwiched between the battery and the monitor. The Atom system utilizes the license-free 5 GHz band with manually selectable channels to sync up transmitters and receivers. Only minimal configuration is required to set up a transmitter/receiver pair. A power cable, BNC SDI cable, antennas, and a power supply are included.

Boxx TV Ltd. Atom Dual-Channel Director's Monitor (V-Mount)

The Boxx TV Ltd. Atom Dual-Channel Director's Monitor is a wireless monitoring solution that works with Atom and Atom Lite transmitters up to 328' away. Being a dual channel solution, this director's monitor can switch between viewing two signals, up to 1080p60 in resolution. Incoming video signals will be scaled to fit the 1024x600 LCD screen. Only minimal configuration is required to pair the receivers with respective transmitters, no external PC is needed. For power, this monitor features a V mount plate at the rear to draw from professional batteries.

Boxx TV Ltd. Atom Receiver (V-Mount)
Outputs SDI: 2 x BNC, HD-SDI
HDMI: 1 x HDMI
Modulation OFDM
Bandwidth 40 MHz
Operating Frequency 5.1-5.9 GHz
Maximum Operating Range 1968' / 600 m
Power Input 1 x 4-pin Hirose, 9-36 VDC
Mounting Threads 1 x 1/4"-20
1 x 3/8"-16
Operating Temperature 23 to 122°F / -5 to 50°C
Dimensions 7.4 x 5.2 x 1" / 18.8 x 13.2 x 2.6 cm
Weight 1.3 lb / 580 g (without battery plate)
Boxx TV Ltd. Atom Transmitter
Inputs SDI: 1 x BNC, HD-SDI
HDMI: 1 x HDMI
Outputs SDI: 1 x BNC, loop output
RF Power Output Up to 200 mW
Modulation OFDM
Bandwidth 40 MHz
Operating Frequency 5.1-5.9 GHz
Maximum Operating Range 1968' / 600 m
Power Input 1 x 4-pin Hirose, 9-36 VDC
Mounting Threads 1 x 1/4"-20
Operating Temperature 23 to 122°F / -5 to 50°C
Dimensions 4.4 x 2.8 x 1" / 11.1 x 7.1 x 2.5 cm
Weight 8.9 oz / 253 g
Boxx TV Ltd. Atom Dual-Channel Director's Monitor (V Mount)
Size 7" / 17.8 cm
Resolution 1024 x 600
Aspect Ratio 16:9
Panel Type LCD
Modulation OFDM
Bandwidth 40 MHz
Operating Frequency 5.1-5.9 GHz
Maximum Operating Range 328' / 100 m
Maximum Resolution Supported 1080p, 60 fps
