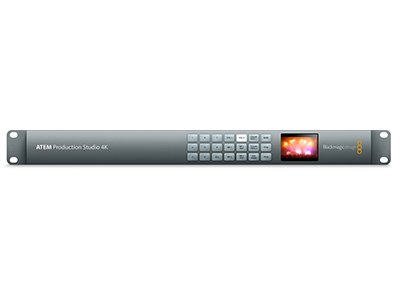

Blackmagic Production Studio 4K

Code: NMA/SWATEMPSW4K
ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections.

For purchasing information

Enquire Now

ATEM Production Studio 4K lets you connect up to 8 SD, HD or Ultra HD 4K video cameras, disk recorders and computers to do true broadcast quality work. You get all the features you expect from a professional switcher including chroma key, transitions, media pool, downstream keyers, audio mixer, multi view and the world's first 6G-SDI and HDMI 4K video connections.

The World's Most Advanced Live Production switchers!

Create stunning multi camera live production with the world’s most advanced production switchers! ATEM switches between SD, HD or Ultra HD video standards so you can form exciting live production with a wide range of video sources such as cameras, disk recorders and slide shows or animation from computers. You get powerful features such as chroma key, creative transitions, media pool, downstream keyers, audio mixer, multi view and more! The more advanced models include features such as up to 20 SDI inputs, SuperSource multi-layer engine, full motion DVE, stinger transitions, larger media pool with full motion clips and up to an incredible 6 auxiliary outputs!

Advanced Live Production

Creative features with advanced technology

Take your live production beyond broadcast quality! ATEM live production switchers have all the features you need for the most innovative live concerts, sporting events, theater productions, conferences and more! When you're doing live events with super large high resolution screens, then simply switch your ATEM live production switcher to Ultra HD for incredible quality. Many live events now use massive high resolution LED screens and projectors and now you can drive those screens in full resolution!

Innovative Design

Elegant machined metal design in a super compact size!

ATEM live production switchers feature an elegant machined aluminum front panel with dedicated buttons to let you switch auxiliary outputs. You can use the built in video screen to monitor auxiliary outputs or as technical monitoring to help during set up! You get the highest quality video and audio connections that switch virtually all SD, 720p HD, 1080i HD, 1080p HD and Ultra HD formats, plus built in multi voltage power supplies so you can take your switcher anywhere in the world!

Dual Media Players

Large graphics memory!

ATEM production switchers include media pool memory that lets you download still frames and graphics for keying using the two built in media players. All popular image formats are supported, or you can direct download from Photoshop CC with the included plug-in. ATEM Production Studio 4K models support up to 32 Ultra HD RGBA still frame graphics, while ATEM 4 M/E Broadcast Studio 4K supports 64 Ultra HD RGBA still frame graphics and 180 frames of real time Ultra HD video or 720 frames of real time 1080 HD video.

Highest Quality Connections

Connect to SDI and HDMI equipment in SD, HD and Ultra HD!

Inputs

ATEM switchers include advanced 6G-SDI and HDMI inputs that are SD, HD or Ultra HD switchable up to 2160p30 while the advanced ATEM Broadcast Studio 4K model features 20 12G-SDI inputs for working in HD and Ultra HD up to 2160p60. Every input supports embedded audio mixing and features a frame resynchronizer so you can use sources without genlock such as laptop computers for live PowerPoint™ presentations! You also get 2 balanced XLR audio inputs for connecting professional mixers and a HiFi audio input for consumer equipment like an iPod®.

Outputs

Get all the outputs you need to record your video master and to broadcast your program to the audience at the event! ATEM includes program and down converted program outputs plus auxiliary outputs allowing clean feeds, perfect for connecting to giant outdoor LED screens, projectors, disk recorders, monitors and broadcast decks! The multi view outputs are 1080i HD so you can use any TV or monitor. You also get a balanced XLR output of your audio mix, which is also embedded into all video outputs.

Total Video Inputs 8
Total Video Outputs 6
SDI Rates 270Mb, 1.5G, 3G, 6G.
Total Audio Inputs 2 x XLR. 2 x RCA.
Total Audio Outputs 2 x XLR Program.
Timecode Connection None
SDI Video Inputs 4 x 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
HDMI Video Inputs 4 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable. 2 channel embedded audio.
SDI Audio Outputs 2 channel embedded into SDI output.
Reference Input Tri-Sync or Black Burst.
Video Input Re-Sync On all 8 inputs.
SDI Program Outputs 1 x 10-bit SD/HD/Ultra HD 4K switchable.
HDMI Program Outputs 1 x HDMI type A, 10-bit SD/HD/Ultra HD 4K switchable
Down Converted SDI Program Outputs 1 x 10-bit HD (Ultra HD 4K to HD).
SDI Aux. Output 1
Quantity of Multi Views 1
Outputs per Multi View 1 x HD-SDI and 1 x HDMI.
Control Panel Connection Ethernet supports 10/100/1000 BaseT. Allows direct connection between panel and chassis, or via network.
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94
1080p23.98, 1080p24, 1080p25,
1080p29.97, 1080p50, 1080p59.94
1080i50, 1080i59.94
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 424M.
Video Sampling 4:2:2
Color Precision 10-bit
Color Space REC 601, REC 709
HDMI Input Resolutions for Computers 720 x 480i 59.97Hz, 720 x 576i 50Hz,1280 x 720 59.94Hz, 1280 x 720 50Hzand 1920 x 1080 59.94Hz,
1920 x 1080 50Hz,
3840 x 2160 23.98Hz,
3840 x 2160 24Hz, 3840 x 2160 25Hz,
3840 x 2160 29.97Hz.
Colorspace Conversion Hardware based real time.
Processing Delay 1 line
Audio Mixer 10 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video. Level and Peak metering. Master gain control. Analog outputs may be used for separate monitoring.
4K to HD Down Conversion Yes, program x 1.
Upstream Keyers 1 with Chroma/Linear/Luma key.
Downstream Keyers 2
Chroma Keyers 1
Talkback Support None
Mix Minus Support None
Linear/Luma Keyers 3
Transition Keyer (Stinger/DVE) None
Total Number of Layers 4
Pattern Generators 3
Color Generators 2
DVE with 3D Borders & Drop Shadow None
Display interface Minimum monitor resolution of 1366 x 768.
Number of Windows 1 x 10
Routable Windows 8
Tally Red for program and green for preview indication.
Windows Source Labels Yes
Control Panel Software or optional hardware panel.
Media Players 2
Media Pool Still Image Capacity 20 with fill and key.
Media Pool Clip Capacity None
Media Player Clip Length in 720 HD None
Media Player Clip Length in 1080 HD None
Media Player Clip Length in Ultra HD None
Media Pool Still Image Format PNG, TGA, BMP, GIF, JPEG and TIFF.
Media Pool Video File Format None
Media Pool Audio File Format None
Channels Fill and key for each Media Player.
Multi View Monitoring 1 x 10 Views.
Multi View Video Standard HD
Interface Minimum monitor resolution of 1366 x 768.
Front Panel Built in LCD monitor for video and 42 LED buttons for Aux switching.
Control Panel Included ATEM Software Control Panel included free for Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later and Windows 8.1 64-bit or Windows 10 64-bit.
Software Updates Using USB connection directly connected to Mac OS X or Windows computers. Includes ATEM Switcher Utility.
Configuration Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Switcher Utility connected via USB to chassis.
Tally Output Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included.)
Operating Systems Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan or later, Windows 8.1 or Windows 10.
Power Supply 1 x Internal 110 - 240V AC.
Power Usage 60W
Physical Specifications 482mm x 43mm x 147mm , 1.7kg
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 95% non-condensing
