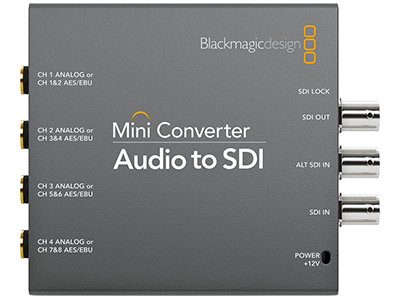

Blackmagic Mini Converter Audio to SDI 2

Code: NMA/CONVMCAUDS2
$325.00
Embed audio into any SDI source in SD and HD formats up to 1080p60

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Blackmagic Mini Converter Audio to SDI 2 is back in stock.

Embed audio into any SDI source in SD and HD formats up to 1080p60! Audio is input as balanced analog or AES/EBU using ¼ inch connectors from equipment such as mixers and analog decks. Mini Converter Audio to SDI is the ideal SD/HD SDI audio embedder for when you don’t need the cost of the Ultra HD model!

In addition to a dedicated SDI input the converter also features a redundant SDI input that allows you to run a back-up cable in case the first is lost in any way. This is useful in mission critical applications, especially outdoors or in crowded venues where there a higher chance of damage to the cable.

The Blackmagic Mini Converter Family

The new Blackmagic Mini Converter range are the worlds most advanced converters because they include the latest 6G-SDI technology, plus automatically detect the input video format and instantly change between virtually all SD, HD and Ultra HD video standards! Simply plug in and Mini Converters will convert between your equipment all automatically. You get advanced features such as redundant SDI inputs, re-clocked loop outputs and full analog and AES/EBU audio inputs and outputs so you can convert between formats as well as embed or de-embed audio all on the one converter! Choose from a range of 13 models depending on the conversion you need.

Easy To Use Features

Broadcast, post production and professional AV environments are built using SDI equipment and cabling. It’s essential when converting to and from SDI that you maintain the highest possible video and audio quality. Mini Converters are compact, affordable and easy-to-use. Settings can be changed quickly using built-in mini switches, and with a diagram showing pin settings printed on the back you never need to refer to a manual! Mini Converters use standard broadcast video and audio connections, so you get the convenience and cost savings of using your own cables

Standard Audio Connections

Mini Converters support embedded SDI and HDMI audio and several models let you separately embed or de-embed analog or digital audio. Mini Converters support 24 bit analog and AES/EBU audio and use standard 1/4" audio jacks so you don't need custom cables.

Powerful Performance

Unlike other converters that can be confusing to operate and sometimes identify, Mini Converters combine powerful performance with a simple, compact design! Built-in connections are easy to access and all use standard cables that you're already likely to own.

Highest Quality Processing

With the highest quality video processing, Mini Converters are ideal for all broadcast, post production and professional AV applications. Multiple internal power supplies ensure incredibly low noise levels when moving between analog and digital video formats.

Easy Settings Control

Changing Mini Converter's built-in mini switch settings is as easy as using a pen! This is great when you need to change settings quickly as there are no complicated menus to navigate! You can also control settings using the included Converter Utility software. Connect a Mini Converter to any Mac OS X or Windows based laptop or desktop computer! All models can be updated via USB 2.0 by simply downloading software upgrades directly from the Blackmagic Design website.

SDI Input 1 x SDI on BNC (switchable between 3G/HD/SD)
1 x 3G/HD/SD SDI redundant input (automatically switches over if main SDI input is lost)
Audio Input 4 x 1/4" jacks support 4 channels of balanced analog audio or 8 channels of balanced AES/EBU digital audio
SDI Output 1 x SDI on BNC (switchable between 3G/HD/SD)
SDI Auto Switching Auto-detection of 3G/2K/HD/SD SDI SDI
Updates and Configuration Via USB 2.0 high speed (480 Mbps)
Reclocking Yes
SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M‐B, SMPTE 425M, ITU‐R BT.656, ITU-R BT.601
SDI Video Rates SDI video connections are switchable between HD and SD
SDI Video Sampling 4:2:2, 4:4:4
SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit
SDI Color Precision 4:2:2, 4:4:4
SDI Color Space YUV, RGB
SDI Auto Switching Automatically selects between 3G/HD/SD
SDI Format Support 1080p/i at 60/59.94/50
1080p at 30/29.97/25/24/23.98
1080PsF30/29.97/25/24/23.98
720p60/59.94/50
525i59.94 NTSC
625i50 PAL
2K Format Support 2K DCI 25p/24p/23.98p
2K DCI 25PsF/24PsF/23.98PsF
Software Control Mac OS X and Windows software upgrade via USB
Internal Software Upgrade Via included updater application
Operating System Mac OS X 10.11 El Capitan, macOS Sierra or later
Windows 8.1 or Windows 10
Settings Control Mini Switches or USB software
Power Supply +12 V universal power supply included with international socket adapters for all countries. Cable tie point.
Power Consumption 8.4 W
Operational Voltage Range 12 VDC
Operating Temperature 32 to 104°F (0 to 40°C)
Storage Temperature -4 to 113°F (-20 to 45°C)
Relative Humidity 0 to 90% non-condensing
Dimensions 4.5 x 3.6 x 0.9" (11.5 x 9.2 x 2.3 cm)
Weight 7.6 oz (215 g)
