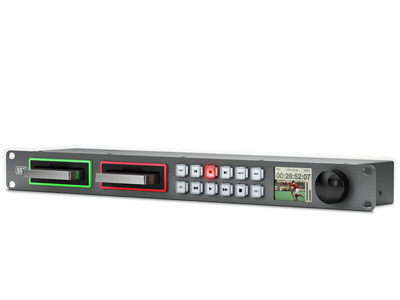

Blackmagic Hyperdeck Studio 2

Code: NMA/HYPERDST2
$1,460.00
The world's first SSD video recorder that lets you record forever! HyperDeck Studio features dual SSD slots and automatically continues recording onto the next SSD when one record disk fills. HyperDeck Studio records and plays back uncompressed QuickTime, compressed Apple ProRes 422 (HQ), ProRes 422, ProRes 422 (LT), ProRes 422 (Proxy) or compressed Avid DNxHD MXF files. HyperDeck Studio has a familiar deck style user interface, removable SSD disks and serial control for a 21st century broadcast deck.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

HyperDeck Studio is a broadcast HD based, solid state deck that includes 3G-SDI and HDMI connections so you can work in all SD and HD formats up to 1080p30. You get familiar VTR style controls so it’s just like using a traditional broadcast deck, along with compressed or uncompressed 10-bit 4:2:2 broadcast quality recording. The low cost makes it easy to install multiple units when you need ISO recorders, mastering for SD and HD, or doing long form logging.

Professional broadcast decks that use fast solid state disks

HyperDeck Studio disk recorders let you record the highest quality uncompressed or compressed ProRes and DNxHD video formats using fast 2.5" SSDs. Designed with familiar VTR controls, HyperDeck Studio includes innovative features that extend beyond the capabilities of traditional decks. Dual SSD slots let you record continuously, so when one disk is full recording automatically continues on the next SSD. You can mount an SSD recorded from HyperDeck Studio on any computer to access your files, so you can work with your media directly without copying the files! There are three great HyperDeck Studio models to choose from depending on your budget and what video formats you need to work with!

Choose from three fantastic HyperDeck Studio models

HyperDeck Studio

HyperDeck Studio is a broadcast HD based, solid state deck that includes 3G-SDI and HDMI connections so you can work in all SD and HD formats up to 1080p30. You get familiar VTR style controls so it’s just like using a traditional broadcast deck, along with compressed or uncompressed 10-bit 4:2:2 broadcast quality recording. The low cost makes it easy to install multiple units when you need ISO recorders, mastering for SD and HD, or doing long form logging.

HyperDeck Studio 12G

When you need to go beyond 1080p30, HyperDeck Studio 12G is a more advanced version of HyperDeck Studio. Featuring 12G-SDI connections and HDMI 2.0, HyperDeck Studio 12G works with all SD, HD and Ultra HD formats up to 2160p60 over a single cable. You still get all of the benefits of HyperDeck Studio, including its familiar VTR style deck controls and broadcast quality compressed and uncompressed 10-bit 4:2:2 recording.

HyperDeck Studio Pro

HyperDeck Studio Pro is the ultimate in compatibility and technology, featuring a more advanced design that includes 6G-SDI so you get SD, HD and Ultra HD formats, plus HyperDeck Studio Pro includes a wide range of video and audio connections in both analog and digital so you get the widest compatibility with older and newer equipment. Get SD, HD up to 1080p60 and Ultra HD up to 2160p30 all in the one deck! Also includes 6G-SDI and Quad Link SDI, HDMI 4K, analog component, balanced analog audio and AES/EBU audio compatibility. You even get UltraScope software for live scopes!

Full 10-bit Quality

Record 10-bit 4:2:2 broadcast quality video

HyperDeck Studio records SD/HD 10-bit 4:2:2 uncompressed video for perfect broadcast quality. With uncompressed video you can create the sharpest VFX plates for match moving, compositing and more. You get deep dynamic color range for color correction and perfect keying without jagged edges. You can also use industry standard compressed video formats that maintain incredible HD quality at reduced files sizes. With HyperDeck Studio 12G and HyperDeck Studio Pro you can now push quality to new heights, with additional support for Ultra HD using multiple high quality ProRes file formats.

Industry Standard Formats

Record uncompressed, ProRes and DNxHD

HyperDeck Studio models gives you the choice of recording quality! You can record and play back incredible uncompressed 10‑bit 4:2:2, or choose from high quality ProRes 422 HQ or DNxHD formats. HyperDeck Studio models have ProRes 422, ProRes 422 LT or ProRes 422 Proxyfor longer recording. Using ProRes 422 Proxy you can record over 24 hours of 1080HD video on a single 480GB SSD drive! You could record for 2 days non stop before swapping SSD drives!

Unparalleled File Compatibility

Saves files that are ready to be used in production!

HyperDeck Studio records the widest compatible QuickTime files in 10‑bit uncompressed or compressed formats. Depending on your format and frame rate, you can choose to record uncompressed QuickTime, ProRes or DNxHD files. That means you can instantly record files that will work with the most popular software packages such as DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro, After Effects, Media Composer and more. HyperDeck Studio gives you compatible files so you’re free to choose the editing, color correction and finishing tools that are best for your clients and their jobs.

Connections
SDI Video Inputs 1
SDI Video Outputs 2
SDI Rates 270Mb, 1.5G-SDI, 3G-SDI.
HDMI Video Inputs 1 x HDMI type A connector.
HDMI Video Outputs 1 x HDMI type A connector.
Analog Video Inputs None.
Analog Video Outputs None.
Analog Audio Inputs None, embedded audio only.
Analog Audio Outputs None, embedded audio only.
Timecode connections None.
SDI Audio Inputs 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
SDI Audio Outputs 16 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Inputs 8 channels embedded in SD and HD in QuickTime files. 2 channels in Avid DNxHD MXF files.
HDMI Audio Outputs 2 channels.
Reference Input Tri-Sync or Black Burst.
Reference Indicator None
Recorder Configuration Front panel configurable or USB 2.0 high speed interface.
Computer Interface 1 x type B USB 2.0 port for initial setup, software updates and HyperDeck Utility software control.
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards None.
SDI Compliance SMPTE 259M, SMPTE 292M
SDI Metadata Support HD RP188 and closed captioning.
Audio Sampling Television standard sample rate of 48kHz and 24-bit.
Video Sampling 4:2:2
Color Precision 10-bit
Color Space REC 601, REC 709
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Media
Media 2 x SSD for SD and HD recording.
Media Type SATA-II or SATA-III solid state disc.
Media Format Can format discs to ExFAT for Windows and Mac or HFS+ for Mac file systems.
Supported Codecs Uncompressed QuickTime, ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime, Avid DNxHD QuickTime, Avid DNxHD MXF up to 1080i60
Computer Capture None.
Control
Built in Control Panel 12 buttons for transport and menu control, 2.2 inch color display.
External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol.
Software
Software Included Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
Internal Software Upgrade Firmware built into software driver. Loaded at system start, or via updater software.
Display Built in LCD for video, audio and timecode monitoring and menu settings.
Physical Installation 1 rack unit size. Less than 7 inches deep.
Other Specs
Operating Systems Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 and 10.
Power Supply 1x Internal 100-240V AC.
Physical Specifications 482 x 157 x 44mm
Weight 2kg
Operating Temperature 5° to 40° C (41°vto 104° F)
Storage Temperature -20° to 45° C (-4° to 113° F)
Relative Humidity 0% to 90% non-condensing
