Blackmagic HyperDeck Studio Mini

Code: NMA/HYPERDSTM
$1,260.00
The world’s smallest Ultra HD broadcast deck with professional 10 bit recording and playback, dual SD/UHS-II card recorders, FTP media upload and more!

ENQUIRE NOW

Got a question about this product?
Send us a message

Low Stock

Limited Stock - Call for availability

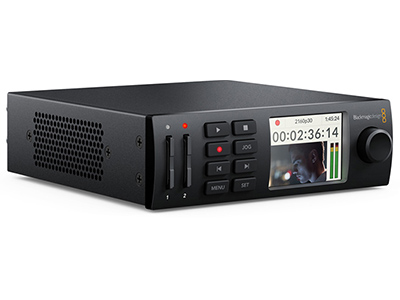

HyperDeck Studio Mini is a miniaturized broadcast deck that’s so compact and portable you can use it anywhere! You get a choice of incredible quality H.264, ProRes or DNx codecs recorded to SD or UHS-II card media in either QuickTime or MXF file formats. HyperDeck Studio Mini has features such as 6G-SDI for all formats up to 2160p30, HDMI for monitoring, dual SD card slots for non-stop recording and built in sync generator that lets you daisy chain and synchronize multiple decks together! The dual link 6G-SDI out can be used for fill and key playback! HyperDeck Studio Mini includes RS-422 deck control, built in AC power and Ethernet with PoE+ for alternate power.

Professional Broadcast Deck

Perfect for broadcast mastering, ISO recording and digital signage.

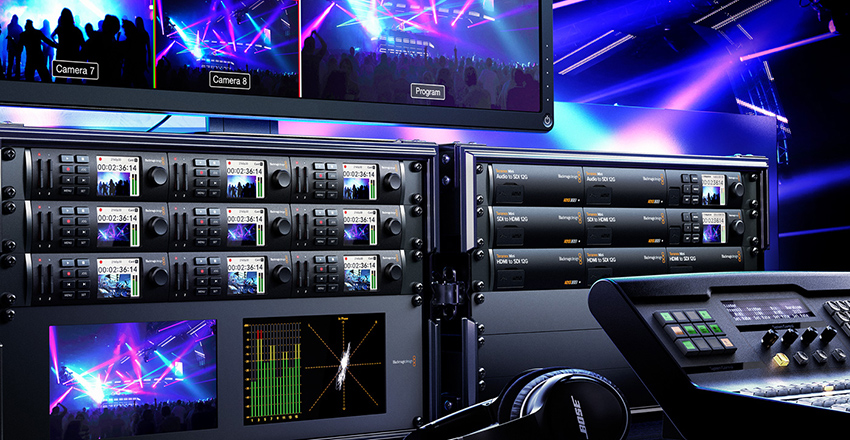

HyperDeck Studio Mini is perfect for use as a master program recorder during live multi camera production, or as an ISO recorder from your cameras so you can edit the final program later. HyperDeck Studio Mini is also a powerful clip player for playback directly to air, or even as a client preview deck in a conference room with a large HDMI television. Because you can lock and sync the playback of multiple units together, it’s ideal for high resolution digital signs that use multiple screens. The separate fill and key SDI outputs let you use it to play animated broadcast graphics with an alpha channel for keying over live video with a live production switcher, all in real time!

Portable Elegant Design

Incredibly small design with powerful full size deck features!

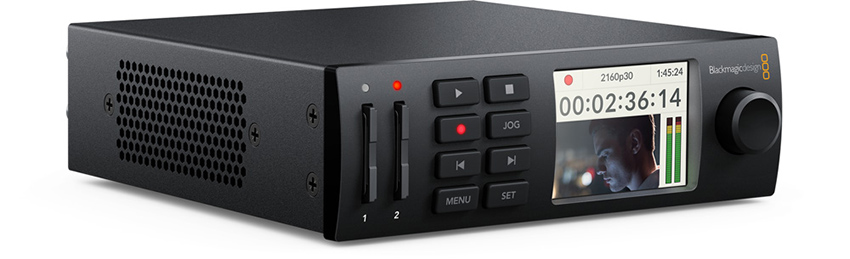

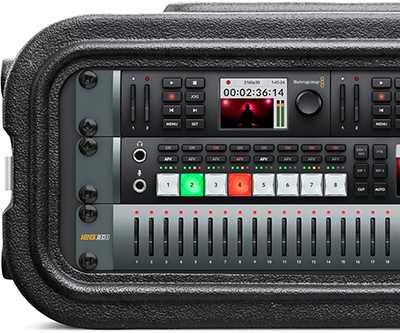

HyperDeck Studio Mini features dual SD card recorders, professional connections, ethernet, built in power and much more, all miniaturized into an elegant 5.5 inch wide compact and modular design. You can rack mount it using the optional Teranex Mini Rack Shelf and combine it additional modules to create a customized deck! For example, if you need to work with analog material, you can combine it with a Teranex Mini Analog to SDI converter on the input and a Teranex Mini SDI to Analog converter on the output to create an analog deck! To create a deck with eight mirrored outputs, use it with a Teranex Mini SDI Distribution 12G. If you're not using it in a rack, HyperDeck Studio Mini’s elegant design also looks great when used on the desktop. It’s the world’s most sd-card professional deck!

Professional Connections

Get 6G‑SDI, HDMI monitoring, reference, RS‑422 control and more!

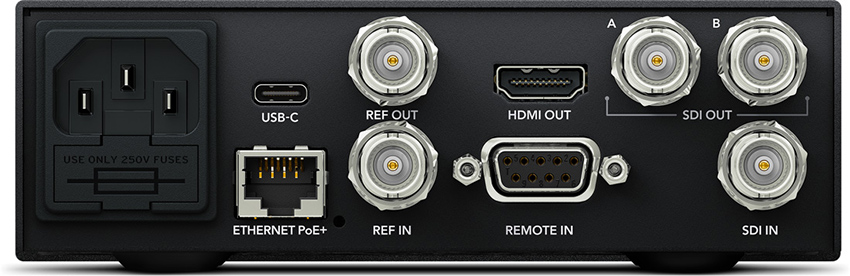

HyperDeck Studio Mini features multi rate 6G-SDI connections so you can work with all SD, HD and Ultra HD formats up to 2160p30. You get an SDI input and two SDI outputs that can be used for fill and key. The HDMI output makes HyperDeck Studio Mini perfect for connecting to big screen televisions, projectors and digital signs. For large digital signage, there's reference input and a reference generator with reference output that lets you sync multiple HyperDecks for ganged playback. You also get RS‑422 deck control, Ethernet and built in 110‑240V AC power supply. There’s even an SDK and easy to use Ethernet protocol, so you can develop your own custom solutions!

Familiar VTR Controls

Easy to use, no training required!

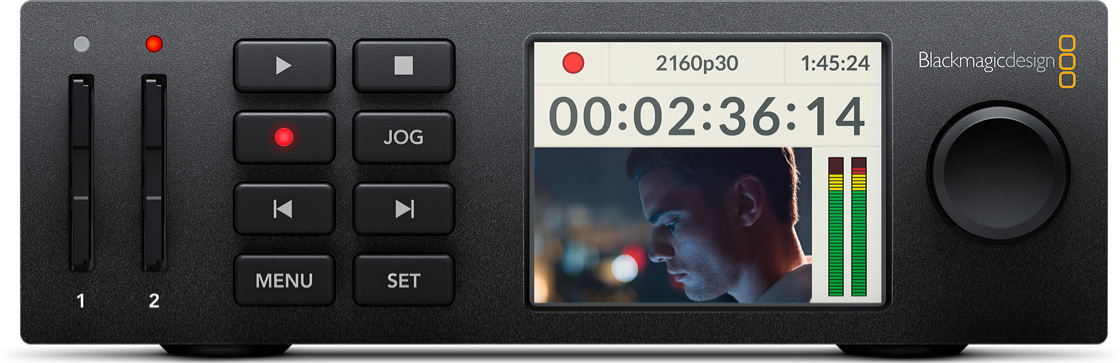

HyperDeck Studio Mini features traditional deck style transport controls, including a small search dial for jog and shuttle. The compact LCD shows timecode and transport information, plus a full color thumbnail preview of the current clip in record or playback. It also displays information about each card’s recording status, along with video format, frame rate information and audio levels, all on the same display! The combination of familiar VTR style controls and the built in LCD screen makes HyperDeck Studio Mini incredibly fast to use and very easy to learn!

SD Card Media

Use affordable and popular SD cards and UHS‑II cards!

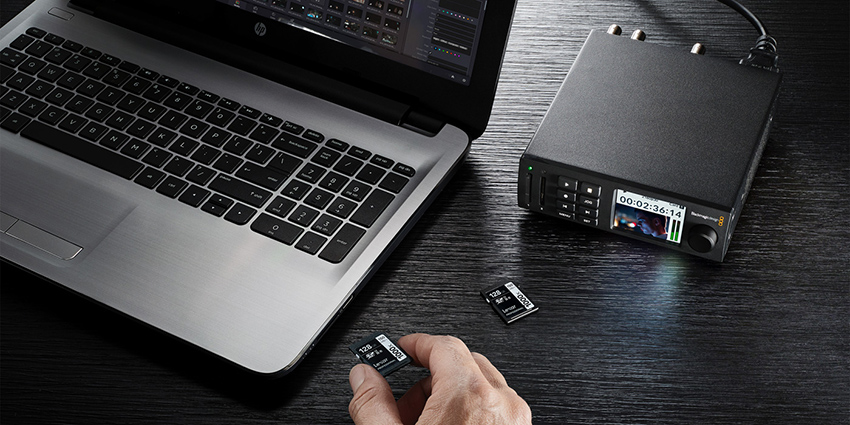

SD cards are commonly available, inexpensive and extremely reliable, which makes them perfect for use as professional broadcast media storage. Best of all, unlike mechanical hard disks, you get zero latency and instant playback. HyperDeck Studio Mini records to both regular SD cards and high performance UHS-II cards. You can use standard SD cards, or UHS-II cards when you want to record Ultra HD. SD cards are incredibly tiny, so you can create an archival library of your content that takes up a fraction of the space required by old tapes and disks! Plus now with the latest software update, HyperDeck Studio Mini recordings can be more than 3 hours long in a single file!

Non-Stop Recording

Swap out when cards become full, even while recording!

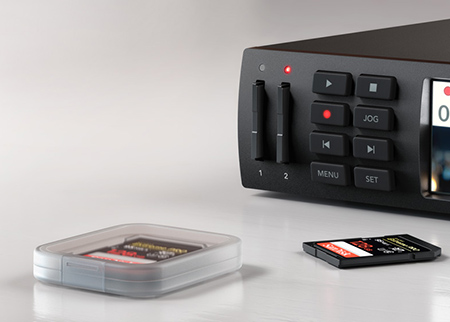

HyperDeck Studio Mini features dual media slots for non stop recording. When the recording card becomes full, recording automatically continues onto the next card. That means you'll never have to worry about missing an important shot. That’s perfect when recording at longer live events because the cards are also hot swappable, so you can swap a full card for an empty one while recording continues in the other slot! Each slot has an indicator light that changes color to show status so you’ll instantly know which card is in use. HyperDeck Studio Mini is repairable as the SD card slots use individual internal PCB’s that can be replaced if the slot ever becomes worn out from heavy use.

Broadcast Quality Video

Records to post production friendly ProRes and DNx files

HyperDeck Studio Mini records video as standard ProRes files, which is one of the most widely accepted professional video file formats in the world! You get high quality 10‑bit YUV or 10‑bit RGB recording in all formats up to 2160p30, recorded onto ExFAT or HFS+ formatted media cards. The ProRes files are compatible with software such as DaVinci Resolve and Final Cut Pro X, so you can simply insert the card into your computer and start editing, without converting files! You even get support for ProRes 4:4:4:4 in HD with image and alpha channels. That's perfect for playing broadcast graphics out as fill and key to live production switchers for keying graphics and stingers over live video!

Includes 1G Ethernet

Get remote control and fast file transfer speeds via FTP!

Built in 1G Ethernet means HyperDeck Studio Mini is perfect for broadcast server and digital signage use. With the latest software updates, you can now transfer up to 110 Megabytes per second, which is so fast it allows you to copy video files as fast as the SD card can handle it! To upload media files remotely, you can use the FTP protocol or use common FTP client software. There are many types of FTP software available for uploading files. You can also remote control HyperDeck using an easy text based protocol, so it's easy to use simple Telnet to test your control commands. Simply log into HyperDeck and then type "play" or "record" and it will execute the command. It's that simple!

Works with Professional Software

Record files that are ready for editing, grading and distribution!

HyperDeck Studio Mini records files that are compatible with virtually all post production software. When recording in H.264, you can upload files from HyperDeck Studio Mini direct to streaming services such as YouTube, Facebook, Vimeo, Twitter and more! If you are working with popular editing software such as DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro or Avid Media Composer, you can start editing and color correcting without having to transcode or convert the files. Even motion graphics and visual effects artists using software like Fusion and After Effects can easily work with the files!

Specifications

Connections
SDI Video Inputs 1
SDI Video Outputs 2
SDI Rates 270Mb, 1.5G-SDI, 3G-SDI, 6G-SDI
HDMI Video Outputs 1 x HDMI type A connector.
Power over Ethernet 1 x Ethernet with Power over Ethernet
Analog Audio Inputs None, embedded audio only.
Analog Audio Outputs None, embedded audio only.
SDI Audio Inputs 16 channels embedded in SD and HD in QuickTime files.
SDI Audio Outputs 16 channels embedded in SD and HD in QuickTime files.
HDMI Audio Outputs 8 channels embedded in SD, HD and UHD in QuickTime files.
Reference Input Tri-Sync or Black Burst.
Reference Generator Tri-Sync or Black Burst.
Computer Interface 1 x USB 2.0 type C for software updates and HyperDeck Utility software control.
Standards
SD Video Standards 525i59.94 NTSC, 625i50 PAL
HD Video Standards 720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
SDI Compliance SMPTE 259M, 292M, 296M and 425M
SDI Metadata Support HD RP 188 and closed captioning.
Audio Sampling Television standard sample rate of 48kHz and 24-bit.
Video Sampling 4:4:4:4
Color Precision 10-bit
Color Space REC 601, REC 709
Media
Media 2 x SD for SD, HD and Ultra recording.
Media Type UHS II and able to support ProRes 4444 playback and 422 recording.
Media Format Can format discs to ExFAT (Windows/Mac) or OS X Extended (Mac) file systems.
Supported Codecs DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR HQX MXF, DNxHR SQ MXF, DNxHR LB MXF. ProRes 422 HQ QuickTime, ProRes 422 QuickTime, ProRes 422 LT QuickTime, ProRes 422 Proxy QuickTime. ProRes 4444 QuickTime in HD for fill and key playback, H.264 in 720p and 1080p.
FTP Clients Cyberduck, Transmit, FileZilla
Control
Built-in Control Panel 8 buttons for menu control, 2.2 inch color display, and a rotary wheel.
External Control RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck SDK and Ethernet HyperDeck Control Protocol. Supports remote FTP file upload.
Software
Software Included Media Express, Disk Speed Test, Blackmagic System Preferences and Blackmagic driver (Mac only).
Internal Software Upgrade Firmware built into software driver. Loaded at system start, or via updater software.
Displays Built in LCD for video, audio and timecode monitoring and menu settings
2 x LED indicator lights above the SD slots.
Physical Installation 1/3 rack unit size. Less than 7 inches deep.
Operating Systems Mac 10.14 Mojave,
Mac 10.15 Catalina or later.
Windows 8.1 or Windows 10.
