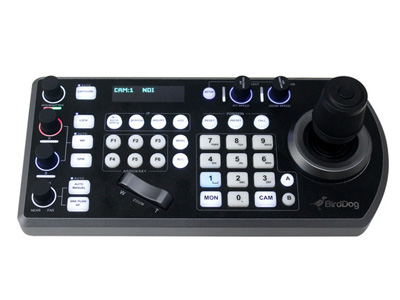

BirdDog PTZ Keyboard with NDI

Code: BLO/BDPTZKEY
$2,600.00

BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

World’s First NDI PTZ Controller.

BirdDog PTZ Keyboard is a full featured PTZ Keyboard that supports NDI, NDI|HX, Visca over IP, RS422, and RS232. By harnessing BirdDog’s next generation NDI and IP technology, it’s never been easier to discover, connect, and control your PTZ cameras. Featuring superior ergonomics, premium buttons and joystick, all in a beautiful form factor this is the PTZ controller you have been waiting for.

Universal control. Mix and Match protocols.

Never before has a PTZ controller been so flexible. PTZ Keyboard is the world’s first PTZ controller with NDI and NDI|HX support. Along with NDI there is support for Visca over IP, RS422, and RS232. You can mix and match cameras from any of the supported protocols and control them all from a single PTZ Keyboard.

Superior Ergonomics. Built for Humans.

Using the PTZ Keyboard is a breeze with well thought out button layout. Quickly access all the cameras on the network, and set up quick access buttons for all your favourite settings such as Exposure, Focus, Zoom, and movement speeds.

3-Way Joystick. Pan, Tilt, Zoom.

Effortless, one handed control of Pan, Tilt, and Zoom is possible with the 3-Way Joystick. For those who prefer a zoom rocker there is also one of those exactly where your left hand wants it.

Soft touch buttons. Treat your fingers.

Your fingers will thank you for using the PTZ Keyboard. Soft-touch silicon buttons and easy turn dials give a premium sensation while achieving the responsiveness you expect and deserve.

6 program buttons. Work how you want to work.

Set up your quick access buttons to work the way you want. Exposure, Focus, PT Speed, Zoom, Shutter Speed, Iris, White Balance, Compensation, and more, can all be programmed into the assignable buttons.

By the power of PoE. You have the power.

Super flexible powering options allow you to power the PTZ Keyboard from Power over Ethernet (PoE), DC in, or even over the serial port. Never get stuck in a situation where you can’t power up.

Control 255 cameras. Yes, 255.

Designed to control up to 255 PTZ cameras on a single network, PTZ Keyboard can scale to even the most complex installations.

Free Comms Lite. Upgrade to Comms Pro.

PTZ Keyboard includes free Audio Intercom software, Comms Lite. Comms Lite supports four BirdDog devices and one Director.

Need a more powerful Audio Intercom solution? Comms Pro gives you all the amazing features of Comms Lite plus allows you create you up to five groups, adds additional push to talk buttons for the director, ability to change groups on the fly, plus more.

Specifications

ConnectorsLAN: 1 x RJ45 (with PoE) 100 Base-TX
RS-232: 1 x RJ45
RS-422: 2 x RJ45
Protocols SupportedNDI, NDI|HX
VISCA over IP
RS-232 / RS-422: Baud Rate 2400 / 4800 / 9600 / 19200 / 38400
Display TypeLED
Serial ConnectionRS-232: 7
RS-422: 7
Buttons & Controls1 x Pan/Tilt Knob
1 x Zoom Knob
1 x Zoom Rocker
1 x Zoom Ring Joystick
6 x Programmable Function Buttons
1 x Exposure Selection
1 x White Balance
1 x White Balance Mode Selection
1 x Backlight Control
1 x WB, Iris, Gain, Shutter, Focus Status
1 x R, B, Gain Knob
1 x Iris Adjustment Knob
1 x Shutter Speed Knob
1 x Focus Model Selection
1 x One-Push Auto-Focus
1 x Manual Focus Knob
Power Input12 VDC, PoE, Power over Visca, Power over RS-232/RS-422
Current3 W
Operating Temperature32 to 104°F / 0 to 40°C
Dimensions10.9" x 5.2 x 3.9" / 27.8 x 13.2 x 10 cm
