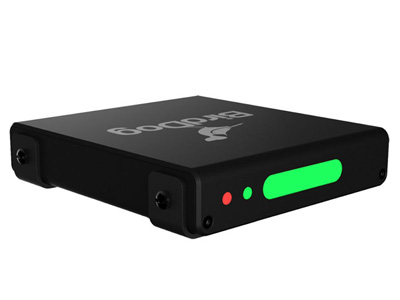

BirdDog Mini HDMI NDI Encoder-Decoder

Code: BLO/BDMINIHDMI
$850.00

Big things come in small packages. Utilising BirdDog’s custom NDI silicon chip and housed in aircraft grade aluminium case, Mini is the ultimate entry point into the world of NDI Encoding and Decoding. Featuring HDMI inputs and outputs, Active Loop Outs, Audio Intercom System, NDI Tally System, PoE, and compatibility with BirdDog’s Comms and Central Apps.

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock

Out of stock - Call for availability

The BirdDog Mini HDMI to NDI Encoder is a tiny NDI interface for HDMI video sources. Connect your camera or other video source, and have it instantly be available on your NDI-enabled network. Despite its size, the BirdDog Mini supports 1080p resolutions up to 59.94 fps. PoE is accepted, so the Mini can be powered via network connection; no power supply needed. Tally information is displayed and passed through to compatible equipment. The small size of the Mini will make it at home in studios and video production facilities utilizing NDI technology.

Tally Support

A built-in bi-color tally display can show video source on-air info. Tally information is also passed through to supported monitoring equipment.

Flexible Power Options

Power the Mini via DC input from your camera battery's D-tap, or use a separately available power adapter. Power can also be supplied over Ethernet using a PoE-enabled switcher or injector.

Comms

The Mini natively supports BirdDog Comms technology.

BirdDog Link

The Mini supports BirdDog Link. Encode from any BirdDog Studio NDI or Mini and play out to a TV or monitor.

Specifications

Video Format Support1080p 59.94/50/29.97/25/23.98
1080i 29.97/25
720p 59.94/50
NTSC
PAL
ConnectionsVideo Input: 1 x HDMI type A v1.4a, RGB/YCbCr, 2-channel audio
Video Output: 1 x HDMI type A v1.4a, RGB/YCbCr, 2-channel audio
Network: 1 x RJ45 with PoE (Power over Ethernet)
Power InputDC Input: 5-18 VDC, 7 W max draw
PoE: IEEE 802.3af/at
Dimensions3.9 x 4.3 x 0.9" / 98 x 110 x 22 mm
Weight7.1 oz / 200 g
