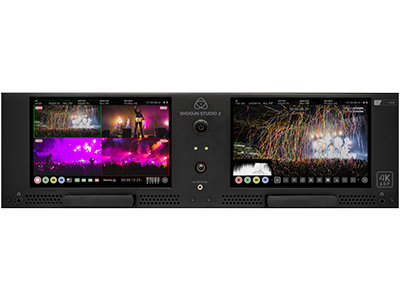

| Weight |
| Weight |
5.0kg / 11lb |
| Rack height |
3Ru |
| Rack mounting |
Removable rack ears |
| Dimensions (W x H x D mm) |
447 x 152 x 280mm, 17.6 x 6.0 x 11.0”(without rack ears)
490 x 152 x 280mm, 19.3 x 6.0 x 11.0” (with rack ears) |
| Power |
| Operating power (including SSD) |
20 - 86W |
| Touchscreen |
| Size |
7.2” |
| Resolution |
1920 x 1200 |
| PPI |
325 |
| Aspect ratio |
16:9 native |
| Color Gamut |
Up to Wide color gamut (105% DCI-P3) |
| Look up table (LUT) support |
3D LUT (.cube format) |
| Technology |
SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional X-Rite unit |
| Anamorphic de-squeeze |
2x, 1.5x, 1.33x, Panasonic 4:3 |
| Technology |
Dynamic AtomHDR zoned backlight |
| Dynamic AtomHDR Technology |
| Zones |
360 direct backlight individual LEDs |
| LEDs |
Wide Color Calibrated D65 or D95 |
| Bit depth |
10-bit (8+2 FRC) |
| Color |
DCI-P3 105% |
| Brightness |
3000nit (+/- 10%) |
| Control |
On the fly real-time brightness analysis for LED control |
| HDR Conversion |
Log/RAW to HLG or PQ, Dolby Vision Loop out |
| HDR Monitoring Technology |
| Gamma |
Sony SLog / SLog2 / SLog3 Canon CLog / CLog2 / Clog3 ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / Log- CEI1600 Panasonic Vlog JVC JLog1 RED Log3G10 / RED LogFilm / FujiFilm F-log / Nikon N-Log PQ10k and HLG |
| Gamut |
Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Nikon BT2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 |
| Video input/loop out |
| HDMI |
HDMI 1 x HDMI (2.0)** |
| SDI |
Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2x 12G single link SDI |
| Signal (camera dependent) |
Uncompressed true 10-bit or 8-bit 422 |
| LTC (Record Mode Only) |
LTC input signal and loop out |
| Genlock (Playback Mode Only) |
Genlock input signal and loop out |
| Video output (play out) |
| HDMI |
1 x HDMI (2.0)** |
| SDI (Play Out) |
1 x Single link SDI 12G/6G/3G/1.5G, Optional 2nd SDI output available in Playback mode |
| Signal |
Uncompressed true 10-bit or 8-bit 422
(playback file dependent)
|
| Video Signal Conversion |
| HDMI to SDI |
720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60 |
| SDI to HDMI |
720p 50/60, 1080i 50/60,
1080p 24/25/30/50/60/100/120/200*/240*
2160p 24/25/30/50/60 |
| Signal |
Uncompressed true 10-bit or 8-bit 422
(playback file dependent)
|
| Audio in/out (48kHz PCM audio) (Per Channel) |
| HDMI |
2 or 8ch 24-bit, camera dependent |
| SDI |
12ch 48kHz 24-bit |
| Audio |
2ch balanced XLR analogue in/out Dynamic range >90dB
Max signal level +24dBu
3.5mm 2ch. |
| Supported Codecs & frame rates (record & playback) |
| Raw to: |
ProRes RAW, ProRes
CinemaDNG (CDNG up to 30p only)
Avid DNxHD
|
| Onboard processing |
| Pulldown removal |
24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
|
| 4K UHD downscale for HD monitoring |
Yes - Loop-out and playback (Not available in all RAW modes)
|
| Remote control |
| HDMI |
Auto HDMI Trigger
Supported Protocols - Dolby Vision, Canon, Sony, Atomos Open Standard
|
| RS422* |
9pin transport control on qualified controllers |
| SDI |
SDI trigger camera selectable |
| Other |
LANC control - Slave / Calibration on front. Serial - Calibration on front |
| Playback |
| Playlist / Genlock / LTC |
Yes / Yes / No |
| ProRes (Recorded content) |
All recorded files can playback.
Playback in slow motion >= 100fps. |
DNxHR / DNxHD
(recorded content) |
All recorded files can playback.
Playback in slow motion >= 100fps. |
| Recording |
| Pre-roll record |
Yes (HD 8s, 4K 2s) |
| ISO Record |
Up to 8 streams in 60pHD in parallel |
| Custom timelapse |
Yes* |
| Supported media |
2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/ drives for list of tested and approved drives |
| Supported applications |
Final Cut Pro / Media Composer / Premiere Pro / After Effects / EDIUS / Vegas Pro / Lightworks / Autodesk Smoke |
