Physical |
Dimensions | 151mm x 92mm x 36mm |
Weight | 400gms |
Mount points | 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom |
Environmental |
Ambient operating temperature | Up to 40 degrees Celsius |
Construction |
Body | Aluminium with ABS plastic |
Cooling | Actively controlled fan and heat sink |
Power |
Input voltage | 6.2V to 16.8V DC |
Operating power | Up to 30W |
Multi-function button | Power / lock screen |
Continuous power | Via NP-F battery or USB-C PD Power |
DC in connector | Via Battery Eliminator (optional) |
DTAP | Up to 13W |
USB PD IN | 45W capable, power supply required |
USB PD OUT | Up to 13W |
Display |
Size | 5.2-inch |
Resolution | 1920 x 1080 |
Backlight Type | Edge lit |
Brightness (cdm2 / Nits) | 1500 |
Aspect ratio | 16:9 |
Color Gamut | Rec.709 |
Calibration support | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable |
Color Pipeline |
Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
Gamut | BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
3D LUT Display | .Cube format |
3D LUT Down Stream | Loop out |
3DLUT 50/50 | Yes |
Monitoring Modes | Native / HLG / PQ / 3D LUT |
HDR Output Conversion | Log / HDR to HLG / PQ |
Video Input |
HDMI | 1 x HDMI 2.0 |
Locking port | Bracket provided; HDMI locking cable purchased separately |
SDI | 12G |
Wi-Fi | Wi-Fi 6E |
USB | 2 x USB-C 2.0/3.0 |
Bit Depth | 8/10-bit video |
Video Chroma Subsampling | 4:2:2 |
Video Output |
HDMI | 1 x HDMI (2.0) up to 4K60P |
Locking port | Optional |
SDI | 12G |
Wi-Fi | Wi-Fi 6E |
USB | 2 x USB-C 2.0/3.0 |
Bit Depth | 8/10-bit video |
Video Chroma Subsampling | 4:2:2 |
Physical |
Dimensions | 151mm x 92mm x 36mm |
Weight | 400gms |
Mount points | 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom |
Environmental |
Ambient operating temperature | Up to 40 degrees Celsius |
Construction |
Body | Aluminium with ABS plastic |
Cooling | Actively controlled fan and heat sink |
Power |
Input voltage | 6.2V to 16.8V DC |
Operating power | Up to 30W |
Multi-function button | Power / lock screen |
Continuous power | Via NP-F battery or USB-C PD Power |
DC in connector | Via Battery Eliminator (optional) |
DTAP | Up to 13W |
USB PD IN | 45W capable, power supply required |
USB PD OUT | Up to 13W |
Display |
Size | 5.2-inch |
Resolution | 1920 x 1080 |
Backlight Type | Edge lit |
Brightness (cdm2 / Nits) | 1500 |
Aspect ratio | 16:9 |
Color Gamut | Rec.709 |
Calibration support | Calibrite Display Pro or Display Plus on PC/Mac with Atomos LANC cable |
Color Pipeline |
Gamma | Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320, / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log |
Gamut | BT.2020, DCI P3, DCI-P3 D65, Rec709. Sony: S-Gamut / S-Gamut3 / S-Gamut3.cine / BT.2020 / Rec.709. Canon Cinema: DCI P3 / DCI P3plus / Rec.709. Panasonic: V Gamut. ARRI: Alexa Wide Gamut. JVC: LS300. RED: DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut |
3D LUT Display | .Cube format |
3D LUT Down Stream | Loop out |
3DLUT 50/50 | Yes |
Monitoring Modes | Native / HLG / PQ / 3D LUT |
HDR Output Conversion | Log / HDR to HLG / PQ |
Video Input |
HDMI | 1 x HDMI 2.0 |
Locking port | Bracket provided; HDMI locking cable purchased separately |
SDI | 12G |
Wi-Fi | Wi-Fi 6E |
USB | 2 x USB-C 2.0/3.0 |
Bit Depth | 8/10-bit video |
Video Chroma Subsampling | 4:2:2 |
Video Output |
HDMI | 1 x HDMI (2.0) up to 4K60P |
Locking port | Optional |
SDI | 12G |
Wi-Fi | Wi-Fi 6E |
USB | 2 x USB-C 2.0/3.0 |
Bit Depth | 8/10-bit video |
Video Chroma Subsampling | 4:2:2 |
Metadata |
HDMI | RAW - white balance, exposure index, shutter speed/angle, Iris F stop, ISO, gamma, gamut |
Network |
Wi-Fi | Wi-Fi 6E |
USB | 2 x USB-C 3.0 |
Connectivity |
Bluetooth | Yes |
LANC | Yes |
Video Signal Conversion |
HDMI to SDI | Yes |
SDI to HDMI | Yes |
Audio In/Out |
HDMI | 8-channel, 24-bit |
SDI | 12-channel, 24-bit |
Analogue Audio Line In | 3.5mm headphone jack, 2-channel input |
Headphone Out | 3.5mm headphone jack, 2-channel |
Timecode |
Embedded | HDMI & SDI |
Time of day | Yes |
Reference / Genlock input | No |
LTC | No |
Wireless AirGlu RF Server and Client | Yes |
Wireless AirGlu BT Server | Yes |
Resolution & Frame Rates (Record, Monitor & Playback) |
RAW | Up to 6Kp60/8Kp30 |
4K DCI | 23.98/24/25/29.9/30/50/59.94/60p |
4K UHD | 23.98/24/25/29.9/30/50/59.94/60p |
2K DCI 2048 x 1080 | Yes |
1080p | 23.98/24/25/29.9/30/50/59.94/60/100/120p |
1080 PsF | Converted to P and looped out PsF |
1080i | 50/59.94/60i |
720p | 50/59.94/60p |
Supported Media |
CF Express | Atomos certified CF Express type B media |
USB | Atomos certified USB 3.0 media |
File System | ExFAT |
Codecs |
Apple ProRes RAW | ProRes RAW, ProRes RAW HQ |
Apple ProRes | LT, 422, 422 HQ |
Avid DNxHD | DNxHD 220x, 220, 145, 36 |
Avid DNxHR | LB, SQ, HQ, HQX |
H.265 | LQ, MQ, HQ, XQ in 8/10-bit, 4:2:2 and 4:2:0 |
Playback |
Playlist | Yes, create customer playlists from full or sub-clips |
Loop | Yes, with user-customizable in/out markers |
Apple ProRes RAW | Yes, recorded clips |
Apple ProRes | Yes, with linear PCM audio |
Avid DNx | Yes, with linear PCM audio |
H.265 | Yes |
Recording |
Pre-roll | ProRes, DNxHD only |
Timelapse | Yes |
Simultaneous Proxy Record | Yes |
On-screen Monitoring Tools |
Waveform | 3 sizes – adjustable opacity & brightness |
RGB parade | 3 sizes – adjustable opacity & brightness |
Vectorscope | 2 sizes – adjustable opacity & brightness |
1 x Zoom | Yes, 1:1 pixel mapping for 4K |
2 x Zoom | Yes |
Focus peaking | Colour selected / threshold setting / colour / mono / edges only |
Atomos False Color | Yes, with scale |
ARRI False Color | Yes |
EL ZONE | Yes |
Zebra | Yes, adjustable |
Isolate color channel | Blue Only |
Cine Frame Guides | Presets for 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3 |
Social Frame guides | Presets for 9:16, 1:1, 191:1, 4:5 |
Onion Skin | Yes |
Safe areas | Action and graphic |
Grid markers | 9 grid |
Anamorphic desqueeze | 1.25x, 1.33x, 1.5x, 1.6x, 1.65x, 1.79x, 1.8x, 2x |
Display Flip | Vertical only |
Onboard Signal Processing |
Pulldown removal | 24 / 25 / 30 pSF > 24 / 25 / 30p (2:2 pulldown), 60i > 24p (3:2 pulldown) |
4K UHD downscale for HD | Loop out - 4K UHD to FHD |
DCI Crop | Loop out - 17:9 to 16:9 crop |
Remote Control |
HDMI | Auto HDMI trigger, supported protocols - Canon, Sony, Atomos |
SDI | SDI trigger camera selectable |
Serial 2.5mm Jack | Calibration via optional USB to serial cable |
AirGlu BT | Yes |
AirGlu RF | Yes |
Camera to Cloud |
ATOMOSphere | Direct progressive upload supported (20GB free storage) |
Adobe Frame.io | Direct progressive upload supported (separate purchase) |
Dropbox | Direct progressive upload supported (separate purchase) |
What’s in the Box |

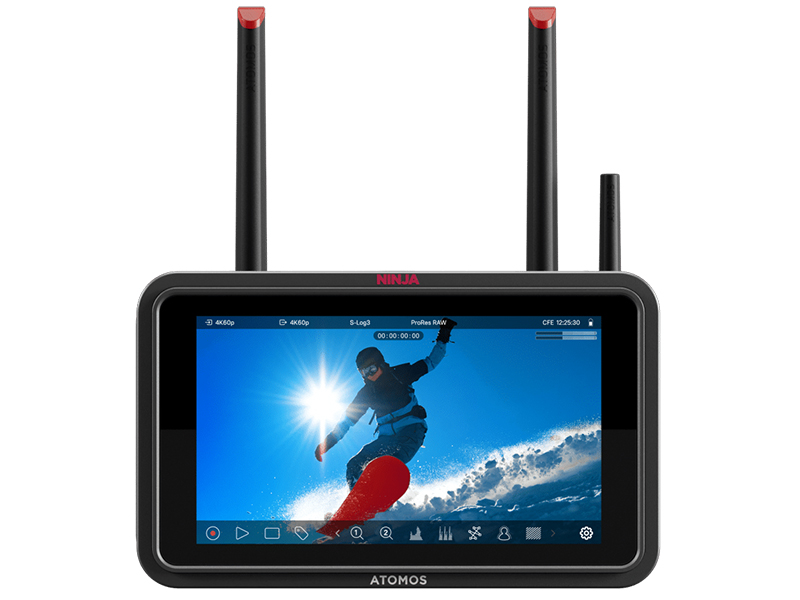

Accessories included | Ninja TX monitor-recorder, USB-C locking cable adaptor, HDMI locking cable adaptor, Wi-Fi antenna, 5x antenna tips (black, white, yellow, green, red), AirGlu antenna, antenna caps, USB-C locking cable (45cm), Quick Start Guide. |
Box dimensions (W x H x D mm) | 190mm x 130mm x 75mm |
Box weight | 665gms |
Warranty |
Standard | 1 year. Extended to 2 years on product registration. |
