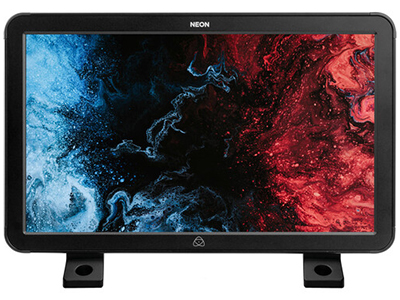

Atomos NEON 17" 4K HDR Monitor/Recorder

Code: ALL/18616
$6,150.00

The NEON 17 provides an unparalleled experience for SDR reference grade monitoring, HDR preview monitoring, and 4K recording (up to 60fps).

ENQUIRE NOW

Got a question about this product?
Send us a message

Out of Stock - Call for availability

Or get notified when back in stock

OK, we'll notify you when Atomos NEON 17" 4K HDR Monitor/Recorder is back in stock.

The NEON 17 provides an unparalleled experience for SDR reference grade monitoring, HDR preview monitoring, and 4K recording (up to 60fps). The 17-inch features a robust aluminium chassis, with a range of mounting points and a best-in-class, 1000nit display that is perfect for work on location, in the studio, and in post.

Key Features

  • 17" Display
  • HDMI/SDI I/O
  • 16:9 1920 x 1080
  • 4Kp60 Recording
  • 1,000,000:1 Dynamic Contrast
  • SDR / HDR Monitoring
  • LOG to PQ Conversion
  • 1200nit Peak HDR

Color Managed Display Pipeline

NEON provides a true Standard Dynamic Range (SDR) Broadcast Video Monitor (BVM) reference and includes tools to support accurate calibration to the Rec.709 standard with calibrated 100nit peak luminance and D65 white point. At the press of a button the NEON switches modes to provide a stunning High Dynamic Range (HDR) preview with support for both HLG and PQ formats.

Stunning Display Technology

The HD display of the NEON 17 features a best-in-class, stunningly bright panel with 0.002nit minimum luminance to 1000nit peak luminance over the whole screen, Super Wide Vision viewing angle (178 degrees >10%) and a matte finish to minimize glare and reflections. This ensures that the NEON is equally at home in the controlled environment of the edit suite or on location in the middle of the day.

NEON in Action

Patrick Wilcox of Los Angeles-based Colorways.tv utilizes the NEON to manage color pipeline on every production from set all the way through post-production. The device has proved to be so successful in this role that Colorways.tv now send a NEON to remote collaborators to ensure every team member sees the same color no matter their role.

Always the Same Color

Whether a project is SDR or HDR the NEON can be configured to match camera acquisition settings or defined delivery standards including Rec.709, Rec.2100 HLG and PQ (ST.2084). When monitoring with NEON color stays consistent at every stage of the production pipeline. This ensures that images look their absolute best with no unexpected surprises during the shoot, the edit, the grade, or quality control (QC).

Advanced Color and Conversion Options

NEON features native support for the DCI-P3 (P3) gamut, which encompasses the Rec.709 gamut. Images in BT.2020 gamut will display the up to P3, or can be transformed to P3 by using an appropriate LUT. The built-in Camera LOG settings allow for the transform of the camera output into a display color space. There are 8 LUT slots where a 3D LUT can be loaded to apply custom transformations for any HDR or SDR images. There’s additional control on the downstream feed to other devices, however NEON does not offer conversion between HDMI and SDI.

Full Control

The NEON series offers control via a robust, tactile Button Bar and AtomRemote an app. The Button Bar features back-illuminated buttons and an extendible control cable. Button Bar control options include the ability to select the input mode, choose the color space, apply 3D LUTs, and manage playback.

The AtomRemote app is available for macOS and iOS devices. Its easy-to-use interface provides access to more advanced settings such as camera gamma/gamut settings, as well as the ability to control recording, playback, and the loading of 3D LUTs.

Specifications
Dimensions (W x H x D mm) 413 x 253 x 71.4mm
Weight 4.5kg / 9.92lb
Rack height Optional 3rd party
Mount points Full ARRI compatible, 3 Left, 3 Right, 7 Top, 7 Bottom. Kensington lock on rear and lock down point on feet
VESA mount 100 x 100
Environmental
Ambient operating temperature Up to 40° C (1000nits Full screen limited to 25° C)
Construction and Control
Body Aluminium alloy chassis with ABS Polycarbonate back plate
Cooling Actively controlled fan and Heat Sink
Tally light On rear
Multi-function button Power / Pair remote
Master control unit (MCU) Yes, Field replaceable
Power
Compatible batteries AtomX NEON battery system by Core SWX
DC in connector 6 pin locking Push Pull connector
Display
Size 16.5"
Resolution 1920 x 1080
Viewing angle Super Wide Vision 178 Degrees >10%
Screen coating Matte Anti Glare & reflection
PPI 133
Bit depth 10Bit (8+2 FRC)
Backlight Type Dynamic Full Array Local Dimming (FALD) 128 Zones
Brightness (cdm2 / nits) Up to 1000 Full Screen and 1200nits Peak HDR
Black Level (cdm2 / nits) 0.002
Aspect ratio 16:9
De-interlace mode Yes, graphic burning protection
Color Gamut DCI-P3 (D65)
Calibration support Atomos Calibrator with Xrite i1 Display Pro / Plus (Retail)
Color Pipeline
Gamma Sony SLog / SLog2 / SLog3, Canon CLog / CLog2 / Clog3, Arri Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic Vlog, JVC JLog1, Red LogFilm / Log3G10 / Log3G12, FujiFilm Flog, PQ (HDR10), HLG, Nikon N-Log
Gamut Bt2020, DCI P3, PDCI p3 65, Sony SGamut / SGamut3 / SGamut3.cine / Canon Cinema / DCI P3 / DCI P3+ / BT2020, Panasonic V Gamut, Arri Alexa Wide Gamut, Rec709, JVC LS300, Red DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Display .Cube Format Display Only
Monitoring Modes SDR, 3D LUT, HDR
HDR output Conversion Log / HDR to HLG / PQ / Dolby Vision
Video Input
HDMI 1 x HDMI (2.0) 4k p60
HDMI RAW No - RAW not supported
SDI 2 x 12G SDI Backwards compatible Autodetection via included AtomX SDI module
SDI RAW No - RAW not supported
Bit Depth 8/10Bit Video
Video Chroma Subsampling 4:2:2
HDCP copy protection Not supported
Metadata
SDI File Name from Arri, RED
Video Output
HDMI 1 x HDMI (2.0) 4k p60
SDI loop out 1 x 12G SDI Backwards compatible Autodetection via included AtomX SDI module - level A and B selectable
SDI Play out 2 x 12G SDI Backwards compatible Autodetection AtomX SDI module - level A and B selectable
Video Chroma Subsampling 4:2:2
Bit Depth 10Bit Video / 12Bit RAW
Web Streaming
USB UVC Optional via Connect 4k
Audio In/Out
Audio Quality 24/48kHz
Audio Codec PCM
HDMI 8ch 24-Bit, input dependent
SDI 12ch 24-Bit, input dependent
Analogue Audio in 3.5mm 2ch.
Headphone out 3.5mm 2ch.
Timecode / Sync
Embedded HDMI and SDI
Time of day Yes, Time and Date
LTC via 3.5mm audio Jack input (Requires post processing)
Resolution and Frame Rates (Record, Monitor & Playback)
4k DCI 23.98/24/25/29.9/30/50/59.94/60p
4k UHD 23.98/24/25/29.9/30/50/59.94/60p
2K DCI 2046 x 1080 2k DCI: 23.98/24/25/29.9/30/50/59.94/60p
FHD 1920 x 1080 Progressive 23.98/24/25/29.9/30/50/59.94/60/100/120p
FHD 1920 x 1080 PsF Converted to P and looped out PsF
FHD 1920 x 1080 Interlaced 23.98/24/25/29.9/30/50/59.94/60i
1280 x 720p 50/59.94/60p
Recording CODEC
Apple ProRes LT, 422, 422HQ
Avid DNxHD 220x,220,145,36
Avid DNxHR LB, SQ, HQ, HQX.
Playback
Loop Yes, Entire clip
Apple ProRes Raw Yes, recorded clips
Apple ProRes Yes, with Linear PCM audio
Avid DNx Yes, with Linear PCM audio
Multi Input / Switching
SDI A/B toggle Via included AtomX SDI module
Supported media
Master Caddy I Not compatible
SSDmini Native Size and Fit
CFast II Supported cards via optional AtomX CFast Adapter
File Naming Unit Name - Scene/Shot/Take, Arri & RED via SDI
File System ExFAT
On screen tools
Waveform Yes, 3 size / Position
RGB parade Yes, 3 size / Position
Vector scope Yes, 2 size / Position
1 x Zoom Yes. 1:1 Pixel mapping for 4k
2 x Zoom Yes
Focus peaking Colour selected / threshold setting / colour / Mono / edges only
False colour Yes, with Scale
Zebra Yes, Adjustable
Isolate color channel Blue Only
Cine Frame Guides 2.4:1, 2.35:1, 1.9:1, 1.85:1, 4:3
Safe areas Action and Graphic
Anamorphic desqueeze 1.33x , 1.5x ,1.8x ,2x
Onboard Signal Processing
Pulldown Removal 24/25/30pSF > 24/25/30p (2:2 pulldown), 60i > 24p (3:2 pulldown)
4K UHD Downscale for HD Loop out - 4K UHD to FHD
DCI Crop Loop out - 17:9 to 16:9 Crop
Remote control
HDMI Auto HDMI Trigger, Supported Protocols - Canon, Sony, Atomos Open Standard
SDI SDI trigger camera selectable
Serial 2.5mm Jack LANC control and calibration via optional USB to serial cable
Bluetooth LE iOS Atom Remote and future Mac OS release
External Device Control
Serial 2.5mm Jack BBRCU Button Bar remote control - Future product release
Bluetooth LE iOS Atom Remote and future Mac OS release
Supported Applications
Video Codecs All applications with support for Apple ProRes and Avid DNX in .MOV wrapper
What’s in the box
Accessories included NEON 17 Monitor, NEON Master Control Unit, 2 x Feet (inc. mount screws x 2), NEON Quick Start Guide, 1 x Master Caddy II (inc. screws), 19V AC Power Adapter with mount cage, AtomX SDI Expansion Module, Monitor Protective Sheath, MCU Protective Sheath, Hex Wrench.
Optional extras HPRC Hard case
Warranty
Standard 1 year. Extended to 3 years on product registration
