Angelbird AV Pro CFexpress XT Memory Card

Code:

With Angelbird's AV PRO CFexpress XT 2.0 Type B memory cards you get precision recording of high bit-rate files throughout the entire capacity of the card. Expect detailed captures of up to 12K resolution in uncompressed RAW with write/read speeds that won’t drop below 1480 MB/s.

For purchasing information

Enquire Now

Overview
Specifications

High Bit-Rate Extended Performance CFexpress

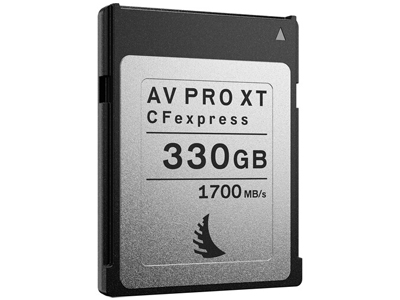

Designed for projects that require extended endurance and greater sustained write speeds, such as live broadcasts, single-take film productions, complex shoots, nature films, and documentary interviews, the 330GB AV Pro CFexpress XT Memory Card from Angelbird delivers precision recording for high bitrate files and uncompressed raw resolutions up to 12K. This card features a capacity of 330GB and uses the PCIe 3.0 x2 bus to deliver maximum read speeds of 1700 MB/s, maximum write speeds of 1500 MB/s, sustained read speeds of 1500 MB/s, and sustained write speeds of 1480 MB/s.

Features

Max Read Speed 1700 MB/s
Min Sustained Read Speed 1500 MB/s
CFexpress 2.0 Type B
Stable Stream™

Max Write Speed 1500 MB/s
Min Sustained Write Speed 1480 MB/s
Host Power Loss Protection
Advanced Thermal Management

For Photo, HD Video & RAW 4K to 12K
Y1 Processor Designed for RAW Video & Photo Content
Adaptive Power Management

Camera Models Currently Compatible With CFexpress 2.0 Type B

Canon EOS-1D X Mark III, EOS C500 Mark II, EOS C300 Mark III, EOS R5
Nikon Z 6, Z 7, D6
Panasonic LUMIX DC-S1, LUMIX DC-S1R

General
Capacity	330 GB \| 660 GB
Form Factor	CFexpress Type B
Dimensions	38,5 × 29,8 × 3,8 mm (1.52 × 1.17 × 0.15 in)
Weight	~ 7.0 g \| 0.25 oz
Performance
Max. Read Speed¹	1700 MB/s
Max. Write Speed¹	1500 MB/s
Sustained Read Speed¹	1500 MB/s
Sustained Write Speed¹	1480 MB/s
Reliability
MTBF	2,400,000 Hours
Data Reliability	Built-In EDC \| ECC Function
Certifications	RoHS, CE, FCC, REACH, KC, RCM
Electrical
DC Input Voltage	3.3 V ± 5 %
Power usage	Sleep: <50 mW Idle: 0.45 W Max: 2.40 W
Technical
Interface	CFexpress 2.0 \| Type B \| PCIe 3.0 ×2
Features	Temperature Sensor, TRIM, ECC, EMS Protection, Built-In Cache, SMART
Environmental
Shock resitance (operating)	50 G
Vibration resistance (operating)	15 G
Operating Temperature	-10 °C \| 70 °C
Storage Temperature	-20 °C \| 85 °C
Operating Humidity	5 % to 95 % Non-Condensing

¹ Speed based on internal testing. Actual transfer rates and capacity may vary depending on the product model, system hardware and other factors.

² To receive the full limited warranty, the product needs to be registered on the Angelbird Personal Service Portal within 30 days after purchase. If not registered within this period, the market-specific legal guarantee period comes into force.
