AJA’s HA5-12G allows users to convert an HDMI 2.0 input to two 12G-SDI single link outputs. It includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD SDI. HA5-12G supports up to 8-Channels of audio from the HDMI source or 2-Channel analog audio (RCA), with eight or two channels of digital embedded audio on 12G-SDI.

HA5-12G also supports Extended Display Identification Data (EDID) emulation which ensures the connected source continuously supplies custom preferred video formats on output.

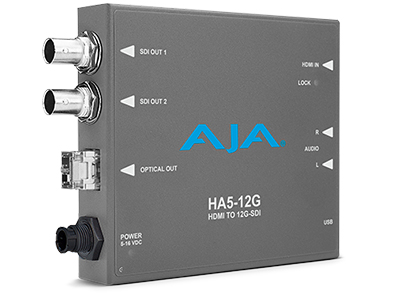

A HA5-12G-T Fiber SFP-equipped model is a single channel transmitter capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single Fiber link. HA5-12G-T ships with a FiberLC-1T-12G SFP installed and includes all functionality of the HA5-12G, with the added benefit of extending audio and video signals further.

Features

• Converts HDMI 2.0 to 12G-SDI, up to 4K 60p
• Supports up to 60p input at 4:4:4/4:2:2/4:2:0
• Supports 2SI (two sample interleave) 4K/UltraHD SDI mapping
• Two 12G-SDI outputs
• Embedded audio can be selected from the HDMI or Analog audio inputs
• Fiber SFP models available
• Configure via USB port and supplied Mini-Config software
• Uses 5-20 VDC power (DWP-U-R1 universal power supply included)
• Five year warranty
