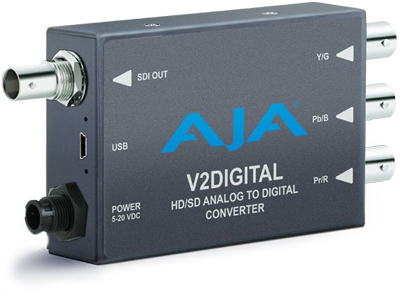

AJA Digital / Analog to SDI Mini-Converter

Code: BLO/AJA-V2DIGITAL
V2Digital is a high-quality, cost-effective analog to digital video converter that's perfect for facilities needing to integrate signal types. V2Digital provides AJA's high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions utilizing a full 10-bit data path and 2x oversampling to ensure a quality conversion all at an extraordinary price. Note: V2Digital does NOT up-convert or down-convert between SD and HD resolutions. Only digital to analog signal conversion is supported.

For purchasing information

Enquire Now

V2Digital is a high-quality, cost-effective analog to digital video converter that’s perfect for facilities needing to integrate signal types. V2Digital provides AJA’s high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions utilizing a full 10-bit data path and 2x oversampling to ensure a quality conversion all at an extraordinary price. V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs with a 4-line Adaptive Comb Filter providing high-quality decoding of composite sources. Configuration can be set by on unit DIP switches or remotely via AJA MiniConfig software control over USB.

Note: V2Digital does NOT up-convert or down-convert between SD and HD resolutions. Only digital to analog signal conversion is supported.

Breakthrough price performance

V2Digital provides AJA’s high-quality 10-bit conversion of component or composite analog video to SDI at either SD or HD resolutions all at an extraordinary price.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Quality - Guaranteed

All AJA Mini-Converters are covered by a five year warranty and AJA's advanced replacement policy. If a replacement is necessary, AJA will ship a new unit immediately without the need to send the original unit back first, ensuring you are up and running again as quickly as possible.

Extensive format support

V2Digital accepts YPbPr (SMPTE, EBU-N10), Betacam, or RGB component inputs or NTSC/PAL or Y/C (S-Video) composite inputs so no matter what signal comes your way, you’ll be ready to work with it.

Pristine image quality

V2Digital utilizes a 4-line Adaptive Comb Filter and a full 10-bit data path with 2x oversampling to provide the highest quality analog to digital conversion possible.

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Specifications

Formats 1080psf 23.98/24/25 Hz
1080i 50/59.94/60 Hz
720p 50/59.94/60 Hz
525i/625i 50/59.94/60 Hz
Inputs BNC:
HD component YPbPr, RGB (SMPTE-274)
SD component (Betacam, EBU-N10), composite, YC (S-Video)
Output 1 x BNC, HD/SD-SDI (SMPTE-259/292/296M)
1 x USB 2.0 (for connection to Mac or PC)
Dip Switches Control (Local/Remote)
Component/Composite (SD oOnly)
Format (YPbPr/YC or RGB)
Pedestal Present (on/off) (SD only)
Power 5 to 20 VDC, 3 watts
Dimensions 5.1 x 2.4 x 1.0" (13.0 x 6.1 x 2.5 cm)
Weight Not specified by manufacturer
