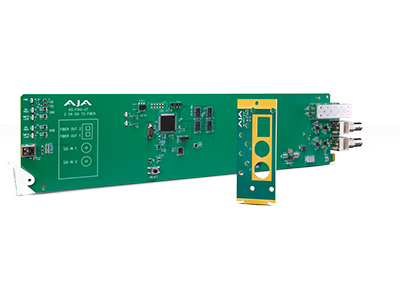

AJA 2-Channel 3G-SDI to Single Mode LC Fiber Transmitter for CWDM openGear Card
Code: BLO/AJA-OG-FiDO-2T-X
The OG-FiDO-2T-X is a state of the art, openGear compatible, 2-channel 3G-SDI to Fiber converter with CWDM SFP options, enabling 3G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The two 3G-SDI inputs are completely independent allowing different 3G-SDI rates to be carried on each channel.
For purchasing information
Enquire Now
Key Features
- Video Formats: 150 Mbps - 3 Gbps, format agnostic
- Inputs: 2x 3G-SDI BNC
- Outputs: 2x CWDM LC Fiber
- Monitor via openGear DashBoard
- Input Present and Input SMPTE Lock LEDs
- Automatic detection and reclocking
- 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
- Power: 2.5 watts
- Hot swap capable
- Compatible with OGX, OG3 and DFR-8321 openGear frames
The OG-FiDO-2T-X is a state of the art, openGear compatible, 2-channel 3G-SDI to Fiber converter with CWDM SFP options, enabling 3G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The two 3G-SDI inputs are completely independent allowing different 3G-SDI rates to be carried on each channel.
Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.
openGear Overview
For critical broadcast applications, AJA openGear compatible converter cards provide the highest levels of quality and reliability for use in openGear frames including the new AJA OG-X-FR. AJA offers cards for infrastructure, HDMI/SDI conversion, Fiber conversion and scaling. All new AJA openGear are DashBoard software compatible, allowing easy configuration and control.
openGear Compatibility
The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.
