AJA 12G-SDI Audio Embedder/Disembedder Mini Converter

Name: AJA 12G-SDI Audio Embedder/Disembedder Mini Converter
Brand: AJA
SKU: BLO/AJA-12G-AM
Availability: OutOfStock

Code: BLO/AJA-12G-AM

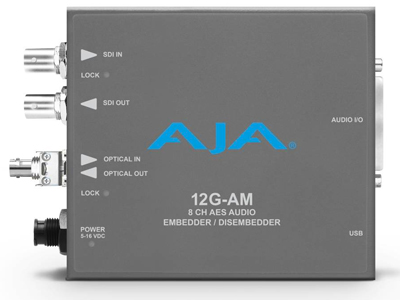

The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD.

For purchasing information

Enquire Now

Overview
Specifications

The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD.

AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable.

The 12G-AM automatically detects and configures the input video standard.

Fiber models also available. Fiber models offer single link fiber I/O including LC and ST options.

Key Features

12G-SDI 8-Channel AES Embedder/Disembedder
12G-SDI Input and Output up to 4K/UltraHD
8-channel balanced AES audio Embedder/Disembedder with LC and ST Fiber model options. (Please see models below).
AES audio Disembedding is always functional with four AES outputs
AES audio Embedding is user selectable on a channel pair basis, to either pass 12G-SDI input audio or embed input AES audio
Selectable AES audio levels
Automatically detects and configures the input video standard
Small form factor allows for a wide variety of installation locations
Supplied XLR breakout cable offers 8-channels In and 8-channels Out over eight XLR connectors
USB connectivity via AJA Mini-Config software
Dipswitch configuration
5-16 VDC Power
Five year warranty

Supplied Breakout Cable

The included breakout cable (12G-AM CBL DB25-8XLR) supports 2-channels of AES per XLR connector for 8-Channels of input and 8-Channels of output simultaneously.

An optional BNC breakout cable for AES (12G-AM CBL DB25-8BNC) is available seperately.

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.


Video Formats	(4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (2K) 2048x1080p 23.98, 24, 25, 29.97, 30,50, 59.94, 60 (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 (HD) 1920x1080i 50, 59.94, 60 (HD) 1280x720p 50, 59.94, 60* (SD) 625i 50 (SD) 525i 59.94 RGB and YCbCr, 4:4:4/4:2:2, 10-bit
Video Input Digital	1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K Single Link 3G-SDI Level A or B-DL, SMPTE 425
Video Output Digital	1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082 Single Link SD/HD/2K/UltraHD/4K Single Link 3G-SDI Level A or B-DL, SMPTE 425
Cable Equalization	(Belden 1694A coax) 12 Gbps, 65m 6 Gbps, 125m 3 Gbps, 190m 1.5 Gbps, 200m 270 Mbps, 405m
Video Path Delay	Video Out is a delayed, reclocked version of Video In, at same frame rate, etc. Video Out is undefined when no input. Video Latency, time measured between video input and video output connector: 12G = 3.2 µsec 6G = 3.2 µsec 3G level A = 3.2 µsec 3G level B-DL = 6.3 µsec HD (1.5 Gb) = 6.3 µsec SD (270 Mb) = 17.2 µsec
Audio Inputs and Outputs	AES PCM audio, 1x 25 pin D female connector on converter, 8-channels in, 8-channels out, selectable in pairs Breakout cable provided with 1x 25 pin D male connector: 4x XLR female input breakout connectors (AES3 110 ohm) 4x XLR male output breakout connectors (AES3 110 ohm)
Audio Data Formats	AES3-2003
Embedded Audio	SMPTE 272M (SD): 20-bit, 48 kHz synchronous SMPTE 299M (3G/HD): 24-bit, 48 kHz synchronous Incoming embedded audio can be passed, removed, or overridden Up to 16-channels supported
Embed Path Audio Latency	(Time measured between audio input and video output connector): 1500 µsec (SRC ON) 400 µsec (SRC OFF)
Disembed Path Audio Latency	(Time measured between video input and audio output connector): 210 µsec
User Interface	External DIP switch USB port used with Mini-Config software application to configure the device via PC/Mac
Size (w x d x h)	5.8" x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)
Weight	0.6 lb (0.3 kg)
Power	+5-16VDC, 10 watts, power supply required, included with purchase
Environment	Safe Operating Temperature: 0 to 40 C (32 to 104 F) Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F) Operating Relative Humidity: 10-90% noncondensing Operating Altitude: <3,000 meters (<10,000 feet)
