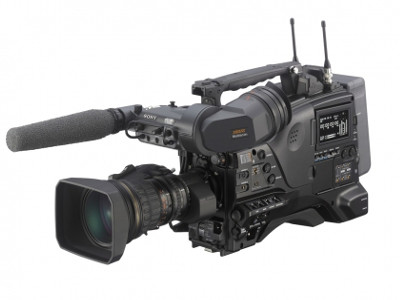

Sony PDW-850

Sony

Three 2/3-inch Power HAD FX CCD sensors XDCAM HD422 ultimate Professional Disc camcorder with best picture quality and easy-to-share and archive media.
For purchasing information

The reference acquisition tool for broadcast production is lighter, with less power requirements, and perfect for easy field operations and affordable live production.

The PDW-850 is equipped with the latest Power HAD FX CCD sensors and records HD and SD formats including MPEG HD 422 50 Mbps on to ready-to-archive and robust Professional Disc media with a high sensitivity of F12 at 50i and an excellent signal-to-noise ratio of 62dB. The PDW-850 features a high quality colour QHD 960 x 540 LCD side monitor, while also providing an HDVF interface to allow the latest optional colour and monochrome viewfinders to be attached. The ergonomically well balanced camcorder now fully supports the CBK-WA100 wireless adapter, enabling proxy recording and proxy/high resolution content transfer via Wi-Fi/3G/4G/LTE, as well as Planning Metadata management (with a future upgrade). Ethernet, USB interfaces and GPS are included. The camcorder weighs only 4.2 kg (body only), lighter than the PDW-700, and has lower power consumption compared to its predecessors. The PDW-850 can also be configured in a live production system by docking the CA-FB70 fibre adapter or CA-TX70 digital triax adapter CA-TX70 to the standard 50-pin interface.

High sensitivity with three 2/3-inch-type Power HAD FX CCDs

The PDW-850 is equipped with the latest generation three 2/3-inch type PowerHAD FX CCDs with 2.2-megapixels each. These CCD sensors offer the world’s top-end picture quality, with high sensitivity of F12 at 50i, a wider dynamic range and the elimination of motion artefacts. It also offers an excellent signal-to-noise ratio of 62dB with Noise Suppressor (NS) turned on.

Lighter and well balanced body with lower power consumption

The PDW-850 is designed to be ergonomically well balanced, providing a high level of mobility and comfort in various shooting situations. It weighs only 4.2 kg (body only), lighter than the PDW-F800 and PDW-700. The PDW-850 also offers lower power consumption compared to its predecessors, of only 37W when recording with a viewfinder.

Full live production integration with CA-FB70 and CA-TX70 adapters

The PDW-850 is fully enabled for integration in the live production environment. The standard 50-pin interface enables full integration with Camera Control Units (CCUs) via the CA-FB70 optical fibre adapter and CA-TX70 digital triax adapter. It allows for perfect integration with HSC and HDC Sony system cameras in outside broadcast or studio applications.

Full CBK-WA100 wireless adapter support via SDI and USB, plus GPS included

The camcorder provides DC power, HD-SDI and USB communication interface to the CBK-WA100 wireless adapter. The CBK-WA100 enables proxy recording on SD card, proxy and/or high resolution material transfer via 3G/4G/LTE/Wi-Fi, as well as remote control, and streaming of content to a tablet/smartphone as it is shot. These functions are provided in the free Content Browser Mobile (CBM) application available on Google Play and Apple Store. CBM also enables planning metadata and live logging metadata management (with a future upgrade). The camcorder also includes GPS functionality to help retrieve shooting locations and reduce the post-production time with a faster search in a large volume of files: the geo-tagging function allows you to conduct a simple search via a non-linear editing system, enabling better organisation for documentary and broadcast productions.

Improved slow shutter speeds and Slow and Quick at 1080p 50 Mbps

The shutter speed of the PDW-850 is selectable down to a 32-frame period (in 2-, 3-, 4-, 5-, 6-, 7-, 8-, 16- and 32-frame periods). During such a long frame period, electrical charges accumulate on the CCDs, which dramatically increases sensitivity. This helps camera operators to shoot in extremely dark environments. The Slow Shutter function also allows operators to use shutter speeds longer than the frame rate and to intentionally blur images when shooting a moving object, for increased shooting creativity. The camcorder enables Slow and Quick recording at 1080p 50 Mbps.

HD/SD-SDI and composite inputs

For pool-feed operations, the camcorder has built-in HD-SDI, SD-SDI and composite inputs.

High-quality 24-bit audio recording

The PDW-850 records uncompressed four-channel, 24-bit audio. It is also equipped with a range of microphone, line and AES-EBU audio interfaces.

Supported recording formats: HD/SD and interlace/progressive

One of the big appeals of the PDW-850 is its highly flexible multi-format recording capability. Users can select a recording format from HD to SD. The camcorder records MPEG HD 422 at 50 Mbps at 1080/59.94i/29/97p/50i/25p/23.98p and 720/59.94p/50p. It also records MPEG HD 420 at 35 Mbps and 25 Mbps at 1080/59.94i/29/97p/50i/25p/23.98p and 720/59.94p/50p. SD formats include MPEG IMX 50 Mbps and DVCAM 25 Mbps

Optional HDVF viewfinders

The camcorder has an HDVF interface to allow optional colour and monochrome viewfinders to be attached, such as the HDVF-20A and HDVF-200 2.0-inch monochrome viewfinders and the HDVF-C30WR 3.5-inch colour viewfinder. HDVF-C550W and HDVF-L750 studio viewfinders are also supported.

Wide choice of optional microphones

The PDW-850 is compatible with a variety of microphones. It is equipped with a 5-pin XLR input for stereo shotgun-type microphones. The camcorder can also accommodate Sony stereo digital wireless microphone receivers and a wide range of optional microphones.

High quality LCD side monitor

A large, easy-to-focus, high quality colour Quarter Full HD 960 x 540 LCD panel on the PDW-850 camcorder's side panel enables operators to instantly review recorded footage, as well as access the camera's set-up menus and view status indications such as four-channel audio meters, and the remaining time available on the disc and battery. It also enables advanced operations such as Thumbnail Search and Scene Selection.

State-of-the-art DSP LSI

The DSP (Digital Signal Processing) LSI is the heart of the image-processing device for the PDW-850 camcorder. In conjunction with the 16 bit A/D converter, it produces images captured by the CCD at maximum quality. In addition, white balance, white shading, and flare are digitally corrected, allowing for stable image correction. What's more, the PDW-850 provides a NS (Noise Suppression) mode to reduce high-frequency noise elements in a video signal using Sony's advanced digital processing technology. ALAC-2 processing radically reduces both horizontal and vertical chromatic aberration.

Interval Recording function

The PDW-850 offers an Interval Recording function, which intermittently records signals at pre-determined intervals. This is convenient for shooting over long periods of time, and also when creating pictures with special effects of extremely quick motion.

Picture Cache Recording function

The PDW-850 offers a Picture Cache Recording function that is especially useful during ENG applications. Up to 30 seconds of audio and video signals are buffered into the camcorder's memory before the Rec button is even pressed (when in Standby mode). This means that everything that happened 30 seconds before the Rec button was pressed will still be recorded onto the disc. What's more, this function works even before the disc is inserted in the drive – thereby helping to prevent the loss of any unexpected, yet important events.

Smooth gain control

A wide choice of gain and its easy-to-use control system is one remarkable feature of the PDW-850 camcorder. By setting the gain to the assignable switches, the user can easily access the desired gain. And the transition to each gain value is extremely smooth thus eliminating undesirable abrupt changes to the overall image.

Optical ND and CC Filters

The PDW-850 camcorder comes equipped with dual optical filter wheels, ND (Neutral Density) and CC (Colour Correction). The optical ND filter is controlled via a built-in ND filter wheel - Clear, 1/4ND, 1/16ND/ and 1/64ND. And with the CC filter wheel, the user can easily obtain the desired colour temperature by rotation to achieve either – 3200K/4300K/5600K/6300K.

4x Digital Extender function

The Digital Extender function of the PDW-850 enables images to be digitally 4x increased in size. Unlike lens extenders, the Digital Extender function performs this capability without any loss of image sensitivity, which is often referred to as the F-drop phenomenon. Use of the 4x Digital Extender function reduces image resolution by four.

Click here for a full list of specifications.
