Fujinon

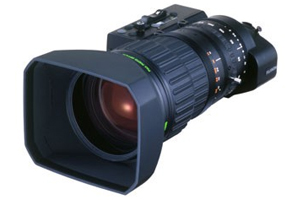

Fujinon HA42x13.5BERD HD Telephoto Lens

Item Code:

Stabilized Super Telephoto ENG Style lens for large venues or sporting events. Comes with lens support bracket.Digital servo remote control for full servo studio control, robotics, jibs, tower cams, teleconferencing and other applications where remote control of zoom, focus and iris via RS-232 serial data or traditional analog control is desired.Remote control of the 2X extender is possible with the optional model ECU-2A remote extender module.

RRP: 0   Save:

For purchasing information

This is a stabilized telephoto ENG style lens for large venues or sporting events. Its RS-232 port allows remote control for full servo studio control, robotics, jibs, tower cams, teleconferencing and other applications where remote control of zoom, focus and iris via RS-232 serial data or traditional analog control is desired.

Remote control of the 2X extender is possible with the optional model ECU-2A remote extender module.

Product Weight: 11.5 lbs w/o hood

Dimensions: 130 x 341.5 mm

There is no media for this item.

Specifications

Camera Format 2/3"
Focal Length (1X) 13.5 ~ 570 mm (2X) 27 ~ 1140 mm
Zoom Ratio 42X
Extender 2X
Maximum Relative Aperture 1:2.8 (13.5 ~ 307 mm) 1:5.2 (570 mm)
Minimum Object Distance from Image Plane 3.2m
M.O.D from Front of Lens 2.8m
Object Dimensions at M.O.D. 13.5mm 1888 x 1061mm 570mm 45 x 25mm
Angular Field of View (1X) 13.5 mm 39° 07' x 22°35' 570 mm 0° 58' x 0° 33' (2X) 27 mm 20° 08' x 11° 24' 1140 mm 0° 29' x 0° 16'
Filter Thread ø 127mm P=0.75
Features OS-Tech /DIGI POWER/QuickZoom/zoom Limit
Weight (w/o hood) 5.2 kg
Memo * ERD contain servos for zoom and focus
Dimensions 130 x 358.5mm
Stabilization System Optical shift system
Frequency of Compensation Approx. 1 to 10 Hz
Anti-vibration Range Approx. 20% of picture height
