Blackmagic

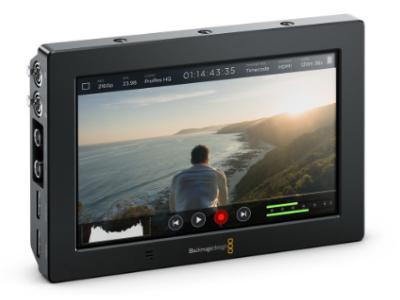

Blackmagic Video Assist 4K 7-inch Monitor Recorder

Item Code: NMA/AVIDAS74K

Video Assist 4K features a 7” high resolution screen, two high speed recorders for non-stop Ultra HD recording, XLR mic inputs, a built in speaker and more! The larger screen is 1920 x 1200, so you can see a full 16:9 image without the status bar covering the picture. Video Assist 4K features the latest high speed UHS-II SD card recorders and can record 1080 HD as well as Ultra HD up to 2160p30 on low cost, readily available SD cards!

RRP: 1350.0000   Save:

  • Qty:
  • Price:
    $1,160.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Now it’s easy to add professional monitoring and recording to any SDI or HDMI camera with Blackmagic Video Assist. You get a super bright touch screen display that’s much larger than the displays found on DSLR cameras, making it easier to accurately set focus and frame shots, plus you get high speed SD card recorders for HD or Ultra HD recording in incredible 10-bit 4:2:2 quality ProRes or DNxHD files. With a 7” HD display, Blackmagic Video Assist 4K works with any camera where you need better monitoring and more professional high quality file recording.

Shoot Better Video

See and capture every detail with confidence!

Whether it’s a wedding, an indie film or a television commercial, you need to make sure your images are perfectly sharp and captured at the highest possible quality no matter what type of camera you use. Blackmagic Video Assist works with everything from DSLR’s to older tape based camcorders, and even the latest digital film cameras. When you’re shooting a wedding, there’s only one chance to get it right and if you’re an indie filmmaker, you want your film to look as good as a Hollywood movie when projected at festivals. Blackmagic Video Assist helps you make sure every shot is in focus and gives you professional images with the same recording quality used by major motion pictures and prime time TV shows!

Blackmagic Video Assist 4K

7” high resolution monitor with Ultra HD recorder

Video Assist 4K features a 7” high resolution screen, two high speed recorders for non-stop Ultra HD recording, XLR mic inputs, a built in speaker and more! The larger screen is 1920 x 1200, so you can see a full 16:9 image without the status bar covering the picture. Video Assist 4K features the latest high speed UHS-II SD card recorders and can record 1080 HD as well as Ultra HD up to 2160p30 on low cost, readily available SD cards! You also get two extremely low noise professional analog mini XLR connections so you can bypass low quality DSLR audio and connect professional microphones directly.

Professional HD and Ultra HD Recorder

10-bit 4:2:2 ProRes and DNxHD recording

The 7” Video Assist 4K records HD and Ultra HD up to 2160p30. You get incredible looking, broadcast quality 10-bit, 4:2:2 ProRes or DNxHD files that work with all major editing software so you can start editing without having to convert them. Recording can be automatically triggered from SDI and HDMI so you can stay focussed on getting the shot, without having to worry about operating additional gear. The 7” Video Assist 4K also has two recorders so when one card is full, it automatically continues recording onto the next!

Records to High Speed SD Card

Low cost, high performance storage you can get anywhere

The 7” Video Assist 4K record HD video using standard SD memory cards or UltraHD on super high performance UHS-II cards. That means it’s now possible to record Ultra HD using low cost cards that cost less than $2 per GB. By connecting Video Assist to your existing camera, you can eliminate proprietary and expensive media such as XDCAM, P2 and SxS. UHS-II cards are fully backwards compatible with regular SD card slots so you can just insert them into your computer to start editing the media immediately.

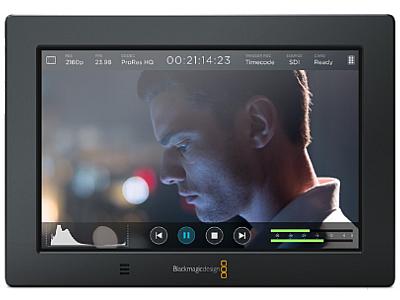

Better Monitoring

Super bright and clear display

Blackmagic Video Assist 4K has a bright 7” display so you don’t have to carry extra monitors and scopes on set. The large screens make it easy to see focus peaking and overlays such as histogram, audio meters, controls and more. You can mount it on cameras as a large crew monitor, hand it to the cinematographer for composing shots, or set it in front of the director to review each take. The screen has a wide 135° viewing angle, which means it’s easy to see, even when several crew members are watching. The image also auto rotates, so you can even rig it upside down!

High Quality Audio

Better audio recording than most cameras!

Blackmagic Video Assist 4K is also an extremely high quality audio recorder. You get two mini XLR inputs with 48V of phantom power so you can attach external microphones to record audio with Video Assist, instead of your camera. This totally eliminates the problems with auto gain controls on DLSR cameras. With an amazing equivalent input noise floor of -128dBV, you get high quality, crystal clear audio that sounds dramatically better than camera audio. Sound is recorded into the same file as the video so you don’t have to worry about AV sync between separate audio and video files.

Easy Touchscreen Controls

Use simple tap and swipe gestures to make adjustments

The built in monitor is also an interactive touchscreen that makes setting up the Blackmagic Video Assist incredibly intuitive. All of the functions are at your fingertips, allowing you to use simple tap and swipe gestures to display camera information, change settings and evaluate audio and video levels. The elegant heads up display let’s you change recording formats or view the current input frame rate, histogram, audio meters, timecode, and more, all while still keeping your eyes on the shot.

Portable All-In-One Design

Integrated on set monitoring and recording

Designed to be durable and light weight, the Video Assist 4K is incredibly small yet still incorporates large LCD monitors and touch screens. It includes high speed SD card recorders and space for two rechargeable batteries, which are hot swappable so you never have to stop shooting. You can use the mounting points to attach it to the top of a camera, or use the built in kick stand to set it up on a table. It’s even comfortable enough to hold in your hands so you can pass it around to the crew. The 7” Video Assist 4K also features a built in speaker, making it easy for everyone to review shots.

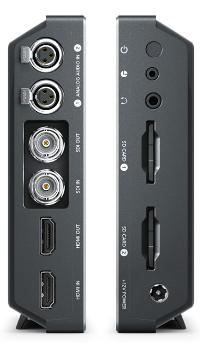

Professional Connections

Connect to professional cameras, camcorders and DSLR’s

The compact design of the Blackmagic Video Assist includes HDMI and 6G-SDI so you can connect them to virtually any DSLR, prosumer or professional camera. The loop thru output lets you monitor on larger displays or projectors. The 12V universal power supply gives you continuous operation. When you’re on location, two side by side LP-E6 batteries give you enough power for longer shoots! The Blackmagic Video Assist 4K also features a LANC connector and two mini XLR inputs with 48V of phantom power for connecting microphones, along with a built in speaker that automatically mutes while recording

Work with Professional Software

Record files that are ready for editing and grading

Blackmagic Video Assist captures ProRes and Avid DNxHD files which are the most widely accepted post production video formats in the world. If you are working with popular editing software such as DaVinci Resolve, Final Cut Pro X, Adobe Premiere Pro or Avid Media Composer, you can start editing and color correcting without having to transcode or convert the files. Since it comes bundled with DaVinci Resolve Lite, you can begin editing and creating looks on set. Even motion graphics and visual effects artists using software like Fusion and After Effects, or sound editors using ProTools can easily work with the files for fantastic collaboration.

Specifications

Connections
SDI Video Input 1 x SD/HD/Ultra HD 6G-SDI via BNC
SDI Video Output 1 x SD/HD/Ultra HD 6G-SDI via BNC
HDMI Video Input 1 x HDMI 2.0a connector
HDMI Video Output 1 x HDMI 2.0a connector
SDI Audio Input 2 channels embedded via 6G-SDI
SDI Audio Output 2 channels embedded via 6G-SDI
HDMI Audio Input 2 channels embedded via HDMI 2.0a
HDMI Audio Output 2 channels embedded via HDMI 2.0a
Analog Audio Input 2 x balanced mini XLR with phantom power
Analog Audio Output 1 x 3.5 mm stereo analog audio output jack
Remote Control 1 x 2.5mm LANC for Record Start and Stop
SD Interface Dual UHS-II SD slots
Storage Type Removable SDXC UHS-II, SDXC UHS-I and SDHC UHS-I SD cards. Supports DS, HS, SDR12, SDR25, DDR50, SDR50 and SDR104 SD cards
Recorder Control Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus
Screen Dimensions 7" 1200 x 1080 capacitive touchscreen LCD
Recorder Configuration Via the device's USB port or the device's user interface
Computer Interface 1 x Mini-B USB 2.0 connector for initial setup, software updates and Video Assist Utility software control
Codecs
Supports Apple ProRes 422 HQ, ProRes 422, ProRes LT, ProRes Proxy
SDI Video Standards
SD Format Support 525i59.94 NTSC, 625i50 PAL
HD Format Support 720p50, 59.94 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i50, 59.94
Ultra HD Format Support 2160p23.98, 24, 25, 29.97, 30
SDI Compliance SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084
SDI Metadata Support HD RP188
Audio Sampling Television standard sample rate of 48 kHz and 24-bit
Video Sampling 4:2:2 YUV
Color Precision 10-bit
Color Space REC 601, REC 709
Multiple Rate support SDI and HDMI switches between 270 Mb/s SD , 1.5 Gb/s HD , and 3.0 Gb/s 60P HD plus 6.0 Gb/s 60p Ultra HD
HDMI Video Standards
SD Format Support 525i29.97 NTSC, 625i25 PAL
HD Format Support 720p50, 59.94 1080p23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i50, 59.94
Ultra HD Format Support 2160p23.98, 24, 25, 29.97, 30
HDMI Color Precision 10-bit
Copy Protection HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Operating Systems
Required Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan or later.
Windows 8.1 or Windows 10.
Power Requirements
Required 2 x rechargeable LP-E6 Lithium-Ion batteries.
+12V universal power supply included with international socket adapters for all countries.
General
Operating Temperature 0° to 40° C (32° to 104° F)
Storage Temperature -21° to 45° C (-6° to 113° F)
Relative Humidity 0% to 90% non-condensing
What's Included Blackmagic Video Assist 4K
SD card with software and manual
+12V universal power supply included with international socket adapters for all countries.
Warranty 12 Month Limited Manufacturer’s Warranty. Excluding: batteries and cables which will be free from defects in materials and workmanship for a period of 12 months from the date of purchase.
Physical Specifications Blackmagic Video Assist 4K
