Blackmagic Ultimatte Smart Remote 4

Item Code: NMA/ULTMSMTREM4

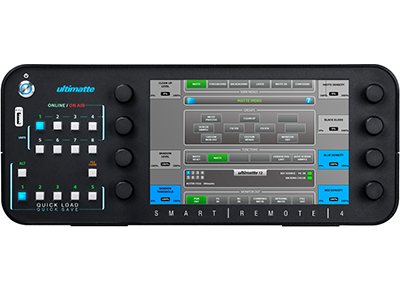

Control up to 8 different Ultimatte 12 units at the same time! Smart Remote 4 features a 10.1 inch touchscreen for navigating menus and controls, along with hard buttons.

RRP: 0   Save:

  • Qty:
  • Price:
    $5,445.00
    inc. GST

Found this item cheaper elsewhere? Let us know

Control up to 8 Ultimatte units via Ethernet with the Blackmagic Design Ultimatte Smart Remote 4. Its large display area, adjustable stand, and separate brightness controls for the display as well as the button layout make for an ergonomic, user-friendly experience. Furthermore, "Monitor Out Views" can be accessed from every menu for quick and easy operation of essential functions.

Control up to 8 Ultimatte units with one remote!

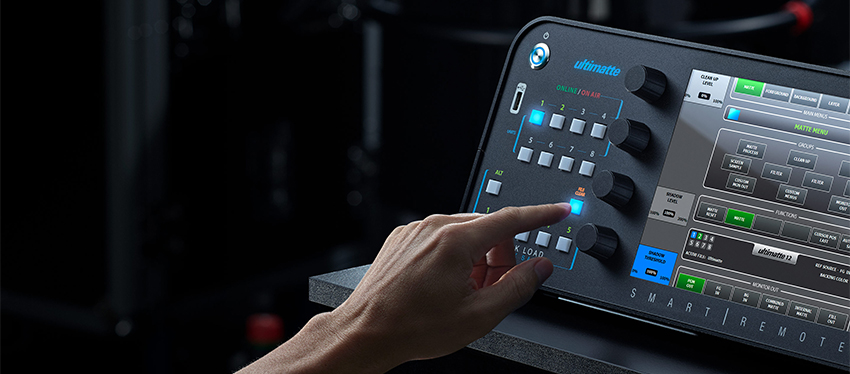

Ultimatte Smart Remote 4 is a touchscreen remote that connects via Ethernet to control Ultimatte 12. It can be used on the desktop or rack mounted with other equipment. Up to eight Ultimatte 12 units can be daisy chained together and connected to the same Smart Remote, so you don’t have to worry about adding a video router or hub! Smart Remote 4 features physical buttons so you can switch and control any attached Ultimatte 12. There are also buttons for quickly loading and saving presets, along with a touchscreen that gives you total control over every parameter. It’s easy to design your own custom control solutions for Ultimatte 12 because it uses a simple, open text based protocol. You can even Telnet into Ultimatte 12 over your network, so you can develop and test custom control solutions.

One Touch Keying

Automatic scene analysis for incredibly fast keys!

When it comes to live production, you need to work fast. Ultimatte 12 features one touch keying technology that analyzes a scene and automatically sets over a 100 parameters so you get great keys without having to do a lot of extra work! The first step is to ensure your scene is well lit and that the cameras are properly white balanced, then you simply activate the auto key and Ultimatte will do all the work for you! One touch keying is dramatically faster and helps you accurately pull a key with minimum effort. That leaves your operators free to focus on the overall program with less distractions, while Ultimatte 12 takes care of the rest!

Live Broadcast, Television and Film Production

Add augmented reality and virtual environments to any broadcast!

Whether you’re working in broadcast news, sports, traditional television and film production, or even magazine style entertainment programming, Ultimatte 12 has the quality for incredibly life-like composites that place your talent into any scene! Ultimatte 12 can work with both fixed cameras and static backgrounds, or automated virtual set systems. You can also use Ultimatte 12 to layer computer generated augmented reality objects into a scene, complete with realistic transparency that your talent can walk behind! Ultimatte 12 is also perfect for on set pre visualization in television and film production because it lets actors and directors see the virtual sets while they’re shooting against a green screen.

Broadcast Quality Keyer

Add an Ultimatte 12 to every camera for the highest quality keys!

When you’re working live and have multiple cameras shooting from different angles, it’s common for the green or blue screen to suffer from variations. The keyers built into live production switchers use the same keying parameters for all cameras, which complicates keying and image quality because each camera sees the green screen a little differently. Ultimatte 12 eliminates these problems with incredible new technology at an affordable price so it’s now possible to add keyers to every camera. That ensures you always get the best possible key! With the power of a dedicated keyer on every camera, Ultimatte 12 is perfect for live broadcast news, weather, sports, virtual studios and more!

Realistic Augmented Reality

Incredible new realistic layer mode for compositing colored "glass look" objects!

Adding translucent objects, such as colored or tinted glass and computer graphics, is virtually impossible with a traditional keyer. That’s because you can’t subtract a blue or green screen out of a semi-transparent colored object without changing the object’s original color. Now, with Ultimatte 12, you get a revolutionary new “realistic” layer compositing mode that lets you add tinted objects on top of the foreground image for a whole new generation of realistic translucent glass look broadcast graphics. This means that when you look through the object, or your talent walks behind it, the tinted colors are accurately preserved, making the shot look completely realistic!

Dedicated Compositing Inputs

Ultimatte 12 features 7 different input connections with loop outputs that are used to composite different elements together. These include foreground and background, along with holdout and garbage mattes, as well as additional layer inputs for superimposing additional images over the composited image. Ultimatte 12 even lets you use sources that are not synchronized when working with static shots!

Advanced Image Processing

New algorithms and expanded internal color space!

Ultimatte 12 features new, incredibly advanced image processing algorithms and a huge internal color space. It automatically generates internal mattes so different parts of the image can be processed separately based on the colors in each area. It’s like having the power of multiple Ultimatte keyers all working together on the same image! You get fine edge detail where it’s needed the most, like on hair, and smoother transitions between colors or other objects in the scene. Everything is handled by new math and sub pixel processing that’s designed for incredible quality and clarity in both HD and Ultra HD!

Incredible Color Fidelity

Faithfully reproduce bright colors that were impossible before!

With Ultimatte 12, you get new advanced flare, edge and transition processing so you can remove the background, without affecting the colors you want to keep! What this means is you’ll be able to retain and faithfully reproduce colors that are impossible on other keyers, such as a bright yellow dress in front of a green screen! Ultimatte 12 is smart enough to isolate and treat different parts of the image separately, while also keeping the color transitions between areas smooth. You get the highest quality compositing, so the final output looks photorealistic. Unlike other keyers, Ultimatte 12 delivers crisp clear images with vibrant colors that pop!

Shadows and Transparency

Key and composite images with shadows and transparency!

The improved flare algorithms in Ultimatte 12 can remove green tinting and spill from anything, which is one of the reasons why Ultimatte 12 creates true, realistic looking virtual environments! That also means you don’t have to worry about shadows or transparent objects with reflections. Ultimatte 12 automatically samples the colors, creates seamless mattes for walls, floors and other parts of the image, and then applies the necessary corrections. Shadows are properly mapped and composited onto the new background, spill is removed, and transparent objects are handled with perfection!

Advanced 12G-SDI

Designed for Ultra HD and
 compatible with everything!

The advanced 12G-SDI connections on Ultimatte 12 go far beyond those found on other keyers. Only 12G-SDI gives you high frame rate Ultra HD via a single BNC connection that also plugs into all of your regular HD equipment! That means Ultimatte 12 is compatible with virtually all SD, HD, 3G, 6G and 12G-SDI equipment, and supports all HD and Ultra HD formats up to 2160p60! You can use Ultimatte 12 with your HD cameras today and switch to Ultra HD when you’re ready!

Specifications

Connections

Software Updates 2 x USB 2.0 and 1 x USB 3.0 for firmware updates.
SVGA Output SVGA output allows for graphics to be viewed on an external VGA monitor.
Ethernet 2 x 10/100 Mbps Ethernet ports to connect to LAN networks for controlling Ultimatte 12.
RS-422 2 x for controlling Ultimatte 11.

Product Specifics

Rotary Knobs 8 x rotary knobs for adjusting parameters.
Unit ID Buttons 8 x buttons. Illuminated blue for active.
Unit ID LED Indicators Illuminated green for on line and red for on air.
Alt + Quick Load/Save Buttons Alt button plus 5 buttons for saving files into volatile RAM.
Quick Load/Save Buttons 5 x buttons for loading files stored in volatile RAM.
File Clear Button 1 x button for One Touch Keying.
Alt + File Clear Alt button plus file clear button for One Touch Keying using some user defined presets.
Customizable Menus 4 x menus for building your own menu with your most used controls.
LED Control User adjustable brightness control for LEDs.
Fan Speed Control User adjustable.

Software

Software Updates Software updates via USB to load Smart Remote utility.

Control

Touchscreen 10.1 inch 1280 x 800 colour display panel. Integrated capacitive touchscreen with onscreen controls for settings and navigating menus.

Operating Systems

Operating Systems Windows 10, 64-bit.

Power Requirements

Power Supply 100 - 240V AC.
Power Usage 24W

Physical Installation

Physical Installation Adjustable desk mounting option.

Environmental Specifications

Operating Temperature 0° to 35°C (32° to 95°F)
Storage Temperature -20° to 60° C (-4° to 140° F)
Relative Humidity 0% to 90% non-condensing.
