Blackmagic

Blackmagic Studio Fiber Rack Kit

Item Code: NMA/CINEARSUNWFRSUR

Rack mount up to 2 Blackmagic Studio Fiber Converters side by side with this lightweight kit that’s perfect for road cases or equipment racks.

RRP: 0   Save:

  • Qty:
  • Price:
    $205.00
    inc. GST

Found this item cheaper elsewhere? Let us know

What's In The Box?

  • Blackmagic Camera Fiber Converter
  • Mounting Bracket and screws for attaching to URSA Mini and URSA Broadcast cameras
  • 3x Short 12G SDI cables for SDI In and Out connectiong to URSA Mini and URSA Broadcast
  • SD card with software and manual

Rack mount up to 2 Blackmagic Studio Fiber Converters side by side with this lightweight kit that’s perfect for road cases or equipment racks.

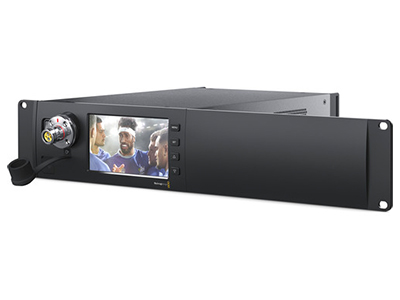

Blackmagic Studio Fiber Converter

Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.

SMPTE Fiber for Industrial Strength and Safety

Built in multi layer fail safe instantly cuts power to eliminate danger

Blackmagic fiber converters work with standard SMPTE 311M hybrid electrical and fiber optic cables with standard SMPTE 304 connectors on each end. These cables feature a 2 way fiber pair, data pair and power pair, along with a central strength member that gives it the needed durability for continuous use. Once plugged in, the Blackmagic Studio Fiber Converter automatically performs safety checks and then powers up, sending an industry standard 200 volts of power over the SMPTE cable for the camera and accessories. This means you can install cameras in remote locations without having to worry about power drops over long distances. Both the studio and camera converters at each end have dedicated micro controllers that continuously monitor power status. The converters communicate with each other to ensure that both a stable optical signal is present and that the power supply is operating within safe parameters. If a damaged cable or an earth leak is detected, the power is instantly shut down to eliminate any danger to personnel.

10G Ethernet for IP Video

Super fast, low latency ethernet link for video, audio and control!

The Blackmagic Studio Fiber Converters use IP video because the SMPTE fiber connection is an open standard 10G Ethernet link. That means all of your video and return feeds are IP video based using high end, lossless broadcast quality 10-bit video encoding and decoding. All other connections such as talkback, tally, camera control and lens control are also converted to low latency IP so you get incredibly reliable performance and high quality. Using IP video means the Blackmagic fiber converters are future proof and ready for customization using high speed Ethernet infrastructure in future!
