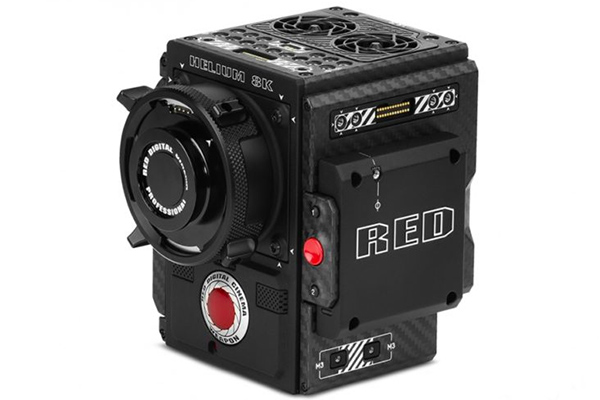

Red Epic-W Helium 8K

Powered by the HELIUM 8K® S35 sensor, and the recipient of the highest DxOMark score ever, RED EPIC-W® is capable of shooting 8K Full Format at up to 30 frames per second.

Available in either EF or PL mount

Key Features

  • HELIUM 35.4 Megapixel CMOS
  • 8K 2.4:1 resolution up to 30 fps
  • 16.5+ stops of dynamic range
  • 275 MB/s data speeds
  • REDCODE RAW + Apple ProRes or Avid DNxHR/HD
  • EF or PL mount options available
Resolution 8K
Mount Type PL Mount
EF Mount
Frame Rate Up to 240 fps at 2K FF
Up to 75 fps at 6K FF
Recording Media Red MiniMag
Recording Codecs ProRes, DNxHD, DnxHR, Redcode RAW
Sensor 29.90 mm x 15.77 mmSensor (slightly larger than Super-35mm)
Exposure Latitude 16.5 stops
from EI 250 to EI 12,800
Weight Body with Media Bay only:
1.5 kg/3.35 lbs
Power Input 11.5-17 V DC, Lemo 6-pin
User Keys 2 user keys on camera body, more available on Redmote, side handle & Red LCD
