Teradek Bolt 4K 750 Deluxe Kit

Code: KAY/53.10-2100
Transmit uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 ft. of range. The deluxe kit includes extra cables, adapters, carrying case and other essentials you need to get started.

For purchasing information

Enquire Now

What's In The Box?

  • 1x Bolt 750 12G-SDI/HDMI Wireless TX
  • 1x Bolt 750 12G-SDI/HDMI Wireless RX
  • 4x Bolt 4K Wire Cover Plate (Machined Anodized)
  • 1x Bolt 4K TX Mounting Bracket
  • 1x Lightstand Adapter 3/8in
  • 1x Hot Shoe Adaptor
  • 2x HDMI Male Type A (Full) - HDMI Male Type A (Full) 18in Cable
  • 2x 2pin Conn. to PowerTap - 18in Cable
  • 1x 2pin Conn. to 2pin Conn. 18in Cable
  • 1x USB Male Type A (Full) - USB Male Type B (Micro) -3ft Cable
  • 2x SDI 12G BNC to BNC Cable Length: 18in / 46cm
  • 1x Teradek Case XL
  • 1x PSU 2pin Conn. to 30W AC Adapter (Int) - 6ft Cable

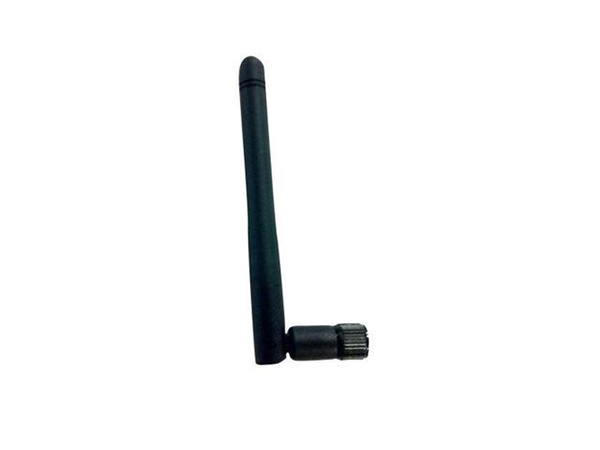

  • 9x Antenna 2dBi WIFI 2.4/5.8GHz (Small Antenna)
  • 1x Teradek Standard Terms and Conditions
  • 1x Quickstart Guide - Bolt 4K 750/1500
  • 1x Wooden Camera - Ultra Arm Monitor Mount (1/4-20 to 3/8-16, 5in)
  • Bolt 4K is a revolution in wireless video featuring the best reliability and image quality in the industry.

    The deluxe kit includes extra cables, adapters, carrying case and other essentials you need to get started.

    The Teradek Bolt 4K 750 is a wireless transmitter and receiver set designed to transmit and receive signals up to 750' away. This extender kit allows you to transmit uncompressed 1080p and 2160p video at 60 fps, with less than 1 ms of delay. The True HDR compliance means the Bolt 4K is compatible with HLG, PQ, and HDR-10 standards for a convenient HDR workflow. The included transmitter can send video signals to six separate receivers, and is compatible with all the Bolt 4K models. It features 12G-SDI, HDMI 2.0, and a 12G-SDI loop-output. The receiver unit features two 12G-SDI and an HDMI 2.0 connector. The wireless link allows you to send Start/Stop flags, timecode, and other ancillary data. The receiver allows you to upload and apply custom 3D LUTs for managing each take separately. The Bolt App allows you to remotely pair units and configure settings via your iOS smartphone or tablet Bluetooth signals.

    Features

    Real-Time 4K Wireless Video

    Transmit uncompressed video in 1080p and 2160p at 60FPS with less than 1ms of delay. Up to 750 ft. of range.

    True HDR Color

    Bolt 4K is compliant with the HLG, PQ, and HDR-10 standards, making it an invaluable tool on set for HDR workflows.

    Rock-Solid Reliability

    Bolt 4K features 8x the wireless performance of previous Bolt generations, ensuring video is delivered in even the toughest of RF environments.

    Universal Compatibility

    Each transmitter can send video to up to 6 receivers. Compatible with any model in the Bolt 4K line.

    Inputs/Outputs

    Transmitter: 1x 12G-SDI, 1x HDMI 2.0, 1x 12G-SDI looping output.
    Receiver: 2x 12G-SDI, 1x HDMI 2.0

    Battery Plates

    Optional Gold or V-mount battery plate with pass-through power available on both TX & RX.

    Camera Metadata

    Send start / stop flags, timecode, and other ancillary data over the wireless link. On the receiver side, upload and apply custom 3D LUTs to monitor each take with the look you’re after.

    Bolt App for iOS

    Remotely pair units, configure settings, and utilize all of Bolt 4K’s features from any iOS smartphone or tablet. The Bolt App uses Bolt 4K’s integrated Bluetooth to give you all of its settings in the palm of your hand.

    Specifications

    Wireless

    Wireless Range 750' / 228.6 m (Line-of-Sight)
    # of Channels 2
    Frequency Range Non-DFS Frequencies
    5.19 to 5.23 GHz
    5.75 to 5.79 GHz
    DFS Frequencies
    5.27 to 5.67 GHz
    RF Power 19 dBm
    Wi-Fi 5 GHz
    Wireless Video Compression Compressed

    Interfaces

    Transmitter Antenna Ports 4 x RP-SMA
    Receiver Antenna Ports 5 x RP-SMA
    Transmitter Video Connectors 1 x BNC (12G-SDI) Input
    1 x HDMI (HDMI 1.0) Input
    1 x BNC (12G-SDI) Output
    Receiver Video Connectors 2 x BNC (12G-SDI) Output
    1 x HDMI (HDMI 1.0) Output
    Transmitter Other I/O 1 x USB Micro-B
    Receiver Other I/O 1 x USB (Unspecified Type)
    Embedded Audio HDMI: 2-Channel
    SDI: 2-Channel

    Format Support

    Broadcast System Compatibility NTSC, PAL
    Video Format HDMI:
    1080p/1080PsF/1080i/720p/576p/576i/480p/480i/DCI 4K 4:4:4 RGB 8-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
    SDI/BNC:
    1080p/1080PsF/1080i/720p/576p/480p/480i/DCI 4K 4:2:2 YCC 10-Bit at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
    Audio Format 2-Channel 24-Bit 48 kHz
    Video Standard Compliance SMPTE ST-2082-1
    Timecode Yes
    LUT Support 17 x 17 x 17 3D

    Power

    Transmitter Power Connector 1 x 2-Pin LEMO (6 to 28 VDC) Input
    Receiver Power Connector 1 x 2-Pin LEMO (6 to 28 VDC) Input
    Transmitter Power Consumption  (20 W)
    Receiver Power Consumption  (18 W)

    General

    Transmitter Mounting 1 x 1/4"-20 Female
    1 x M3 Female
    Receiver Mounting 1 x 1/4"-20 Female
    1 x M3 Female
    Materials Aluminum, PCB
    Transmitter Dimensions 5.2 x 3.58 x 1.06" / 132 x 91 x 27 mm
    Receiver Dimensions 5.47 x 4.41 x 1.06" / 139 x 112 x 27 mm
    Transmitter Weight 12.6 oz / 357 g
    Receiver Weight 15.2 oz / 431 g
