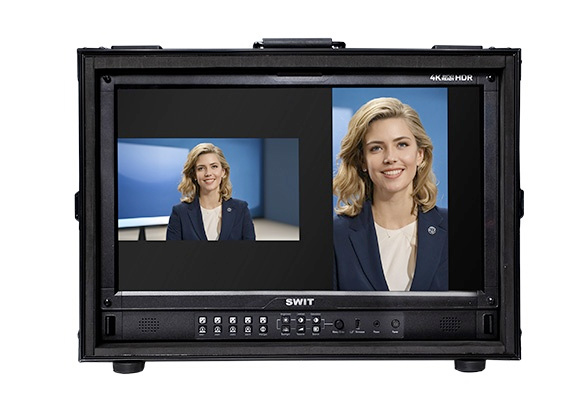

SWIT FM-215HDR 21.5" 12G-SDI HDR Field Monitor

Code: SWI/FM-215HDR
$3,060.00

The FM-215HDR is a 21.5-inch 4K monitor with 12G-SDI input, high brightness HDR, suitable for film sets or live streaming productions. It comes with a flight case, screen protector, and can be conveniently installed on a C-stand for field video productions.

ENQUIRE NOW

Got a question about this product?
Send us a message

Low Stock

Limited Stock - Call for availability

21.5” Field Production Monitor

4K Inputs, 1000 nits, HDR, Multi-view

The FM-215HDR is a 21.5-inch 4K monitor with 12G-SDI input, high brightness HDR, suitable for film sets or live streaming productions. It comes with a flight case, screen protector, and can be conveniently installed on a C-stand for field video productions.

1000 nits Sunlight View HDR

The monitor features an advanced Quantum Dot LED (QLED) panel with a 1000 nits high brightness backlight, making it suitable for outdoor use in sunlight. It supports PQ/HLG/S-log3 HDR monitoring.

All 4K Input Interfaces

The FM-215HDR supports various 4K inputs, including:

  • 12G-SDI 4K in and out
  • 4× 3G-SDI Quadlink 4K input
  • HDMI® 2.0 4K input

Multiview Display Mode

It supports a quadview display of 4x input videos of mixed formats, or Pic-by-Pic or Pic-in-Pic view for any 2x inputs, and vertical (Cropped) display mode for any 2x inputs. You can independently select HDR/SDR gamma and color gamut for each input.

H/V Multi-platform Livestreaming View

Display regular horizontal view and cropped vertical view side by side simultaneously for multi-platform livestreaming productions.

Comes with Flight Case

The FM-215HDR monitor is shipped with a strong aluminum flight case for all-around protection on film sets.

Equipped with Screen Protector

It includes an acrylic screen protector with high transparency and anti-reflection.

2× Top Cheese Boards

On the top of the flight case, 2× cheese boards are provided to install accessories like wireless video receivers, with multiple 1/4” and 3/8” screw threads.

Optional VESA to C-stand Bracket

The monitor has a standard 10×10 VESA mount and provides a VESA to 5/8” baby-pin C-stand / Light stand adaptor bracket (optional purchased accessory).

Specifications

LCD Performance

Size

21.5 inches

Display area

476×268mm

Resolution

1920×1080

Aspect ratio

16:9

Brightness

1000nits

Contrast

1000:1

Color depth

10-bit

Signal process

18-bit

Viewing angle

178°(H) /178°(V)

Input

BNC ×1

12G/6G/3G/HD/SD-SDI input

BNC ×3

3G/HD/SD-SDI input

HDMI® ×1

HDMI® 2.0 input

RS485 ×1

TSL 3.1/4.0 UMD input

RS485 ×1

GPI (Tally) input

RJ45 ×1

1000M Ethernet input for Webserver IP control

Output

BNC ×1

12G/6G/3G/HD/SD-SDI loop output

BNC×1

3G/HD/SD-SDI loop output

RS485 ×1

TSL 3.1/4.0 UMD output

Analog audio

3.5mm headphone and speaker

Video Format

SDI 1

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
2048×1080i (50 / 59.94 / 60)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)

SDI 2/3/4

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
1080psf (30 / 29.97 / 25 / 24 / 23.98)
720p (60 / 59.94 / 50)
480i (59.94), 576I (50)

Quad Link 4K (Each channel)

2048×1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)

HDMI®

4096×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
3840×2160p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98)
1080i (60 / 59.94 / 50)
720p (60 / 59.94 / 50)

General

Input voltage

DC 12V-17V, AC 100-240V, 50/60Hz

Power consumption

60W

Working temperature

0°C~+50°C

Working humidity

10%~90%

Storage temperature

-15°C~+60°C

Storage humidity

10%~90%

Dimensions

570×405×260mm (with case)

Net weight (main body)

14kg (with case)
